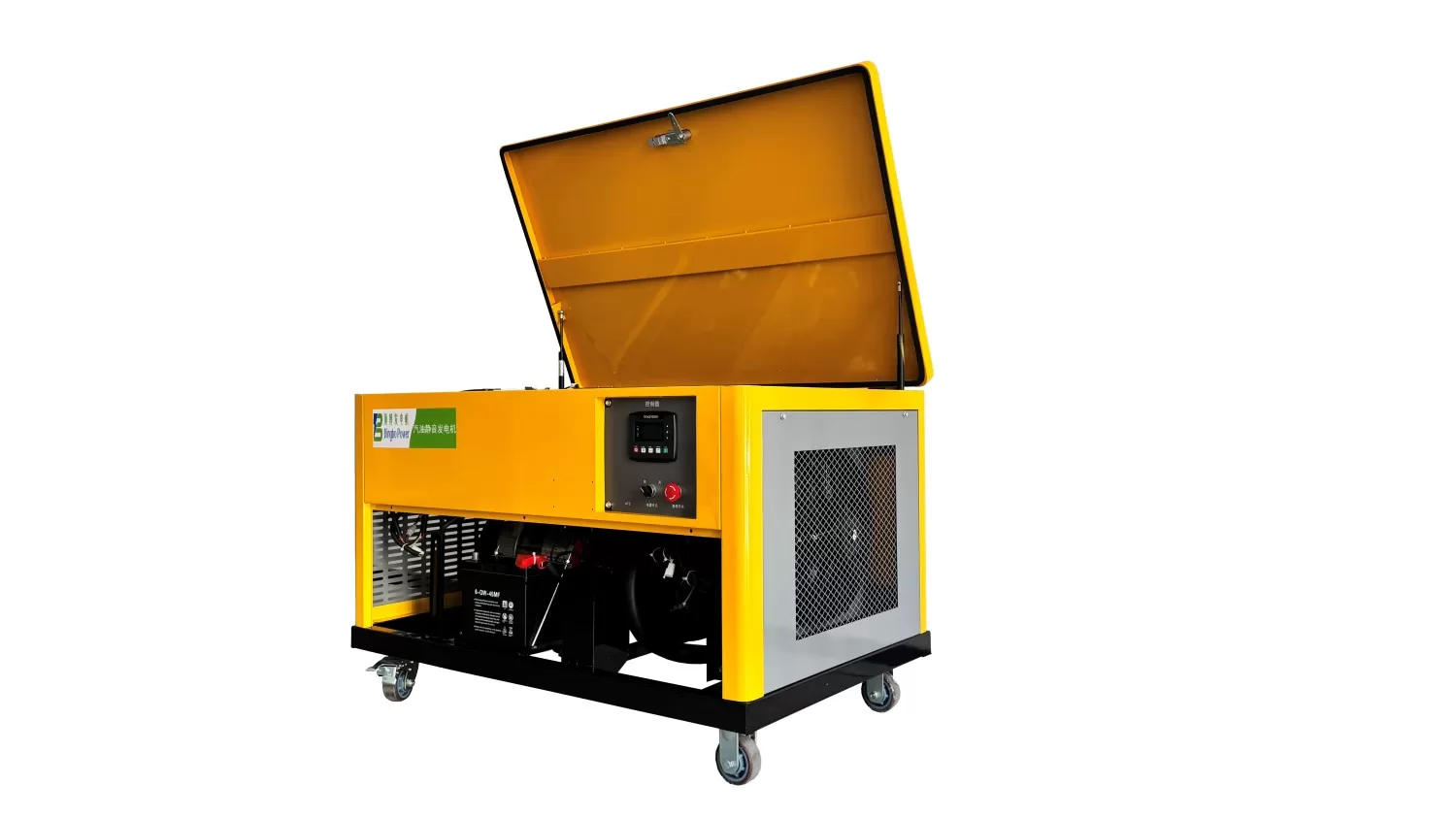

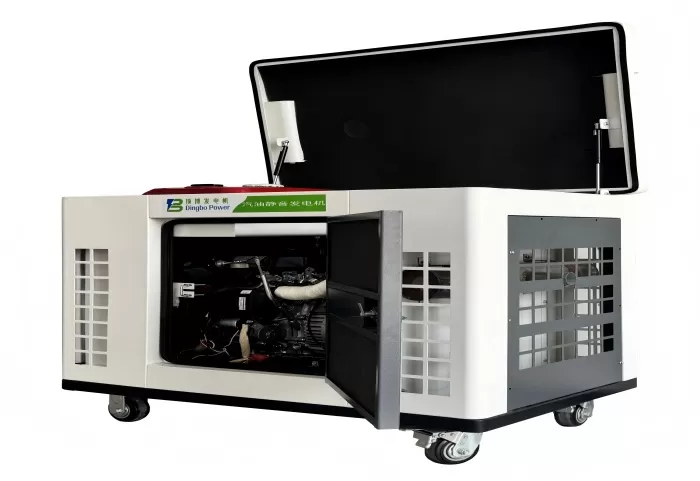

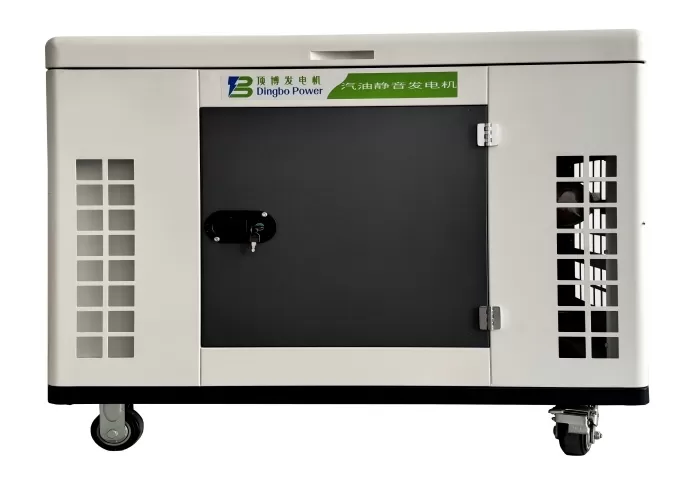

20KW Silent Portable Water-Cooled Gasoline Generator

Model: DB25000W

Type: Silent type

Rated Power Output: 20KW

Rated Voltage: 220/380V

Phase:Single Phase/Three Phase

Rated Frequency: 50Hz

Nosie Level: 75 dBA/7m

Starting Type: Electric Start

For more types, please contact us.

Inquire Now Next Product Download Datasheet

1. Inline 4-cylinder, 4-stroke, water-cooled engine paired with intelligent controller ensures stable generator operation.

2. The 100% copper-wound alternator stator with AVR (automatic voltage regulation) offers strong power, reliable excitation and convenient maintenance.

3.The reinforced steel frame design makes the generator sturdy and durable and the standard casters significantly enhance the generator’s mobility.

4. The generator set has overload circuit breaker protection and low-oil shutdown protection.

5 Acoustic-optimized muffler can reduce the noise effectively.

Technical specifications:

Genset Model		DB25000W
Alternator	Excitation Type	AVR, Brush-type Self-excitation
	Prime Power (KW)	20
	Standby Power (KW)	21
	Rated Voltage(V)	220/380
	Frequency (Hz)	50
	Phase	Single Phase/Three Phase
	Power Factor (COSφ)	1/0.8
	Insulation Class	F
Engine	Engine Model	465Q
	Bore*Stroke (MM)	65*78
	Displacement (CC)	998
	Engine Type	4 Cylinder, water-cooled
	Fuel Type	Gasoline
	Oil Capacity (L)	2.8
	Starting Type	Electric Start
Genset	Fuel Tank (L)	30
	Noise Level (dBA/7m)	75
	Dimensions MM)	1160725850
	Weight (KG)	290

Optional equipment : Automatic Transfer Switch(ATS)

ATS automatic control panel include mains power indicator, generator operation indicator, auto-mode status indicator and fault alarm indicator.

When the ATS detects that the mains power is cut off, the generator set automatically self-starts and the ATS closes generator circuit (loads powered by generator). When ATS detects mains recovery, generator enters cooldown shutdown (30-60 min delay) and ATS opens generator circuit (loads transferred to mains).
