How To Choose Lubrication Oil For Diesel Generator Set

Oct. 15, 2019


Lubrication oil

Lubrication oil.png


Function

General

 *Lower the friction    *Keep clean   *Rust protection  *Cooling    *Seal




Specific


  *Prevent deposits    * Prevent cylinder polishing   * Effective lubrication at high temp



 Effective lubrication

  at low temp start-up



 Prevent carbonised coal in:

- Piston ring grooves

- Piston skirt

- Valves

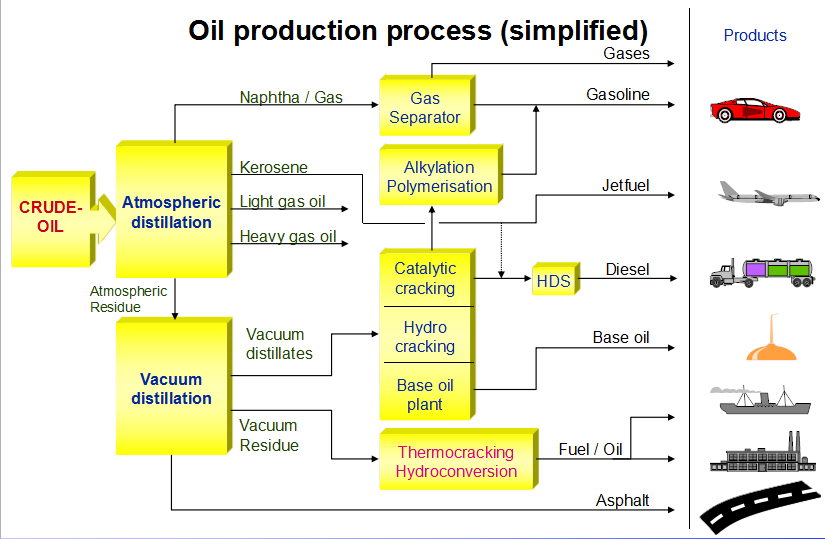

Oil production process (simplified)


Oil production process.jpg





Basic oil and Additive

Basic oil can be of mineral or synthetic type.

Additive gives the performance.

Example of additives



Antioxidants

Anti wear additives

Detergents

Dispersant

Corrosion inhibitor



Synthetic oils

Advantages

Good performance at high and low temperature

High viscosity index




Synthetic oil.jpg



Disadvantages

Expensive

Can affect the seals in the engine



Viscosity

Measurement of fluidity

Dependent of the temperature

Viscosity classes according to SAE standards

Singlegrade ”winter oil” SAE 10W (W=winter)
Singlegrade ”summer oil” SAE 40

Multigrade ”all year around oil” SAE 10W-40







SAE-no for engine oils


SAE-no for engine oils.jpg



Specifications and Quality classification





API (American Petroleum Institute)



CCMC (Committee of Common Market Constructors)   European system.



ACEA (Association des Constructeures d´Automobiles)   replaces CCMC as from 1996-01-01



Lubrication oil service classes



Diesel engines

API CE, CF, CF-4, CG-4



CCMC D4, D5

CCMC PD-2 (Passenger car)



ACEA B1, B2, B3 (Passenger car)

ACEA E1, E2





Petrol engines



API SG, SH, SJ

CCMC G4, G5

ACEA A1, A2, A3





Difference between American and European demands







What happens to the oil during the combustion process



Piston ring and Cylinder liner wear

Piston ring wear

Poor oil quality

Poor fuel quality (high sulphur content)

Too long oil change intervals

Malfunction in the exhaust system, cooling system, inlet system





Cylinder liner polishing and glazing



Use of a poor oil quality

Low load running

Long idling periods





Carbon built up in piston ring grooves



Corrosion problems





Oil drain intervals



Alterations will occur. - Please see owners manual for each engine type.





Lubrication oil analysis



TBN  -  Total Base Number - the ability for the engine oil to neutralise acids

VISCOSITY

WEAR METALS



Fe-Iron:  Cylinder liner, camshaft,tappets,valve guides,crankshaft

PB-Lead:  Big end,Crankshaft bearing shells (all types of sliding bearings)

Cu-Copper:  Same as above

Sn-Tin:  Surface layer of sliding bearings

Cr-Chrome:  Piston rings, valve rods

Al-Aluminium: Pistons

Ni-Nickel:  The layer between the surface and copper on sliding bearing

Si-Silicone:  Sand, dirt etc

Insolubles:  Carbonised oil, Combustion residues, soot

H2O-Water:  Coolant water, Condensation water, water via blow-by

Fuel dilution: Incomplete combustion, leaking injectors





General effect of oil change interval




A

 Good oil quality

 Low sulphur content in fuel

 Efficient filtration

 Engine air supply

 Good operating duty





B

 Poor oil quality

 High sulphur content in fuel

 Long idling periods

 High frequency of cold start
