Model No.:DB-AXC-200A
Welding Type: Manual welding//Argon arc Welding
No Load Voltage: 65V
Welding Voltage: 28V
Welding Current: 0-200A
Duty Cycle: 60%
Electrode Diameter: 2.5mm-3.2mm
Noise Level: 78 dBA/7m
For more types, please contact us.
Dual output capability: The same unit provides both single-phase and three-phase AC output at identical power ratings. The AC output is suitable for grinding, cutting, lighting, and other applications.
Superior welding performance:
Automatic voltage fluctuation compensation.
Automatic arc force compensation.
Stable welding current.
Excellent dynamic characteristics with fast response.
Minimal spatter and strong penetration.
Continuously and precisely adjustable welding current.
Wide applicability: Ideal for use in power utilities, municipal projects, the chemical industry, water supply and the construction of gas pipelines and so on.
Quiet operation: Equipped with a soundproof enclosure for low noise emission.
| Model No. | DB-AXC-200A | |
| Alternator | Rated Power (W) | 7000 |
| Max. Power(W) | 8000 | |
| Rated Speed(r/min) | 3000 | |
| Rated Frequency(Hz) | 50 | |
| Rated Voltage(V) | 230/400 | |
| Phase | Single Phase/Three Phase | |
| Engine | Engine Model | 195 |
| Engine Type | 1 Cylinder, 4-Stroke, Air-cooled, vertical type | |
| Bore x Stroke (MM) | 95x75 | |
| Displacement(L) | 0.531 | |
| Fuel consumption(L/ h) | 2.4 | |
| Oil capacity(L) | 1.7 | |
| Ignition system | Compression ignition | |
| Starting Type | Electric Start | |
| Fuel Type | Diesel：0#(Summer)-10#(Winter)-35#(severe cold) | |
| Welding machine | Welding Type | Manual Welding/Argon arc Welding |
| Welding no-load voltage(V) | 65 | |
| Welding Voltage(V) | 28 | |
| Welding current (A) | 0-200 | |
| Duty Cycle(%) | 60 | |
| Electrode Diameter(mm) | 2.5-3.2 | |
| Auxiliary configuration | Fuel Tank capacity (L) | 20 |
| Continuous Working Hours (h) | 8 | |
| Battery capcity | 12V-32AH maintenance-free battery | |
| Engine oil Alarm | √ | |
| Fuel indicator | √ | |
| Noise Level(dBA/7meters) | 78 | |
| Dimensions(MM) | 1200X650X930 | |
| Weight (KG) | 228 | |

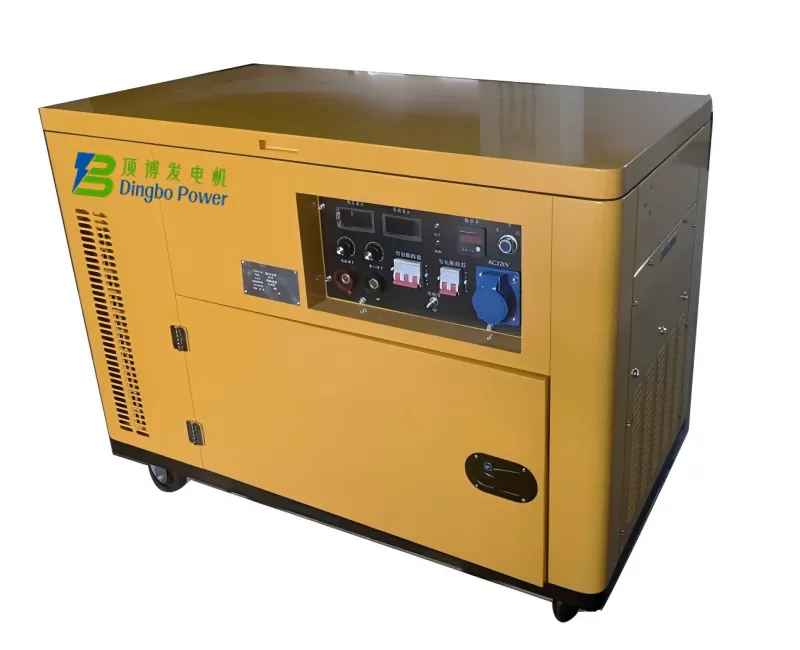

With a 60% duty cycle, Dingbo Power DB-AXC-200A silent diesel welder generators use adjustable amperage from 0 to 200 Amp for steady welding. They are suitable for applications such as pipeline welding, construction, maintenance, and repairs.
