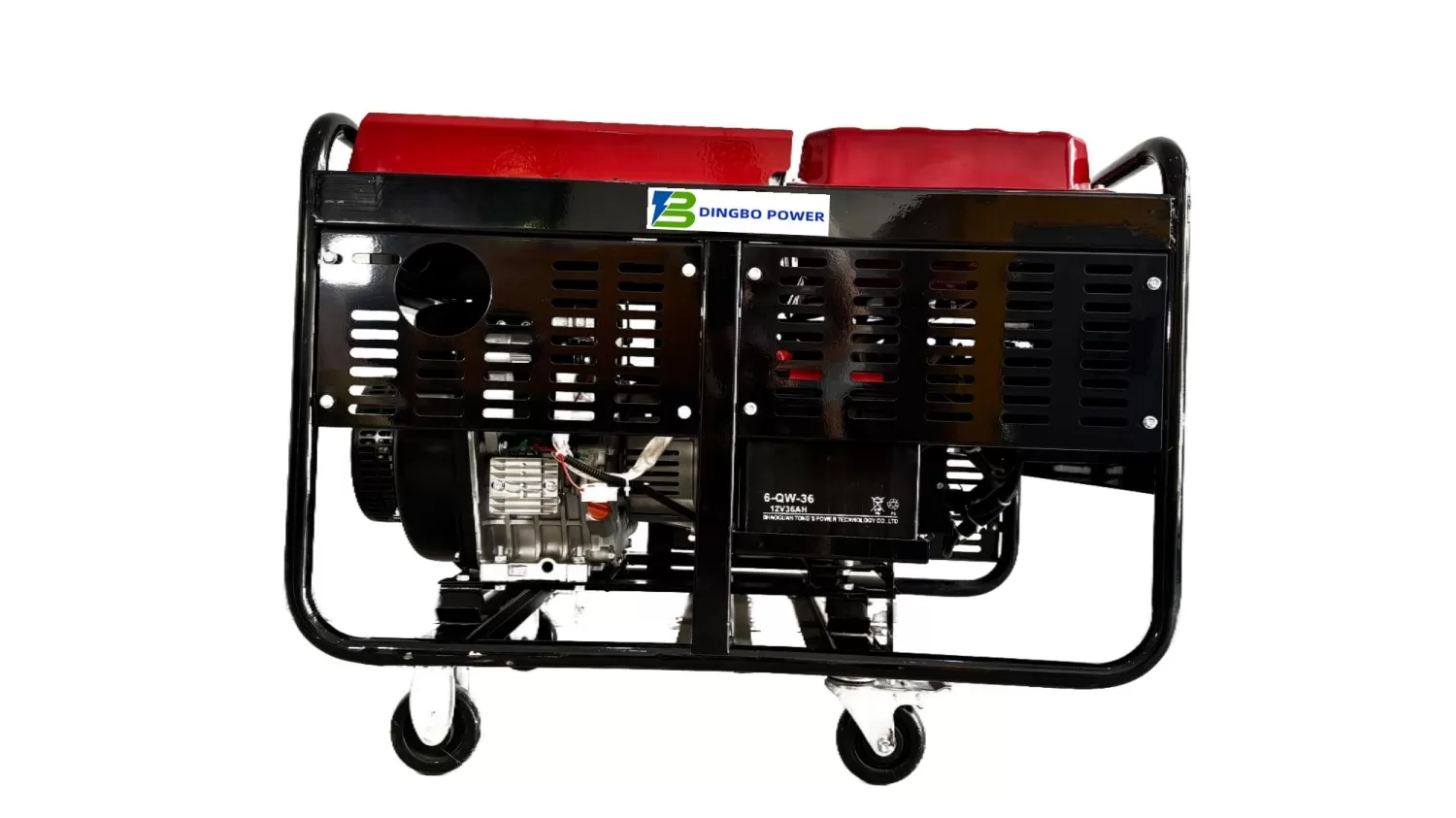

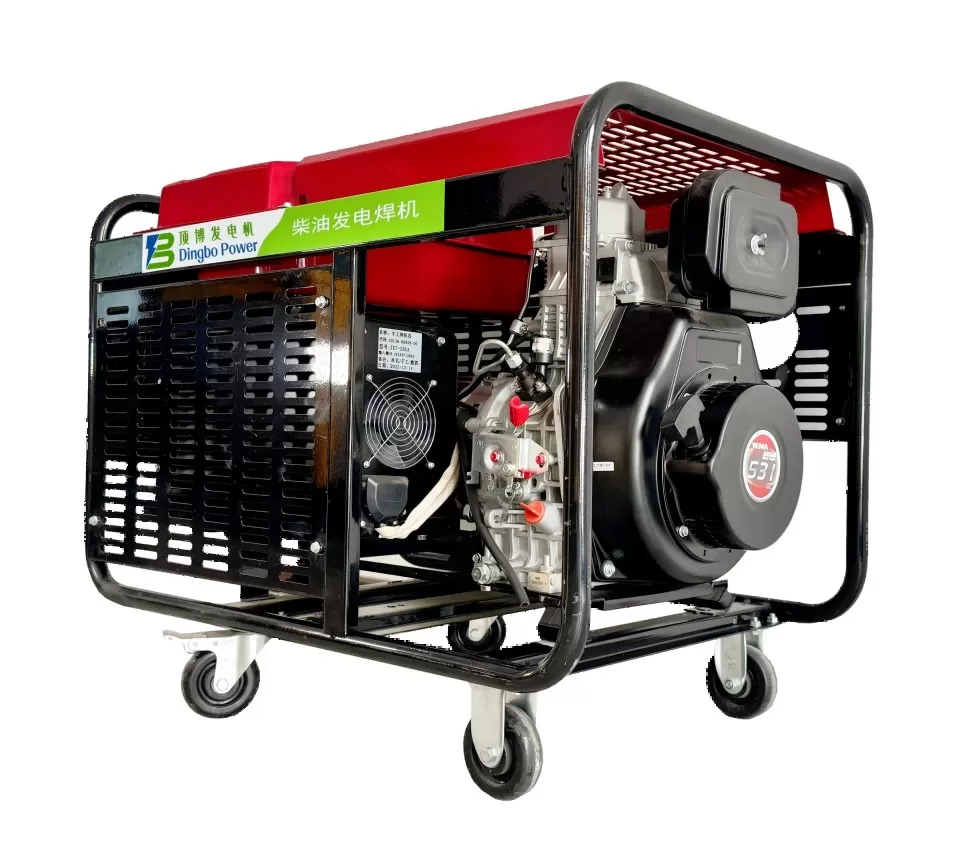

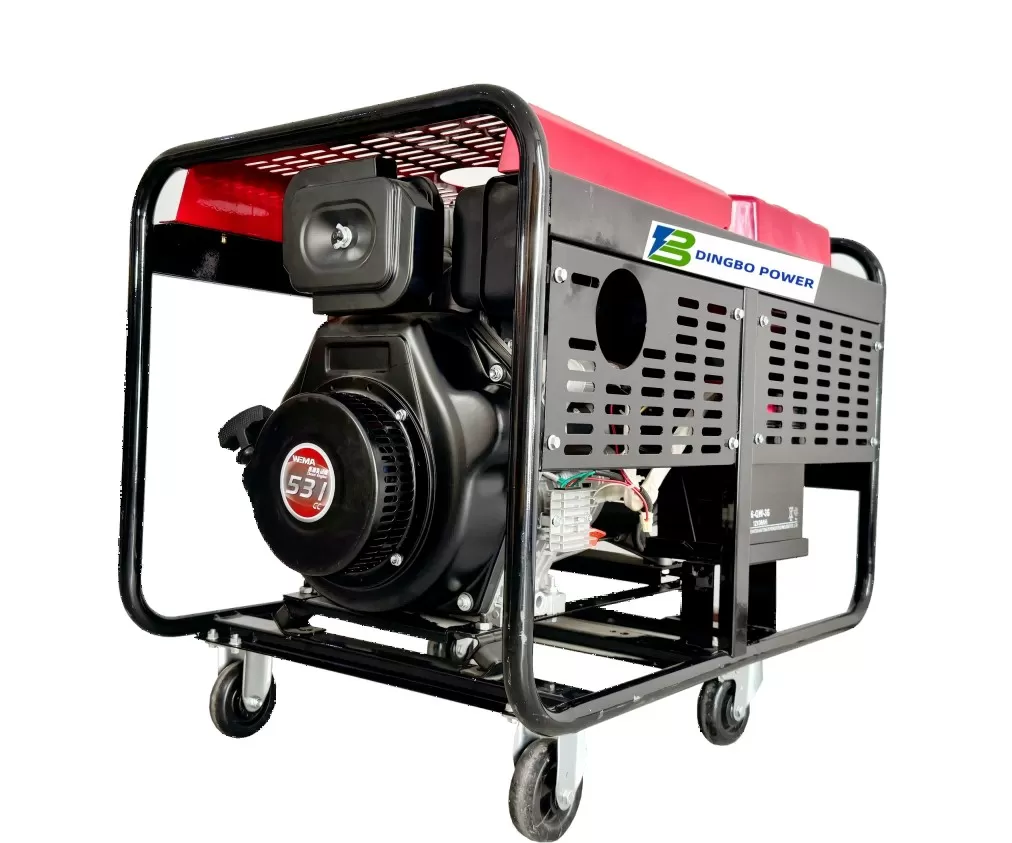

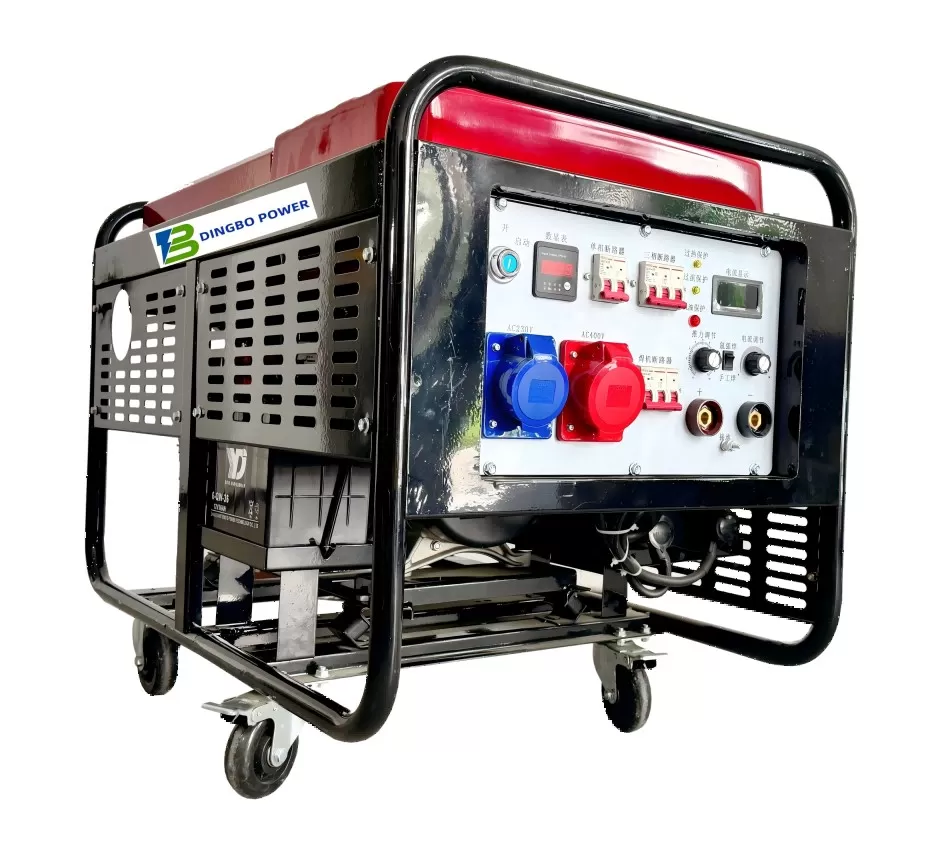

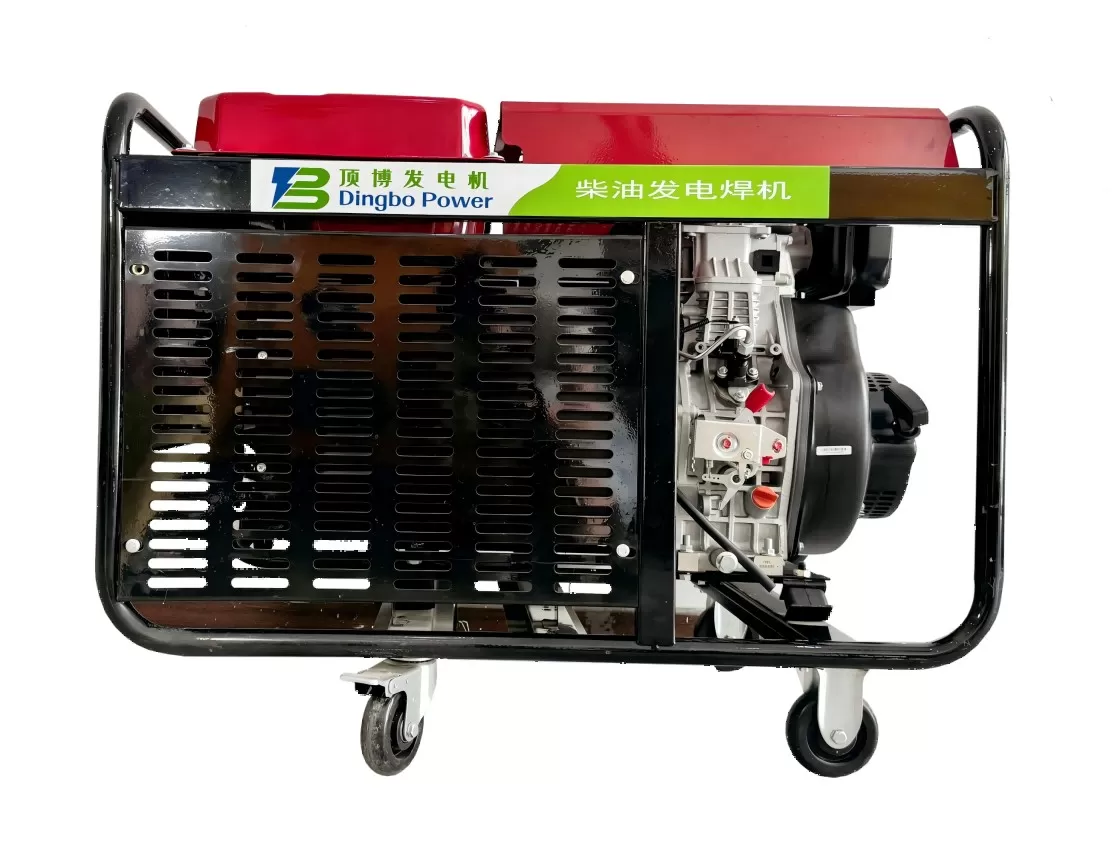

200A Open Type Diesel Welding Generator

Model No.:DB-AXC-200A

Welding Type: Manual welding/Argon arc Welding

No Load Voltage: 65V

Welding Voltage: 28V

Welding Current: 0-200A

Duty Cycle: 60%

Electrode Diameter: 2.5mm-3.2mm

Noise Level: 92dBA/7m

For more types, please contact us.

Inquire Now Next Product Download Datasheet

Product Features:

Dual output capability: The same unit provides both single-phase and three-phase AC output at identical power ratings. The AC output is suitable for grinding, cutting, lighting, and other applications.

Superior welding performance:

Automatic voltage fluctuation compensation.
Automatic arc force compensation.
Stable welding current.
Excellent dynamic characteristics with fast response.
Minimal spatter and strong penetration.
Continuously and precisely adjustable welding current.

Wide applicability: Ideal for use in power utilities, municipal projects, the chemical industry, water supply and the construction of gas pipelines and so on.

Technical spcifications:

Model No.		DB-AXC-200A
Alternator	Rated Power (W)	7000
	Max. Power(W)	8000
	Rated Speed(r/min)	3000
	Rated Frequency(Hz)	50
	Rated Voltage(V)	230/400
	Phase	Single Phase/Three Phase
Engine	Engine Model	195
	Engine Type	1 Cylinder, 4-Stroke, Air-cooled, vertical type
	Bore x Stroke (MM)	95x75
	Displacement(L)	0.531
	Fuel consumption(L/ h)	2.4
	Oil capacity(L)	1.7
	Ignition system	Compression ignition
	Starting Type	Electric Start
	Fuel Type	Diesel：0#(Summer)-10#(Winter)-35#(severe cold)
Welding machine	Welding Type	Manual Welding/Argon arc Welding
	Welding no-load voltage(V)	65
	Welding Voltage(V)	28
	Welding current (A)	0-200
	Duty Cycle(%)	60
	Electrode Diameter(mm)	2.5-3.2
Auxiliary configuration	Fuel Tank capacity (L)	20
	Continuous Working Hours (h)	8
	Battery capcity	12V-32AH maintenance-free battery
	Engine oil Alarm	√
	Fuel indicator	√
	Noise Level(dBA/7meters)	92
	Dimensions(MM)	778X528X789
	Weight (KG)	140

With a 60% duty cycle, Dingbo Power DB-AXC-200A open type diesel welding generators use adjustable amperage from 0 to 200 Amp for steady welding. They are suitable for applications such as pipeline welding, construction, maintenance, and repairs.
