Mounted on a chassis, diesel engine, water-cooled.
Machine Model:DB-80GF
Rated frequency:50HZ
Rated Voltage:230/400V
Rated power:100kVA/80kW
Weld Type: Manual welding
Welding current:20-200A
Welding voltage: 22-28V
Rated No-Load Voltage: 60-70V
For more types, please contact us.

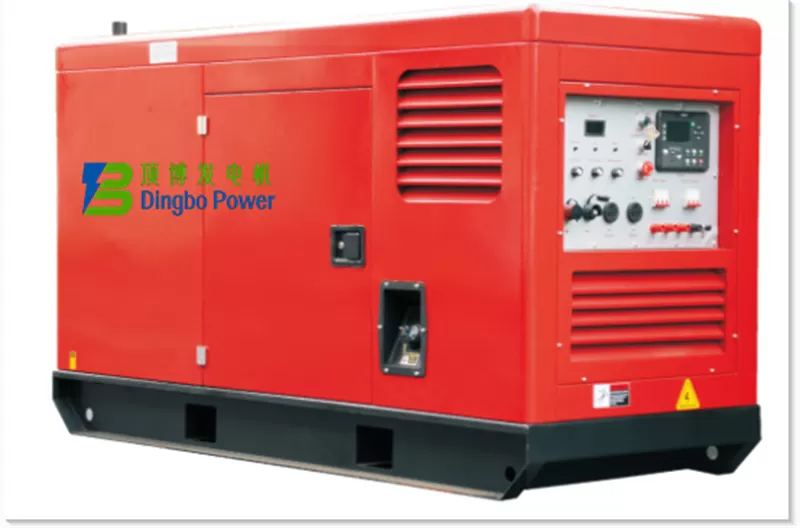

Dingbo Power DB-80GF Silent Diesel Welding Generator is a versatile welding generator with up to 200 amps of welding output. It is suitable for a variety of jobsite applications.
| Diesel Generator | Model | DB-80GF |
| Rated frequency(Hz) | 50 | |
| Rated Voltage(V) | 230/400 | |
| Rated power(KW) | 80 | |
| Max. power(KW) | 88 | |
| Phase/ wire | 3 phase 4 wire | |
| Noise level(dBA/7m) | ≤75 | |
| Dimension(mm) | 2800*1080*1500 | |
| Weight(kg) | 1400 | |
| Diesel engine | Engine model | 6BT5.9-G2 |
| Engine type | 4 stroke, water-cooled, direct injection | |
| Governor type | Electronic speed governor | |
| Rated power(KW) | 96 | |
| Max. power(KW) | 106 | |
| Number of cylinder | 6 | |
| Bore*Stroke(mm) | 102*120 | |
| Compression ratio | 17.3:1 | |
| Oil capacity(L) | 16.9 | |
| Fuel consumption(L/H) | 22 | |
| Displacement(L) | 5.9 | |
| Alternator | Generator model | WHI274C |
| Rated frequency (Hz) | 50 | |
| Rated voltage (V) | 230/400 | |
| Rated (KW) power | 80 | |
| Power factor | 0.8 | |
| protection grade | IP22 | |
| Excitation type | Brushless self excitation | |
| Insulation level | H | |
| Welder | Weld Type | Manual welding |
| No load voltage (V) | 60-70 | |
| Welding voltage (V) | 22-28 | |
| Welding current (A) | 20-200 | |
| welding efficiency | 60% | |
| Welding interface | Single welding | |
| Current Regulation | √ |
