Model No.:DB-AXQ-180A
Welding Type: Manual welding
No Load Voltage: 60-70V
Welding Voltage: 22-28V
Welding Current: 180A
Auxiliary Power: AC220V/4KW
Engine Starting Type: Manual Recoil
Noise Level:78 dBA/7m
For more types, please contact us.
Product features:
1. Rare-earth permanent magnet generator delivers stable current with superior overload capacity. 20% higher efficiency than conventional generators.
2. Compact & lightweight design. Optimized for portability and easy transportation.
3. Adjustable welding current for versatile operation. Ensures excellent weld quality across applications.
Technical specifications:
| Model No. | DB-AXQ-180A | |
| Welder | Welding Type | Manual welding |
| No Load Voltage (V) | 60-70 | |
| Welding Voltage (V) | 22-28 | |
| Welding Current (A) | 180 | |
| Welding Efficiency | 60% | |
| Auxiliary Power | AC220V/4KW | |
| Engine | Engine Model | 225-V |
| Engine Type | 1 Cylinder, Air-Cooled, OHV | |
| Bore*Stroke (MM) | 70*55 | |
| Displacement (CC) | 225 | |
| Starting Type | Manual Recoil | |
| Oil Capacity (L) | 0.6 | |
| Welding Generator | Fuel Tank Capacity (L) | 15 |
| Noise Level (dBA/7m) | 78 | |
| Dimensions (mm) | 560*490*540 | |
| Weight (KG) | 45 | |

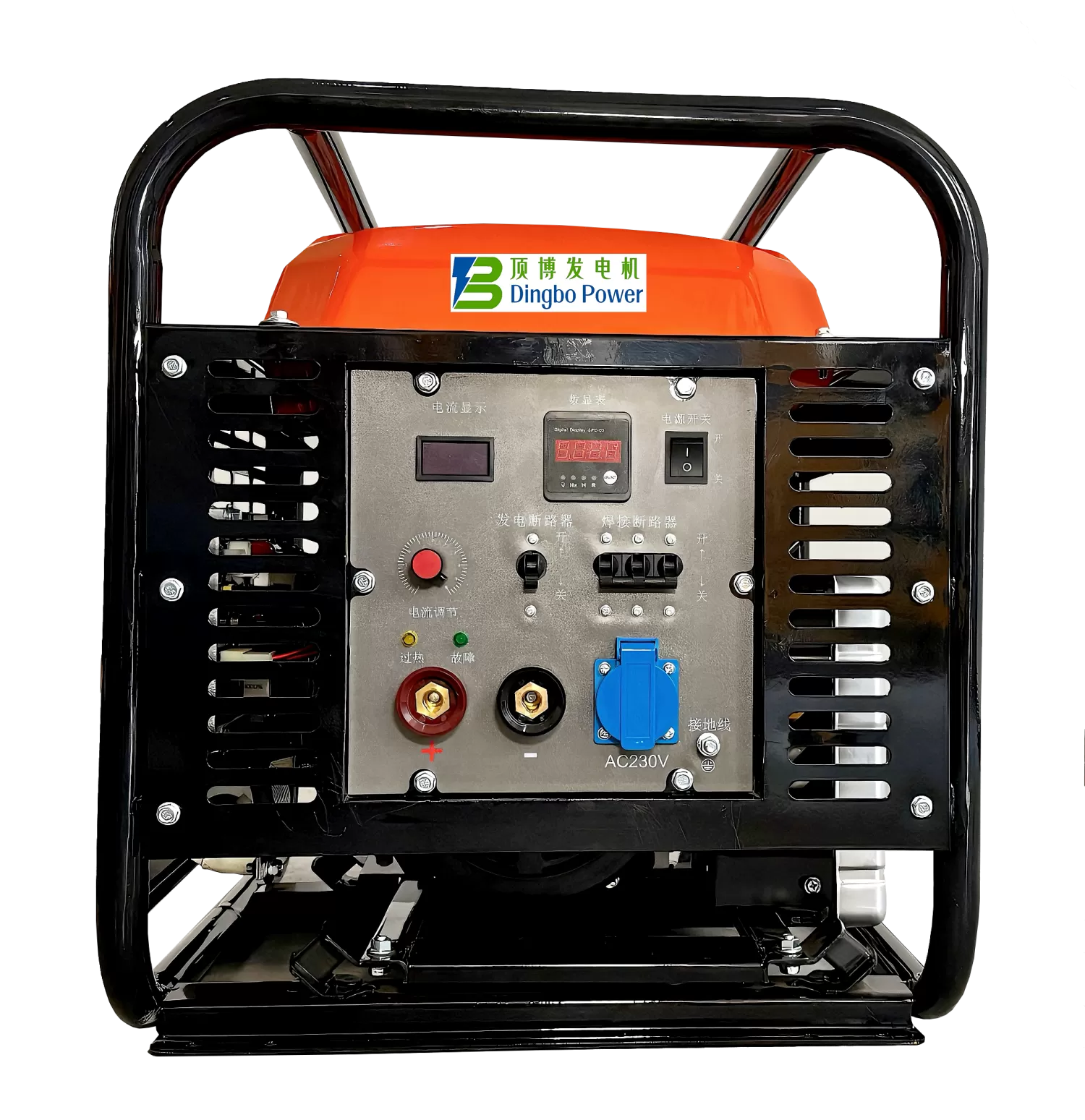

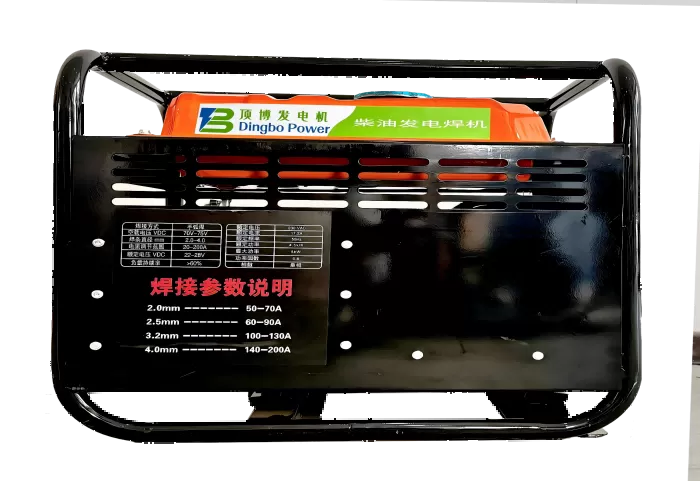

Dingbo Power DB-AXQ-180A is a versatile gasoline engine driven welder generator with up to 180 amps of welding output and 4kW of auxiliary power. It is designed to cater to all skill levels, suitable for a variety of jobsite applications.
