Model No.:DB-AXQ-120A
Welding Type: Manual welding
No Load Voltage: 50-60V
Welding Voltage: 20-24V
Welding Current: 20A-120A
Electrode Diameter: 2.0mm-3.2mm
Engine Starting Type: Manual Recoil
Noise Level:78 dBA/7m
For more types, please contact us.
Product features:
1. Rare-earth permanent magnet generator delivers stable current with superior overload capacity. 20% higher efficiency than conventional generators.
2. Compact & lightweight design. Optimized for portability and easy transportation.
3. Adjustable welding current for versatile operation. Ensures excellent weld quality across applications.
4. It features a soundproof enclosure with low noise emission.
Technical specifications:
| Model No. | DB-AXQ-120A | |
| Welder | Welding Type | Manual welding |
| No Load Voltage (V) | 50-60 | |
| Welding Voltage (V) | 20-24 | |
| Welding Current (A) | 20-120 | |
| Load Continuous Rate | 60% | |
| Electrode Diameter (mm) | 2.0-3.2 | |
| Engine | Engine Model | 190 |
| Engine Type | 1 Cylinder, Four Stroke, Air-Cooled, OHV | |
| Bore*Stroke (MM) | 92*66 | |
| Displacement (CC) | 420 | |
| Specific fuel consumption(g/KW.h) | 392 | |
| Ignition system | Inductive ignition | |
| Starting Type | Manual Recoil | |
| Fuel Type | Gasoline (above 90#) | |
| Oil Capacity (L) | 0.6 | |
| Auxiliary configuration | Continuous Working Hours (h) | 8 |
| Battery capacity | / | |
| Fuel Tank Capacity (L) | 25 | |
| Engine oil Alarm | √ | |
| Fuel indicator | √ | |
| Noise Level (dBA/7m) | 78 | |
| Dimensions (mm) | 1000*560*785 | |
| Weight (KG) | 180 | |

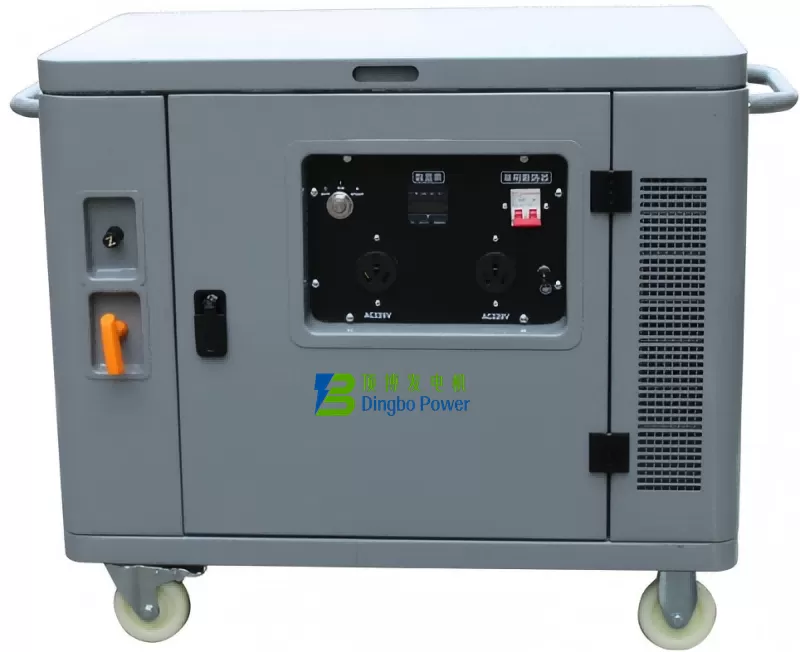

Dingbo Power DB-AXQ-120A is a versatile silent gasoline inverter welding generator with up to 120 amps of welding output. It is designed to cater to all skill levels, suitable for a variety of jobsite applications.
