Shangchai Diesel Generator SC9D310D2 Technical Data

Oct. 15, 2019

1. 200KW Shangchai diesel generator SC9D310D2 engine technical data is given below:


POWER RATING


Engine Speed

Type of Operation

Engine Power

rpm

kW

Ps

1500

Prime Power

208

287

Stanby Power

228

310


1. Standard & certificate:

GB/T2820

GB/T1147.1

ISO/TS16949:2002 Quality Management System

ISO14001 Environment Management System

OHSAS18001 Occupation Health and Safety Management System

LL-C Certificate

2. Prime power is available for an unlimited number of hours per year in a variable load application. The permissible average power output over 24 hours of operation shall not exceed 80% of the prime power rating.

3. Standby power is available in the even of a utility power outage or under test conditions for up to 200 hours of operation per year. The permissible average power output over 24 hours of operation shall not exceed 80% of the standby power rating.



SPECIFICATIONS

FUEL CONSUMPTION

Engine Model

SC9D310D2

Power

lit/hr

Engine Type

In-line, 4 strokes, water-cooled, 4 valves, Turbo charged air-to-air intercooled

25%

13.9



50%

26.3

Combustion type

Direction injection

75%

38.2

Cylinder Type

Wet liner

100%

50.6

Number of cylinders

6

110%

55.6

Bore × stroke

114(4.49) × 144(5.67) mm(in.)



Displacement

8.82 (538.2) lit.(in3)



Compression ratio

18 : 1



Firing order

1-5-3-6-2-4

FUEL SYSTEM


Injection timing

6°BTDC

Injection pump

Longkou in-line "P" type

Dry weight

Approx.740kg (1631b)

Governor

Electric type

Dimension

1455×762×1273mm

Feed pump

Mechanical type

  (L×W×H)

(57.3×30.0×50.2 in.)

2Injection nozzle

Multi hole type

Rotation

Counter clockwise viewed from Flywheel

Opening pressure

250 kg/cm2 (3556 psi)

Fly wheel housing

SAE NO.3

Fuel filter

Full flow, cartridge type

Fly wheel

SAE NO. 11.5

Used fuel

Diesel fuel oil





MECHANISM

LUBRICATION SYSTEM

Type

Over head valve

Lub. Method

Fully forced pressure feed type

Number of valve

Intake 1, exhaust 1 per cylinder

Oil pump

Gear type driven by crankshaft

Valve lashes at cold

Intake 0.30mm (0.0118 in.)

Oil filter

Full flow, cartridge type


Exhaust 0.50mm (0.0197 in.)

Oil pan capacity

High level 19 liters ( 5.02 gal.)

Low level 15 liters (3.96 gal)



Angularity limit

Front down 25 deg.

Front up 35 deg.

Side to side 35 deg.

VALVE TIMING


   Opening

Close

Intake valve

22.5°BTDC

34.5°ABDC



Exhaust valve

67.5°BBDC

25.5°ATDC

Lub. Oil

Refer to Operation Manual





COOLING SYSTEM

ENGINEERING DATA

Cooling method

Fresh water forced circulation

Water flow

200 liters/min @1,500 rpm

Water capacity (engine only)

12 liters ( 3.17 gal.)

Heat rejection to coolant

20.35kcal/sec @1,500 rpm



Heat rejection to CAC10.4 m3/min @1,500 rpm

Pressure system

Max. 0.5 kg/cm2 ( 7.11 psi)

Air flow

16.4 m3/min @1,500 rpm

Water pump

Centrifugal type driven by belt

Exhaust gas flow

35.9m3/min @1,500 rpm

Water pump Capacity

200 liters( 52.8 gal.)/min at 1, 500 rpm(engine)

Exhaust gas temp.

600 °C @1,500 rpm

Thermostat

Wax-pellet type

Opening temp. 82°C

Full open temp. 93°C

Max. permissible restrictions


Intake system

3 kPa initial

6 kPa final

Cooling fan

Blower type, plastic

762 mm diameter, 10 blades

Exhaust system

6 kPa max

Max. permissible altitude

2,000 m





ELECTRICAL SYSTEM

CONVERSION TABLE

Charging generator

28V×55A

in. = mm × 0.0394

lb/ft = N.m × 0.737

Voltage regulator

Built-in type IC regulator

PS = kW × 1.3596

U.S. gal = lit. × 0.264

Starting motor

24V×7.5kW

psi = kg/cm2 × 14.2233

kW = 0.2388 kcal/s

Battery Voltage

24V

in3 = lit. × 61.02

lb/PS.h = g/kW.h × 0.00162

Battery Capacity

180 AH

hp = PS × 0.98635

cfm = m3/min × 35.336



lb = kg × 2.20462

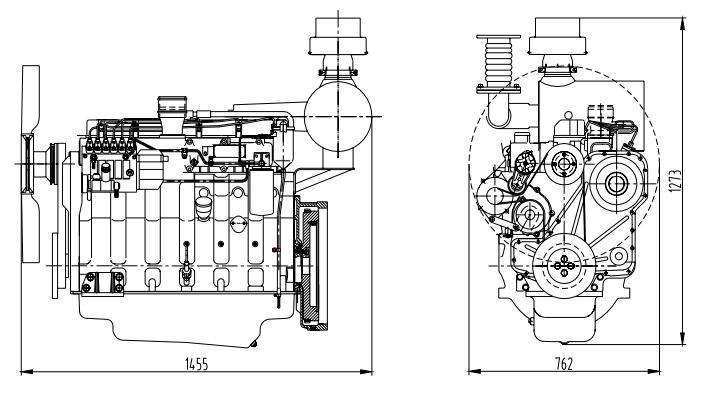

Shangchai SC9D310D2 diesel engine.jpg


2. Power generation alternator technical data


Alternators we can supply Stamford, Leory-Somer, Siemens, Marathon, Engga, Starlight and Shanghai KEPU. The basic data of the generator is given below:


Alternator Data

Output Power (KW)

200KW

Structure

One-piece

Excitation type

Brushless Self Excitation

Overload Capacity

10% overload for one hour

Insulation Class

H

Short-time Current

150%10S

Protection Class

IP22

Mode of Connection

3-phase, 4-line, neutral ground

Rated Voltage

400V

Power Factor

0.8 (Lag)

Rated Frequency50 HzRated Speed1500rpm


Starlight Shangchai Series diesel generating sets are selected from Dongfeng 135 of Shangchai Diesel Engine  Co.,Ltd, D114 and C121. The units are favored by customers due to the good power, economy, reliability, low operation cost, and national-chain warranty and accessories supply.


Jiangsu Starlight Electricity Equipment Co.,Ltd, as Shangchai diesel generator OEM/supporting factory, we can provide 50KW to 1600KW high quality generating sets (open type generator, soundproof genset and containerized standby generator) with Shangchai engines.

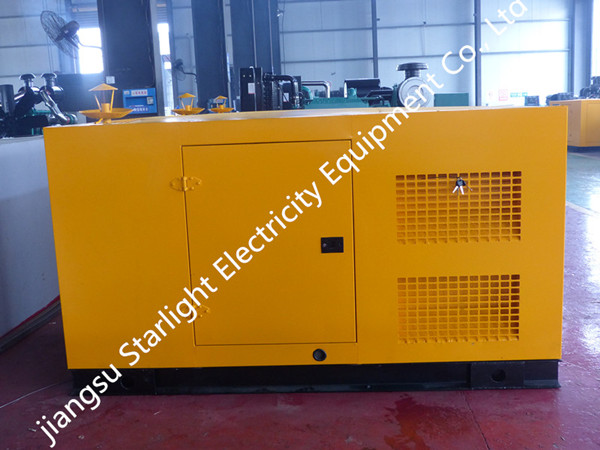

soundproof generator set


Advantage of Shangchai power generation


Optional accessories

* ATS Control Panel

*Automatic cabinet select British Deep Sea or ComAp

* 8 hours daily fuel tank

* Container type generator set

* Low noise type genset

* Trailer power station

* Remote microcomputer interface

*Running 500 to 1,000 hours spare parts



* Brushless AC generator

* Steel structure base

* Fan water tank cooling system

* 24V starting motor and charging motor

* Air filter, fuel filter and oil filter

* Self-start control screen for various protection function

* Air protection switch

* 24V start battery and battery line

* Unit shock absorber

* Efficient silencer for industrial use



Four valves per cylinder, using electronic speed regulator, P11 high pressure oil pump, effectively improve combustion and emissions, smooth work, good economy.



Gantry-type cylinder block, rear gear train and rationally-arranged reinforcing ribs provide good rigidity, compact structure, small vibration and low noise.
