Export Cummins Silent Generator Set to Angola

Jul. 27, 2023

Two units 875KVA containerized silent diesel generating sets with Cummins engine KTA38-G2A and original Stamford alternator export to Angola.


Item name: silent containerized diesel generator set

Manufacturer: Guangxi Dingbo Power Equipment Manufacturing Co.,Ltd.

Country of manufacturing: China

Standard: GB/T2820.5-2009 and ISO8528

Set type: DB-700GF

Rated power: 700KW/875KVA

Rated currency: 1260A

Rated frequency: 50Hz

Rated speed: 1500rpm

Power factor: 0.8 lag

Rated voltage: 400V

Performance level: G2

Dimension: 6000 x 2600 x 2800 mm

Weight: 12000kg

Standard: GB/T2820.5-2009 and ISO8528



Cummins Engine Data:

Manufacturer: Chongqing Cummins Engine Company Ltd

Model: KTA38-G2A

Standard: ISO 3046, ISO 8528, BS 5514

Prime power: 813KW

Standby power: 896KW

Number of cylinder: 12

Bore x Stroke: 159 x 159mm

Displacement: 37.8L

Compression ratio: 14.5:1

Aspiration: Turbocharged, air-to-air intercooled

Machine oil capacity: 135 L

Coolant capacity: 123.8 L (Engine only)

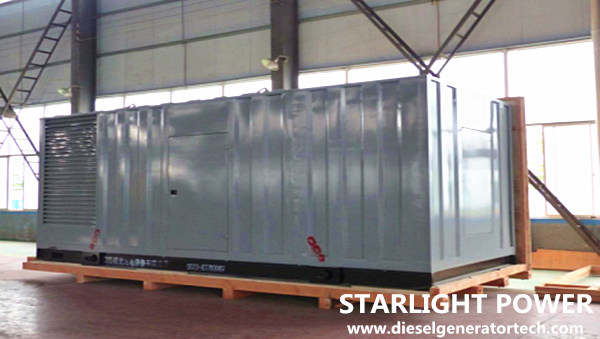

silent diesel generator


Stamford Alternator data

Manufacturer: Cummins Generator Technologies (China) Co.,Ltd

Model: LVI634D

Rated power: 728A

Standard: CSA & CE

Phase: 3

Overload capacity: 10% overload for one hour

Insulation class: H

Protection level: IP23

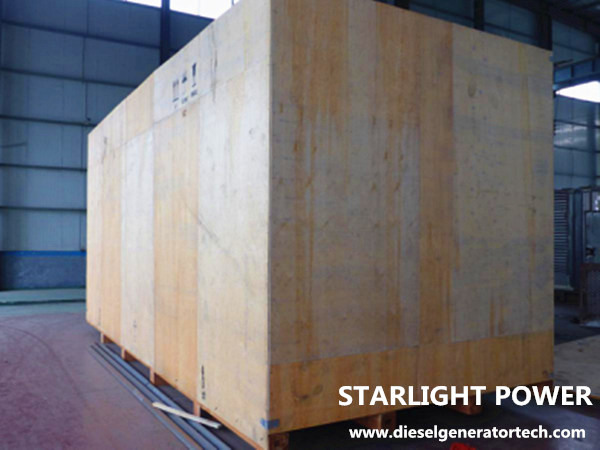

Soundproof diesel generator set


Special Tools (Total 53 pieces)



Number

Name

Packing Specifications

Number of units

Total

1

Socket Head

(Square1/2”):   7/16” 1/2” 9/16” 5/8” 11/16” 3/4” 13/16”

1

12

2

Long Socket Head

(Square3/8”):   1/4” 5/16” 3/8” 7/16” 1/2” 9/16” 5/8”

1

7

3

Heavy   Duty Socket Head

(Square   3/4): 7/8” 1-1/16” 1-1/8” 1-5/16” (hexagonal)

1

4

4

Univeral Socket Head

(Square3/8”):   1/2” 9/16” 5/8”

1

3

5

Socket Head Handel

Square   head 3/8”

1

1

6

Socket Extension

3/8”x   3/8” x 6”  1/2” x 1/2” x 5”  3/4” x 3/4” x 3/4” x 3” 1/2” x 3/8” x 1”

1

4

7

Inner   Hexagon Spanner

3/32”   5/32” 3/16” 7/32” 1/4” 5/16”

1

6

8

Combination   Wrenches

3/8” x   3/8” 7/16” x 7/16” 1/2” x 1/2” 9/16” x 9/16” 5/8” x 5/8” 11/16” x 11/16” 3/4”   x 3/4” 13/16” x 13/16” 7/8” x 7/8” 15/16” x 15/16” 1” x !”

1

11

9

Opening  double offset box socket wrench

7/16”   x 1/2” 11/16” 3/8”

1

2

10

Ratchet wrench

1/2”

1

1

11

Adjustable wrench

3/8”

1

1

12

Feeler gauge

0.28   0.36 0.38 0.40 0.58 0.68 0.69

One   for each feeler gauge

1

14

Flexible rotary wrench


1

1
