Model:DB12000CJ
Type: Silent type
Rated Power Output: 8KW
Phase: Single Phase
Rated Voltage: 220V
Rated Frequency: 50Hz
Nosie Level: 78 dBA/7m
Starting type: Electric Start
For more types, please contact us.
1. Vertical single-cylinder, 4-stroke, forced air cooled engine delivers low emissions and stable performance.
2. The 100% copper-wound alternator stator with AVR (automatic voltage regulation) offers strong power, reliable excitation and convenient maintenance.
3.The reinforced steel frame design makes the generator sturdy and durable and the standard casters significantly enhance the generator’s mobility.
4. The generator set has overload circuit breaker protection and low-oil shutdown protection.
5 Acoustic-optimized muffler can reduce the noise effectively.
Technical specifications:
| Genset Model | DB12000CJ | |
| Alternator | Excitation Type | AVR, Brush-type Self-excitation |
| Prime Power (KW) | 8 | |
| Standby Power (KW) | 8.5 | |
| Rated Voltage(V) | 220 | |
| Frequency (Hz) | 50 | |
| Phase | Single Phase | |
| Power Factor (COSφ) | 1 | |
| Insulation Class | F | |
| Engine | Engine Model | KD1100FE |
| Bore*Stroke (MM) | 100*85 | |
| Displacement (CC) | 667 | |
| Engine Type | 1 Cylinder, air-cooled, direct injection | |
| Fuel | Diesel | |
| Oil Capacity (L) | 2 | |
| Starting | Electric Start | |
| Genset | Fuel Tank (L) | 25 |
| Noise Level (dBA/7m) | 78 | |
| Dimensions(MM) | 1000*650*735 | |
| Weight (KG) | 202 | |

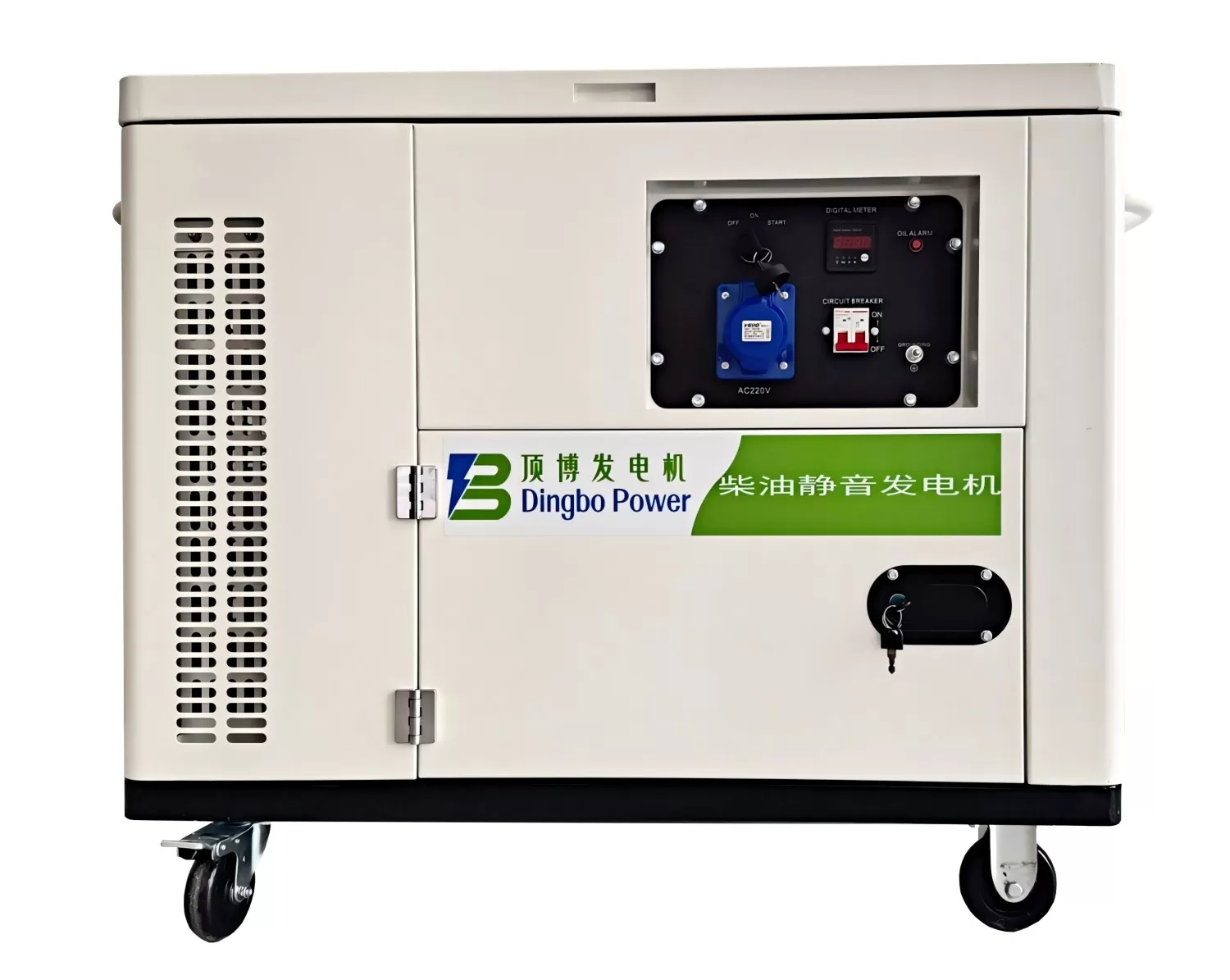

Dingbo Power silent type portable single phase 8kW (10kVA) diesel generator, single-cylinder air-cooled 4-stroke diesel engine with electric start and 25L fuel tank capacity, is ideal for residential use, remote worksites, construction projects, and disaster relief operations.
Optional equipment: Automatic Transfer Switch (ATS)
ATS automatic control panel include mains power indicator, generator operation indicator, auto-mode status indicator and fault alarm indicator.
When the ATS detects that the mains power is cut off, the generator set automatically self-starts and the ATS closes generator circuit (loads powered by generator). When ATS detects mains recovery, generator enters cooldown shutdown (30-60 min delay) and ATS opens generator circuit (loads transferred to mains).
