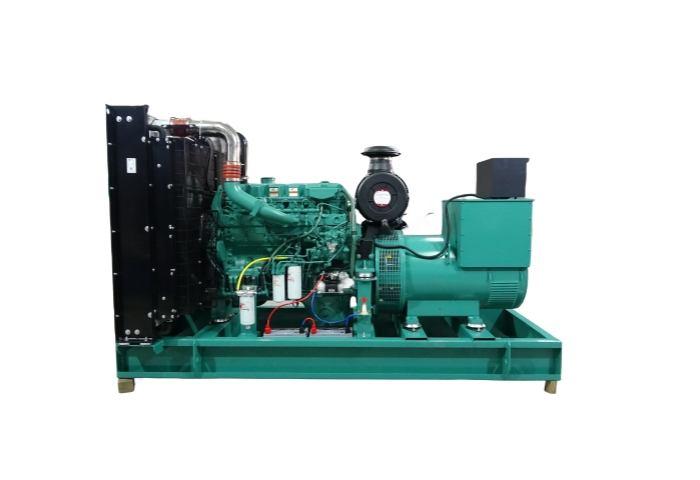

520KW Volvo Generator Set 415V 220V 3Phase 50/60Hz frequency Volvo Engine With Stanford Altornator

520KW Volvo Power Generator Set Open Silent With Stanford Altornator

Standard Features



Diesel Engine: VOLVO TAD1642GE

Radiator 50℃ Max

Fans Are Driven By Belt, With Safety Guard

24V Charge Alternator

Dry Type Air Filter, Fuel Filter, Oil Filter

Alternator: Single Bearing Alternator

IP23, Insulation Class H/H

Main Line Circuit Breaker

Standard Control Panel

Absorber

Muffler

User Manual


Technical Data Of Diesel Engine

Manufacturer:

Volvo

Model:

TAD1642GE-B

Prime Power:

520KW/650kVA

Standby Power:

572KW/715kVA

Rated Speed:

1500/1800 r/min

No. Of Cylinders:

In-line 6

Method Of Operation:

4-Strock

Displacement:

7.6L

Bore And Stroke:

108*130mm

Compression Ratio:

18:1

Governor Type:

Electronic

Start Battery Voltage:

24V DC

Dry Weight:

575kg

Wet Weight:

606kg

Lubrication System

Oil Consumption Prime Power:

0.08 Liter/h

Oil Consumption Standby Power:

0.08 Liter/h

Oil System Capacity Incl Filters:

13 Liter

Fuel System

Fuel Consumption Prime Power1500/1800 rpm:

25%

276/302 g/kWh

50%

231/240 g/kWh

75%

219/223 g/kWh

100%

217/219 g/kWh

Fuel Consumption Standby Power1500/1800 rpm:

25%

263/286 g/kWh

50%

226/235 g/kWh

75%

218/222 g/kWh

100%

218/219 g/kWh

Six Hole Fuel Injection Nozzles

Electronic Govemor With Smoke Limiter Function

Washable Fuel Prefilter With Water Separator

Rotary Low-Pressure Fule Pump

Fine Fuel Filter Of Disposable Type

Lubrication System

Full Flow Disposable Spin-On Oil Filter, For Extra High Filtration

Rotary Displacement Oil Pump Driven By The Crankshaft

Deep Centre Oil Sump, 30° Inclination

Oil Dipstick, Short In Front

Oil Filler On Top

Integrated Full Flow Oil Cooler, Side-Mounted

Cooling System

Belt Driven, Maintenance-Free Coolant Pump With High Degree Of Efficiency

Efficient Cooling With Accurate Coolant Control Through A Water Distribution Duct In The Cylinder Block

Reliable Thermostat With Minimum Presure Drop

Cooling Water Pipe, Inlet And Outlet

Fan Hub

Fan On Separate Brachet 292mm Above Crankshaft

Alternator Data



Manufacturer:

LEROY SOMER/STAMFORD/SIEMENS/MARATHON/ENGGA/KEPU

Excitation Mode:

Brushless and self- exciting

Number of phase and Access Act:

3-phase 4-wire

Connecting Type:

"Y" type connecting

Alternator Capacity:

750KVA

Alternator Efficiencies:

 95%

Overload:

PRP)110% load can run 1h

Protection Level:

IP22-IP23

Insulation Class, Temperature Rise:

H/H

Telephone Influence Factor (TIF):

50

THF:

2%

Voltage Regulation, Steady State:

≤±1%

Air Cooling Flow:

1.035m3/s

Altitude:

 ≤1000m



Genset Electrical Performance

Voltage Regulation:

≥±5%

Voltage Regulation, Stead State:

≤±1%

Sudden Voltage Warp (100% Sudden Reduce):

≤+25%

Sudden Voltage Warp (Sudden Increase):

≤-20%

Voltage Stable Time (100% Sudden Reduce):

≤6S

Voltage Stable Time (Sudden Increase):

≤6S

Frequency Regulation, Stead State:

≤5%

Frequency Waving:

≤1.5%

Sudden Frequency Warp (100% SuddenReduce):

≤+12%

Sudden Frequency Warp (Sudden Increase):

≤-10%

FrequencyRecoveryTime(100%SuddenReduce):

≤5S

FrequencyRecoveryTime(Sudden Increase):

≤5S
