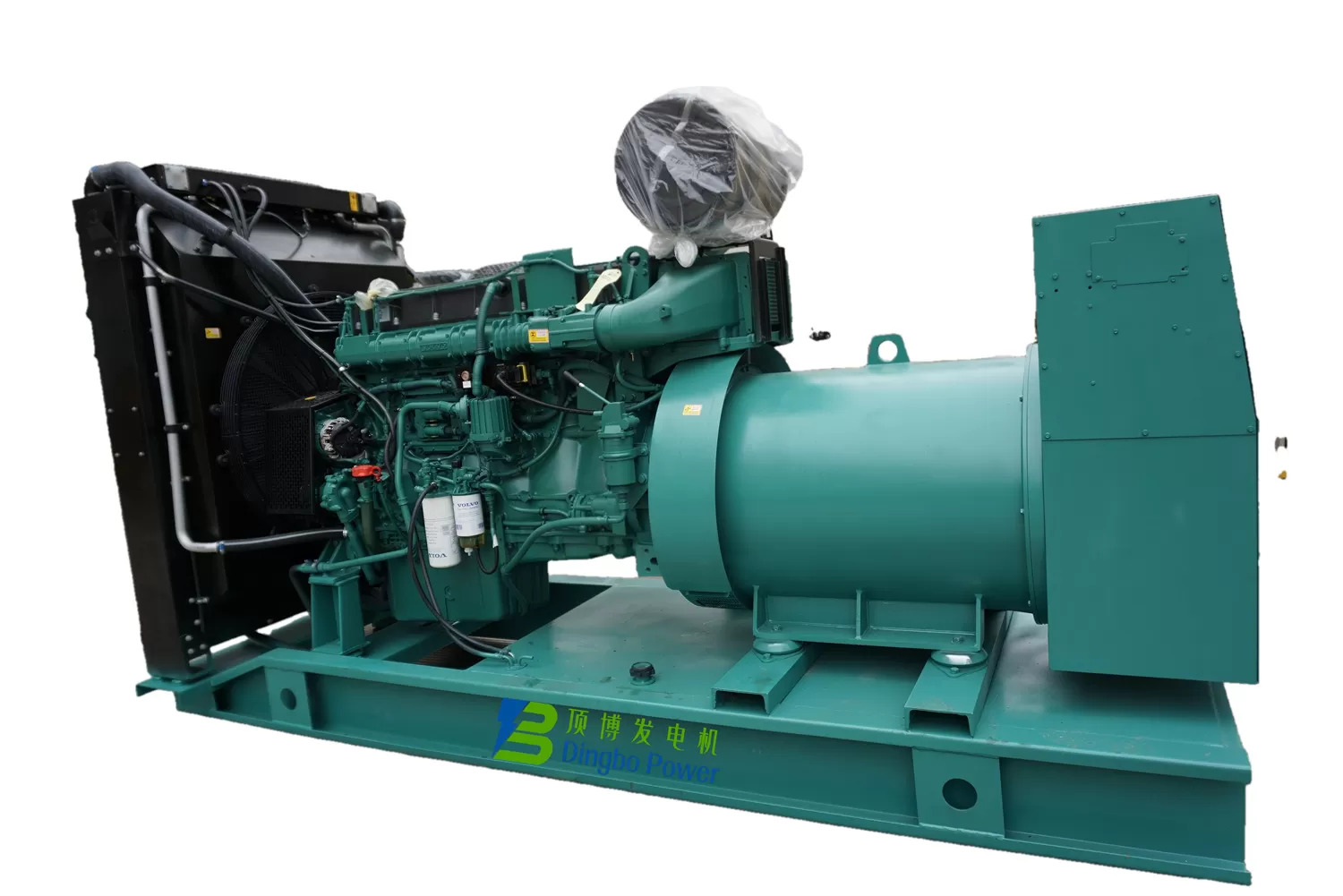

520KW Volvo Generator Set 415V 220V 3Phase 50/60Hz frequency Volvo Engine With Stanford Altornator

Manufacturer:

Volvo

Model:

TAD1642GE-B

Prime Power:

520KW/650kVA

Standby Power:

572KW/715kVA

Rated Speed:

1500/1800 r/min

No. Of Cylinders:

In-line 6

Method Of Operation:

4-Strock

Displacement:

7.6L

Bore And Stroke:

108*130mm

Compression Ratio:

18:1

Governor Type:

Electronic

Start Battery Voltage:

24V DC

Dry Weight:

575kg

Wet Weight:

606kg

Oil Consumption Standby Power:

0.08 Liter/h

Oil System Capacity Incl Filters:

13 Liter

25%

276/302 g/kWh

50%

231/240 g/kWh

75%

219/223 g/kWh

100%

217/219 g/kWh

Fuel Consumption Standby Power1500/1800 rpm:

25%

263/286 g/kWh

50%

226/235 g/kWh

75%

218/222 g/kWh

100%

218/219 g/kWh

Six Hole Fuel Injection Nozzles

Electronic Govemor With Smoke Limiter Function

Washable Fuel Prefilter With Water Separator

Rotary Low-Pressure Fule Pump

Fine Fuel Filter Of Disposable Type

Rotary Displacement Oil Pump Driven By The Crankshaft

Deep Centre Oil Sump, 30° Inclination

Oil Dipstick, Short In Front

Oil Filler On Top

Integrated Full Flow Oil Cooler, Side-Mounted

Efficient Cooling With Accurate Coolant Control Through A Water Distribution Duct In The Cylinder Block

Reliable Thermostat With Minimum Presure Drop

Cooling Water Pipe, Inlet And Outlet

Fan Hub

Fan On Separate Brachet 292mm Above Crankshaft

Excitation Mode:

Brushless and self- exciting

Number of phase and Access Act:

3-phase 4-wire

Connecting Type:

"Y" type connecting

Alternator Capacity:

750KVA

Alternator Efficiencies:

 95％

Overload:

（PRP）110% load can run 1h

Protection Level:

IP22-IP23

Insulation Class, Temperature Rise:

H/H

Telephone Influence Factor (TIF):

＜50

THF:

＜2%

Voltage Regulation, Steady State:

≤±1%

Air Cooling Flow:

1.035m3/s

Altitude:

 ≤1000m

Voltage Regulation, Stead State:

≤±1%

Sudden Voltage Warp (100% Sudden Reduce):

≤+25%

Sudden Voltage Warp (Sudden Increase):

≤-20%

Voltage Stable Time (100% Sudden Reduce):

≤6S

Voltage Stable Time (Sudden Increase):

≤6S

Frequency Regulation, Stead State:

≤5%

Frequency Waving:

≤1.5%

Sudden Frequency Warp (100% SuddenReduce):

≤+12%

Sudden Frequency Warp (Sudden Increase):

≤-10%

FrequencyRecoveryTime(100%SuddenReduce):

≤5S

FrequencyRecoveryTime(Sudden Increase):

≤5S
