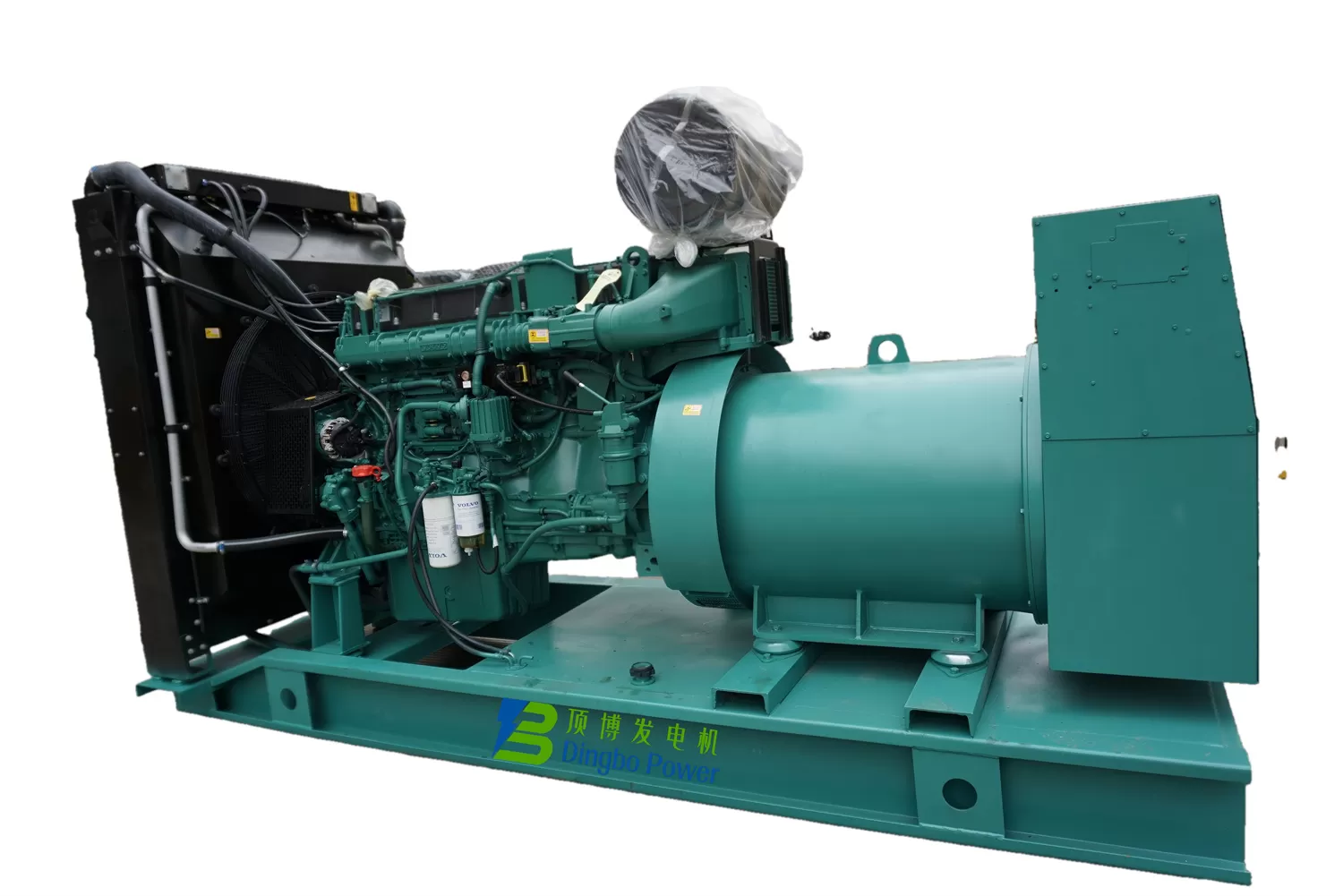

Diesel Generator Set Data
Set Type: DB-360GF
Prime Power: 360KW/450kVA
Standby Power:396KW/495kVA
Rated Current: 650A
Rated Frequency: 50Hz/60Hz
Start-up Time: 5~6 S
Power Fector: 0.8 Lag
Rated Voltage: 400/230 V
Standard Features
Diesel Engine: VOLVO TAD1355GE
Radiator 50℃ Max
Fans Are Driven By Belt, With Safety Guard
24V Charge Alternator
Dry Type Air Filter, Fuel Filter, Oil Filter
Alternator: Single Bearing Alternator
IP23, Insulation Class H/H
Main Line Circuit Breaker
Standard Control Panel
Absorber
Muffler
User Manual
Technical Data Of Diesel Engine | |
Manufacturer: | Volvo |
Model: | TAD1355GE |
Prime Power: | 355KW/344KW |
Standby Power: | 390KW/376KW |
Rated Speed: | 1500/1800 r/min |
No. Of Cylinders: | In-line 6 |
Method Of Operation: | 4-Strock |
Displacement: | 12.78L |
Bore And Stroke: | 131*158mm |
Compression Ratio: | 18.1:1 |
Governor Type: | Electronic |
Start Battery Voltage: | 24V DC |
Dry Weight Engine Only: | 1295kg |
Wet Weight With Gen Pac: | 1715kg |
Lubrication System
| Full flow oil cooler |
| Full flow disposable spin-on oil filter, for extra high filtration |
| The lubricating oil level can be measured at start-up |
| Gear type lubricating oil pump, gear driven by the transmission |
Fuel System
| Electronic high pressure unit injectors |
| Fuel prefilter with water separator and water-in-fuel indicator / alarm |
| Gear driven low-pressure fuel pump |
| Fine fuel filter with manual feed pump and fuel pressure switch |
Lubrication System
| Full flow oil cooler |
| Full flow disposable spin-on oil filter, for extra high filtration |
| The lubricating oil level can be measured at start-up |
Gear type lubricating oil pump, gear driven by the transmission |
Cooling System
Belt Driven, Maintenance-Free Coolant Pump With High Degree Of Efficiency |
Efficient Cooling With Accurate Coolant Control Through A Water Distribution Duct In The Cylinder Block |
Reliable Thermostat With Minimum Presure Drop |
Cooling Water Pipe, Inlet And Outlet |
Fan Hub |
Alternator Data
| Manufacturer: | CUMMINS/LEROY SOMER/SIEMENS/MARATHON/ENGGA/KEPU |
| Excitation Mode: | Brushless and self- exciting |
| Number of phase and Access Act: | 3-phase 4-wire |
| Connecting Type: | "Y" type connecting |
| Alternator Capacity: | 750KVA |
| Alternator Efficiencies: | 95％ |
| Overload: | (PRP）110% load can run 1h |
Protection Level: | IP22-IP23 |
| Insulation Class, Temperature Rise: | H/H |
Telephone Influence Factor (TIF): | ＜50 |
| THF: | ＜2 |
Voltage Regulation, Steady State | ≤±1% |
| Air Cooling Flow: | 1.035m3/S |
Altitude: | ≤1000m |
Genset Electrical Performance
| Voltage Regulation: | ≥±5% |
Voltage Regulation, Stead State: | ≤±1% |
| Sudden Voltage Warp (100% Sudden Reduce): | ≤+25% |
| Sudden Voltage Warp (Sudden Increase): | ≤-20% |
| Voltage Stable Time (100% Sudden Reduce): | ≤6S |
| Voltage Stable Time (Sudden Increase): | ≤6S |
| Frequency Regulation, Stead State: | ≤5% |
| Frequency Waving: | ≤1.5% |
| Sudden Frequency Warp (100% SuddenReduce): | ≤+12% |
| Sudden Frequency Warp (Sudden Increase): | ≤-10% |
| FrequencyRecoveryTime(100%SuddenReduce): | ≤5S |
| FrequencyRecoveryTime(Sudden Increase): | ≤5S |
Standard Control Panel
 | Dingbo Standard Control Panel uses micro processing technique integrating digital, intelligent and network techniques which can carry out functions including auto start/stop, data measure, alarming. The controller uses LCD display, optional Chinese and English display interface with operation easy and reliable. It can be widely used in all types of generator automatic control system for compact structure, advanced circuits, simple connections and high reliability |
Auto Module Control Panel
 | Auto Module Control Panel is the configuration for nobody on duty controlling generators. This kind of panel adopts auto module control system, with large LCD display to show the menu. Features: 6110 can receive remote output signal from ATS and realize auto start and stop of generators. 6310 can realize all functions of 6110, add RS232 interface which can communicate with PC to realize remote operation. 6410 Auto Mains Failure controller, can realize all functions of 6310, furthermore can detect ATS and control directly. |
Auto Parallel Control Panel
 | This new automatic parallel system adopts intelligent modules, inserted and folded installed, no need the peripheral relay and logic circuit. The main switch adopts electronic breaker or frame breaker, combined together with the generator, which is very reliable. One generator, one panel. The panel can be used both for singly and parallel. It is only need to parallel generator with such panel when the capability needs to be enlarged in the future. |
