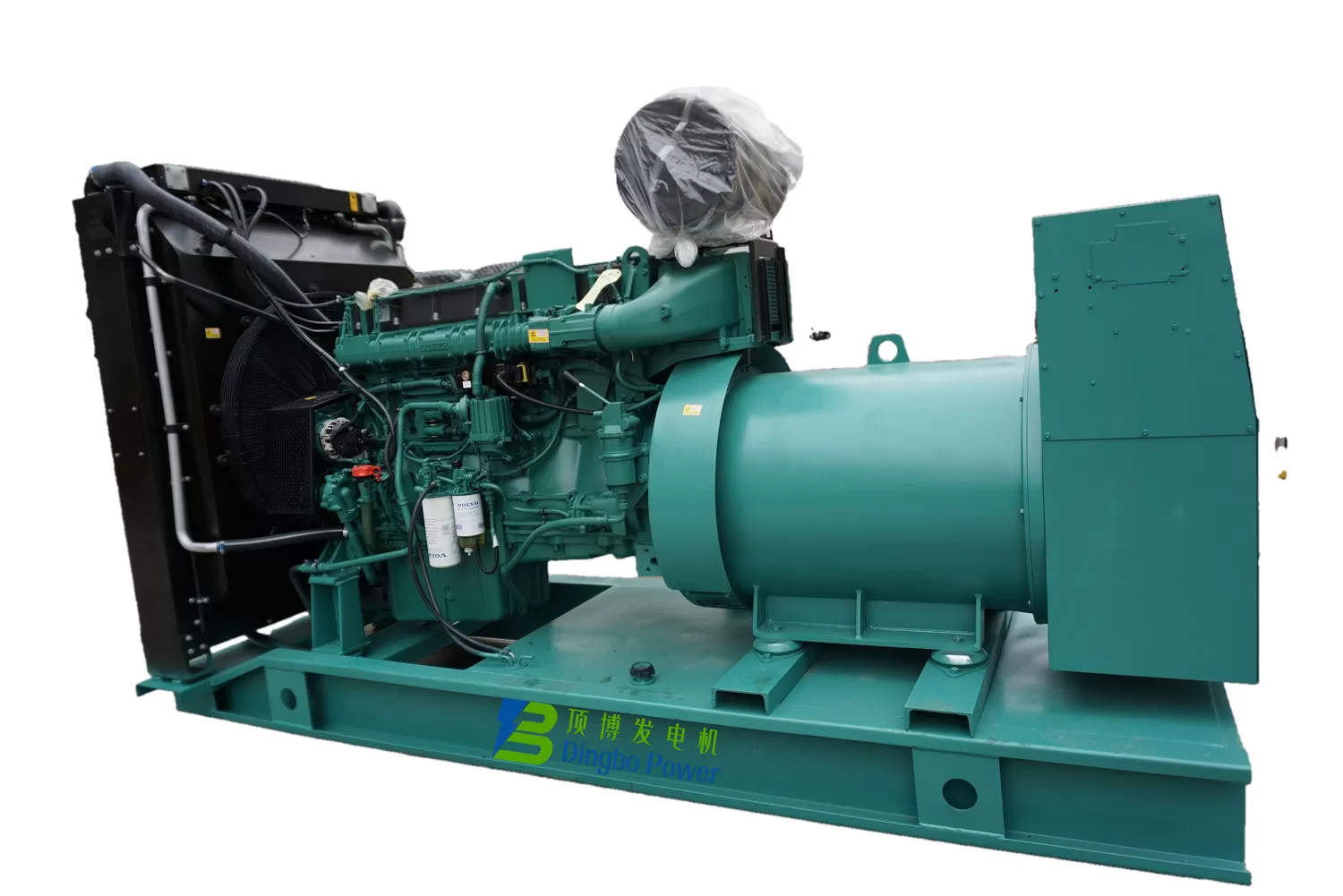

Diesel Generator Set Data
Set Type: DB-280GF
Prime Power: 280KW/350kVA
Standby Power:308KW/385kVA
Rated Current: 505A
Rated Frequency: 50Hz/60Hz
Start-up Time: 5~6 S
Power Fector: 0.8 Lag
Rated Voltage: 400/230 V
Standard Features
Diesel Engine: VOLVO TAD1341GE-B
Radiator 50℃ Max
Fans Are Driven By Belt, With Safety Guard
24V Charge Alternator
Dry Type Air Filter, Fuel Filter, Oil Filter
Alternator: Single Bearing Alternator
IP23, Insulation Class H/H
Main Line Circuit Breaker
Standard Control Panel
Absorber
Muffler
User Manual
Technical Data Of Diesel Engine | |
Manufacturer: | Volvo |
Model: | TAD1341GE-B |
Prime Power: | 275KW/294KW |
Standby Power: | 302KW/324KW |
Rated Speed: | 1500/1800 r/min |
No. Of Cylinders: | In-line 6 |
Method Of Operation: | 4-Strock |
Displacement: | 12.78L |
Bore And Stroke: | 131*158mm |
Compression Ratio: | 18.1:1 |
Governor Type: | Electronic |
Start Battery Voltage: | 24V DC |
Dry Weight: | 1325kg |
Wet Weight: | 1790kg |
Lubrication System
Oil Consumption Prime Power: | 0.04/0.05 Liter/h |
Oil Consumption Standby Power: | 0.04/0.05 Liter/h |
Oil System Capacity Incl Filters: | 36 Liter |
Fuel System
Fuel Consumption Prime Power1500/1800 rpm: | |
25% | 230/237 g/kWh |
50% | 202/211 g/kWh |
75% | 195/202 g/kWh |
100% | 191/200 g/kWh |
Fuel Consumption Standby Power1500/1800 rpm: | |
25% | 226/242 g/kWh |
50% | 200/209 g/kWh |
75% | 194/201 g/kWh |
100% | 191/200 g/kWh |
| Fuel filters of disposable type | |
Electronic unit injectors | |
Pre-filter with water separator | |
Lubrication System
Oil dipstick |
Full-flow oil filter of spin-on type |
By-pass oil filter of spin-on type |
Oil cooler, side mounted |
Low noise oil sump |
Cooling System
Radiator incl intercooler |
Coolant pump |
| Fan hub |
Pusher fan |
| Fan/Belt guard |
Engine Management System (EMS) with CAN-bus interface SAE J1939 |
