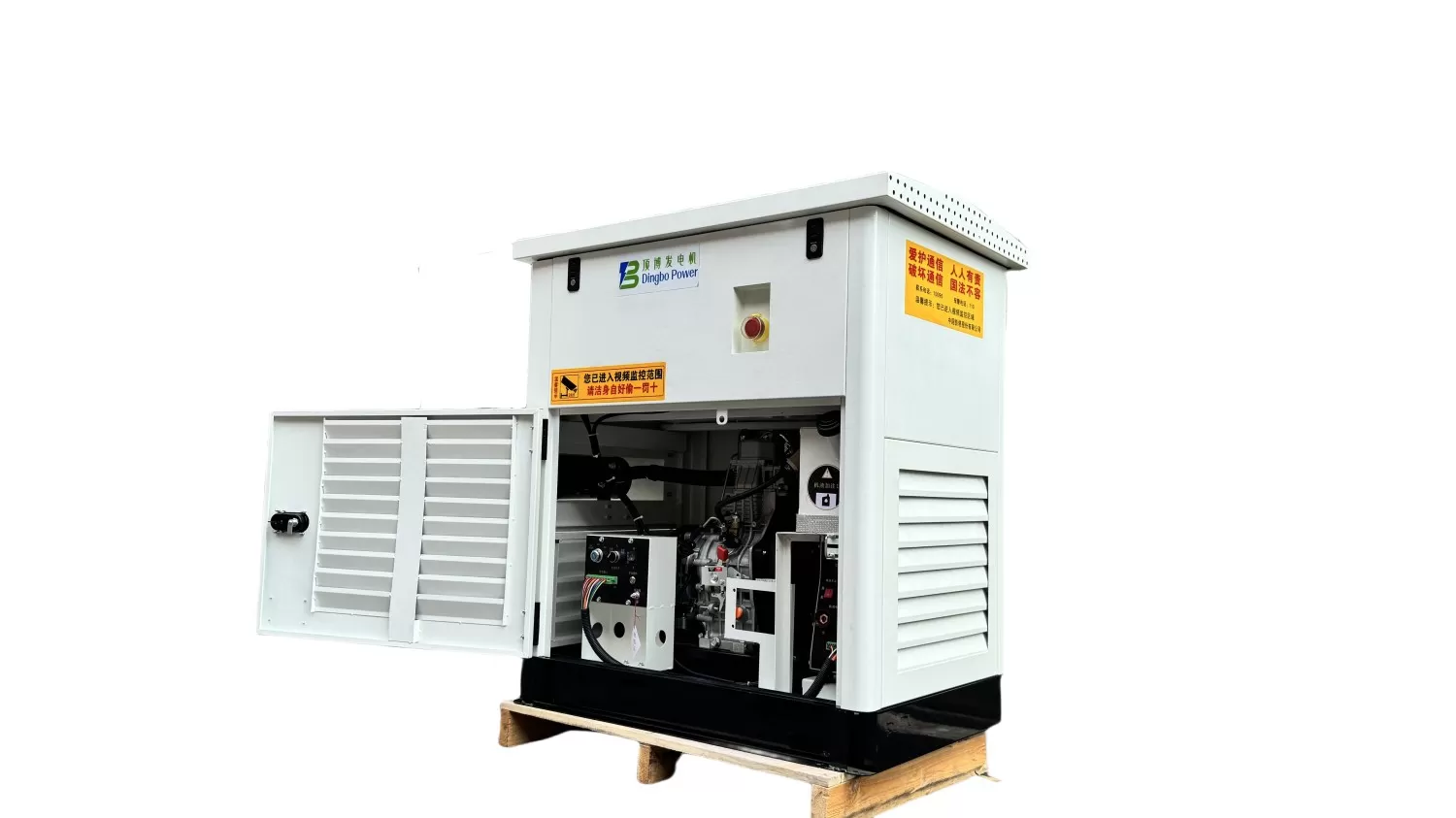

Model: DB-48V-200A
Rated Current: 0-200A (Adjustable)
Output voltage: -48V~-58V
Automatic start voltage: 45V~53V(adjustable)
Engine Starting type: Manual Recoil/Electric
Monitoring interface: RS485
Fuel type: Diesel
For more types, please contact us.
Features:
1. Diesel single-cylinder engine with permanent magnet generator (fuel-efficient).
2. Capable of self-start and self-stop.
3. Supports remote signaling, remote measurement, and remote control of the diesel generator via RS485.
4. Provides constant-current and constant-voltage output for loads and battery charging.
5. Monitoring screen supports configurable data display as required.
6. Output protection: Over-voltage, over-current, and short-circuit protection.
7. Features include: Alarm records, fuel level detection, mains power detection, battery status detection, etc.
Technical specifications:
| Genset Model | DB-48V-200A | |
| Engine | Engine Model | KD1105F |
| Cooling Type | 1 Cylinder,4-stroke,air-cooled | |
| Fuel Type | Diesel 0#(Summer),-10#（Winter） | |
| Oil Capacity(L) | 2.5 | |
| Oil Alarm | √ | |
| Oil Type | CD/10W-30、15W-40 | |
| Starting Type | Electric Start | |
| Battery | 12V-45AH Maintenance-free Battery | |
| Alternator | Output Voltage(V) | -48～-58 |
| Ouput Current(A) | 0-150A（Adjustable） | |
| Alternator Type | PMG Alternator | |
| DC Genset | Fuel Tank(L) | 40 |
| Running Time（H） | 8 | |
| Running Temperature（℃) | -20℃+40℃ | |
| Auto-start Voltage(V) | 45V-53V（Adjustable） | |
| Monitor Interface | 485 | |
| Parallel Function | √ | |
| Auto-stop Voltage(V) | Detection of mains failure or battery voltage 45V-53V(Adjustable) | |
| Noise Level(dBA/7M) | 97 | |
| Dimensions(MM) | 1030X705X992 | |
| Weight | 195kg | |
Safety and Reliability Advantages of diesel DC generators:
1. Higher ignition point safety
Diesel fuel has a higher ignition point (220°C) and boiling point. It remains stable, non-volatile, and is less likely to ignite accidentally or explode, significantly enhancing fire safety.
2. Lower output voltage
The generator outputs low-voltage DC (max. 100V), far safer than traditional AC generators (220V-380V).
3. Ambient temperature monitoring & auto-shutdown
The DC genset is equipped with ambient temperature detection (configurable range: 50°C–90°C). It can automatically shut down when cabinet temperature reaches the set threshold.
4. Integrated automatic fire suppression
The cabinet contains fire extinguishing balls that activate instantly at 93°C to suppress internal fires.
5. Solenoid-controlled fuel shutoff
The diesel DC generator features an electromagnetic fuel valve that automatically closes upon engine shutdown. This eliminates manual fuel cutoff (required in AC generators), preventing continuous fuel supply during malfunctions or fires.
6. Fused signal wiring with short-circuit protection
All signal output lines of the diesel DC genset are fused. The genset can automatically halt operation during short circuits for system protection.
7. Flame-retardant wiring
All output cables use certified flame-retardant materials.
