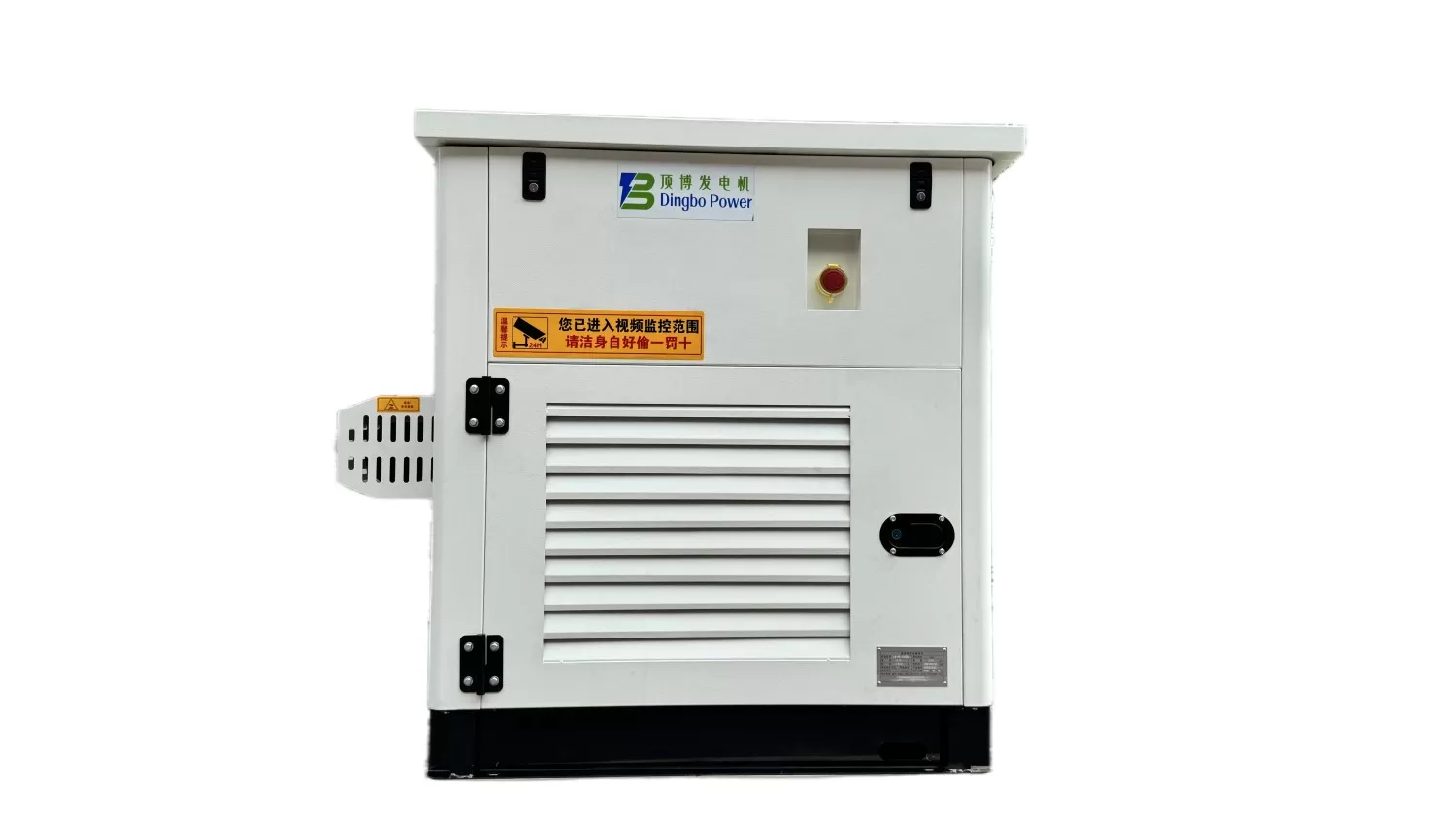

Model: DB-48V-100A
Rated Current: 0-100A (Adjustable)
Output voltage: -48V~-58V
Automatic start voltage: 45V~53V(adjustable)
Engine Starting type: Manual Recoil/Electric
Monitoring interface: RS485
Fuel type: Diesel
For more types, please contact us.
Features:
1. Diesel single-cylinder engine with permanent magnet generator (fuel-efficient).
2. Capable of self-start and self-stop.
3. Supports remote signaling, remote measurement, and remote control of the diesel generator via RS485.
4. Provides constant-current and constant-voltage output for loads and battery charging.
5. Monitoring screen supports configurable data display as required.
6. Output protection: Over-voltage, over-current, and short-circuit protection.
7. Features include: Alarm records, fuel level detection, mains power detection, battery status detection, etc.
Technical specifications:
| Genset Model | DB-48V-100A | |
| Engine | Engine Model | KD192F |
| Cooling Type | 1 Cylinder,4-stroke,air-cooled | |
| Fuel Type | Diesel 0#(Summer),-10#（Winter） | |
| Oil Capacity(L) | 1.7 | |
| Oil Alarm | √ | |
| Oil Type | CD/10W-30、15W-40 | |
| Starting Type | Manual Recoil/Electric Start | |
| Battery Capacity | 12V-32AH Maintenance-free Battery | |
| Alternator | Output Voltage(V) | -48～-58 |
| Ouput Current(A) | 0-100A（Adjustable） | |
| Alternator Type | PMG Alternator | |
| DC Genset | Fuel Tank Capacity(L) | 40 |
| Running Time（H） | 8 | |
| Running Temperature（℃) | -20℃+40℃ | |
| Auto-start Voltage(V) | 45V-53V（Adjustable） | |
| Monitor Interface | 485 | |
| Parallel Function | √ | |
| Auto-stop Voltage(V) | Detection of mains failure or battery voltage 45V-53V(Adjustable) | |
| Noise Level (dBA/7M) | 90 | |
| Dimensions(MM) | 1030X705X992 | |
| Weight(kg) | 160 | |
