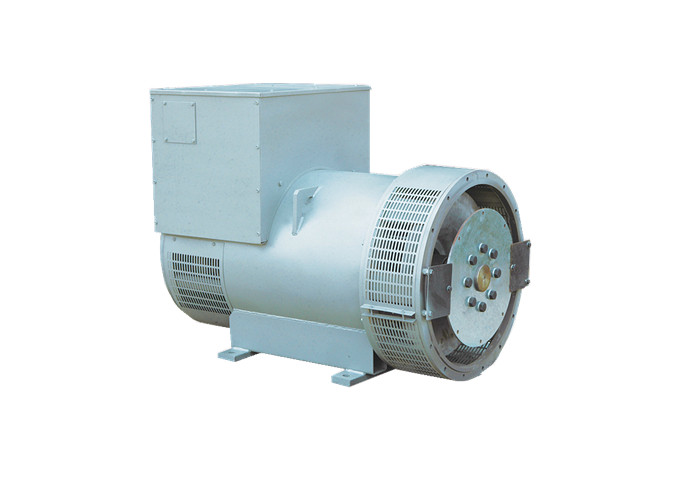

Dingbo TFW Series Generator

Dingbo TFW Series Generator

Excellent Electrical Performance


Steady state voltage regulation ≤4 ± 0.1%

Transient voltage regulation rate ≤± 20% - 15%

Voltage setting range ≥10%UN

The line-voltage sinusoidal waveform distortion rate ≤5%

Ratio of voltage warp (Three phase loads are out of balanced) ≤5%


Excellent Structural Design


The integral salient-pole rotor is used; use special designs for iron-core ventilation; the windings are solid and have good performance in thermal radiating. The rotor has a full-damping. the generator works stable in a parallel running together with another generator. Use cylindncal steel base. The appearance of the product is novel and delicate. High-accuracy A.V.R (Automatic voltage a regulation system) is equipped on the generator. While the generator runs in a parallel mode, the AVR plays an important role. It regulates the output voltage of the generator to a rated value. The A.V.R which is integral sealed, also has the function of the low-frequency preventing from damp, mildew and salt mist. These series generator can be divided into many kinds by the difference in overall structure. By bearing, single bearing and two bearings. By equipment, single machine (equipped with excitation box) and (Equipped with control box). The end cover of the driving end is provided with two structures, one is a convex end of the end cover, and the other is an end cap and a connecting seat which are cast into an integral whole, so as to facilitate top install the genset directly.



Working Conditions


Ambient air temperature ≤40°C

Altitude ≤1000m

Rated frequency and speed: 50Hz/1500r/min; 60Hz/1800r/min

Rated voltage: 400/230(V), 3-phase 4-wire system

The relative temperature of air ≤90%


Dingbo TFW Series Electric Generator Technical Parameters


Type



Rated Power

(KW)

Rated Capacity

(KVA)

Reted Voltage

(V)

Rated Frequency (Hz)



Rated Speed

(r/min)

Power Factor

(Lag)

Insulation Class

Protection Class

Efficiency

(%)

TFW2-30-4A

30

37.5

400/230

50

1500

0.8

H/H

IP21

86.8

TFW2-50-4A

50

62.5

400/230

50

1500

0.8

H/H

IP21

86.8

TFW2-75-4A

75

93.75

400/230

50

1500

0.8

H/H

IP21

90.3

TFW2-100-4A

100

125

400/230

50

1500

0.8

H/H

IP21

90.6

TFW2-120-4A

120

150

400/230

50

1500

0.8

H/H

IP21

91.7

TFW2-150-4A

150

187.5

400/230

50

1500

0.8

H/H

IP21

93.3

TFW2-200-4A

200

250

400/230

50

1500

0.8

H/H

IP21

92.7

TFW2-250-4A

250

312.5

400/230

50

1500

0.8

H/H

IP21

93.5

TFW2-300-4A

300

375

400/230

50

1500

0.8

H/H

IP21

94.4

TFW2-400-4A

400

500

400/230

50

1500

0.8

H/H

IP21

94.7

TFW2-500-4A

500

625

400/230

50

1500

0.8

H/H

IP21

94.9

TFW2-600-4A

600

750

400/230

50

1500

0.8

H/H

IP21

93.6

TFW2-800-4A

800

1000

400/230

50

1500

0.8

H/H

IP21

94.2

TFW2-1000-4A

1000

1250

400/230

50

1500

0.8

H/H

IP21

94.9

TFW2-1200-4A

1200

1500

400/230

50

1500

0.8

H/H

IP21

96

TFW2-1500-4A

1500

1875

400/230

50

1500

0.8

H/H

IP21

96.3


Single bearing


Single bearings.jpg

Double bearing


Double bearings.jpg
