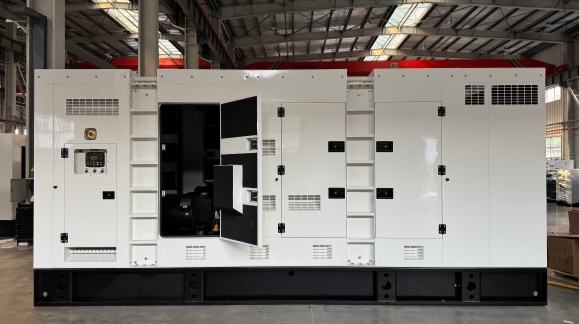

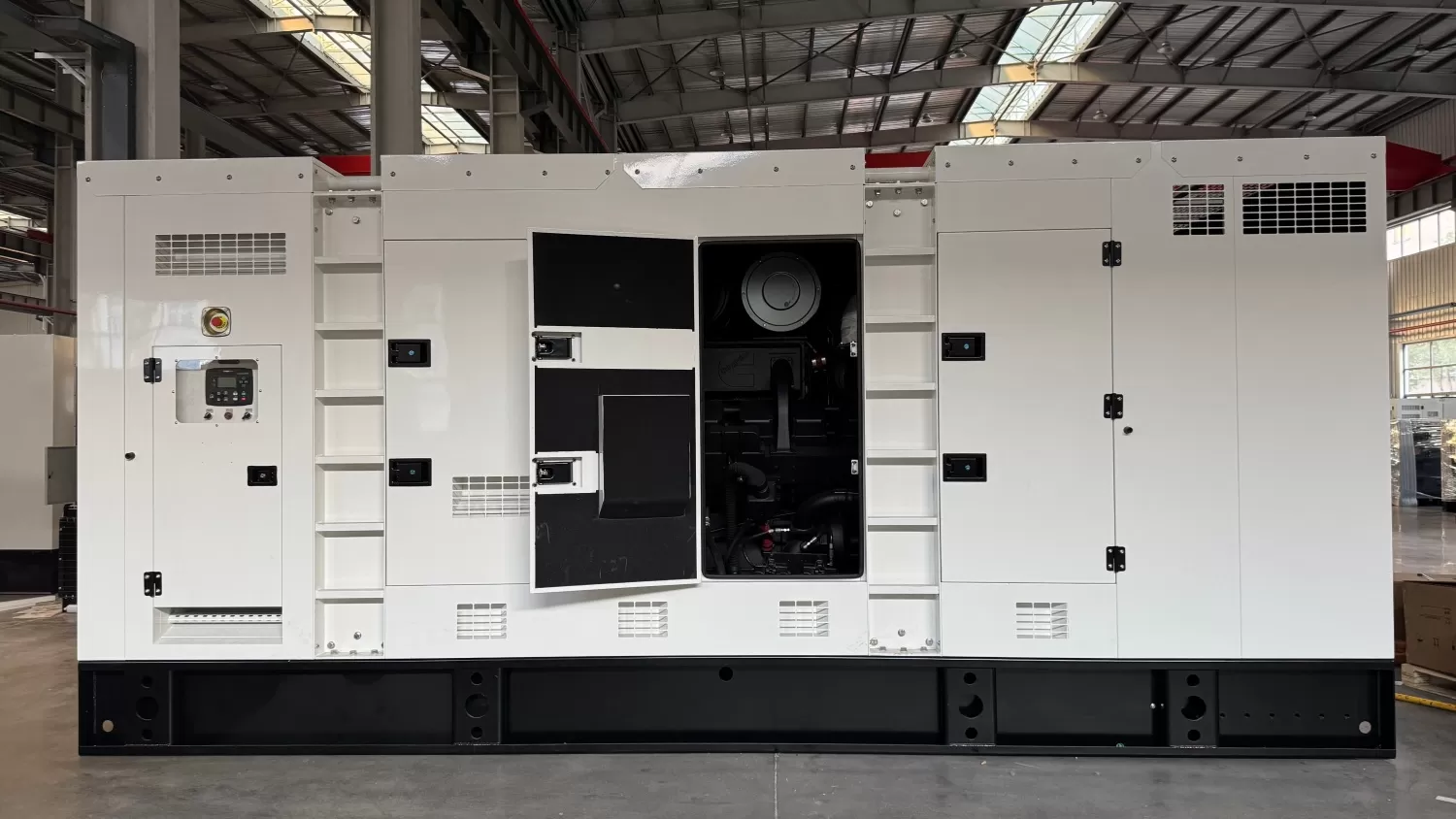

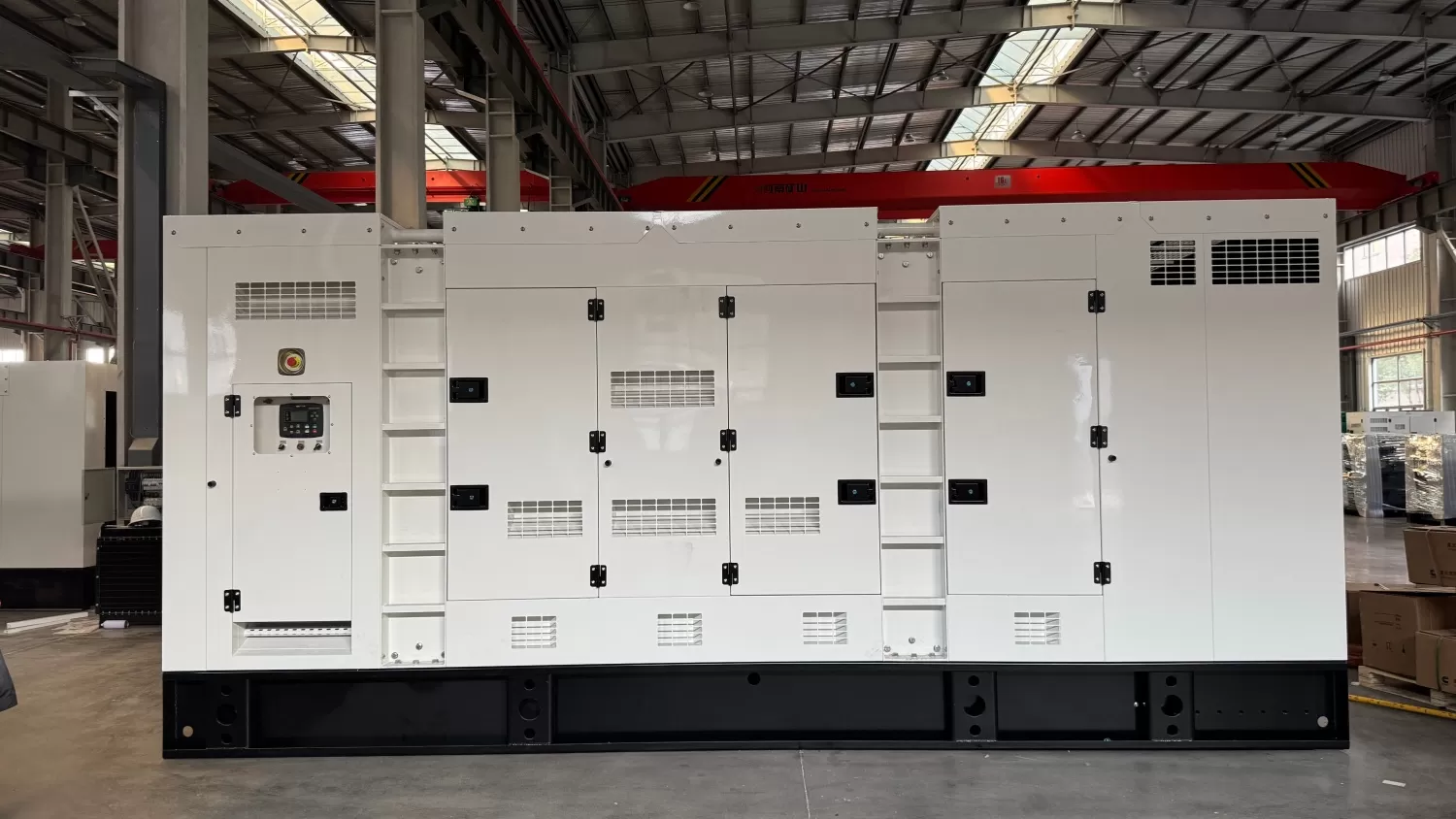

800kw Silent Diesel Generator
Model: DB-800GF
Prime power: 800KW/1000KVA
Rated current: 1440A
Rated frequency: 50Hz/60Hz
Power factor: 0.8lag
Rated voltage: 380~480V
For more types, please contact us.
Dingbo Power is a professional manufacturer specializing in diesel generator sets. We can produce customized generator sets fully according to customers’ requirements. We are authorized supporting supplier of well-known engine brands including Cummins, Perkins, Deutz, Weichai, Shangchai and Yuchai, as well as famous alternator brands such as Stanford and Leroy Somer. The configuration of silent diesel generator can be reasonably recommended based on customers’ application environment and budget. Our silent canopy is made of 2mm galvanized steel plate, which features corrosion resistance, rust resistance and fade resistance. Filled with 5cm high-density sound absorption cotton inside, the noise of unit can be reduced to 75dB at 7 meters. This 800kW silent diesel generator set is equipped with built-in 8-hour working fuel tank at the bottom.

| Technical Parameters | |
| Item | Specification |
| Rated Power | 800 kW / 1000 kVA |
| Voltage | 220V / 380V / 400V / 415V (customizable) |
| Frequency | 50Hz / 60Hz |
| Engine Brand | Cummins / Perkins / Weichai / Yuchai |
| Alternator | Stamford / Leroy-Somer / OEM |
| Phase | 3 Phase |
| Cooling System | Water-cooled |
| Noise Level | ≤ 75 dB(A) at 7 meters |
| Fuel Tank | 8–12 hours running |

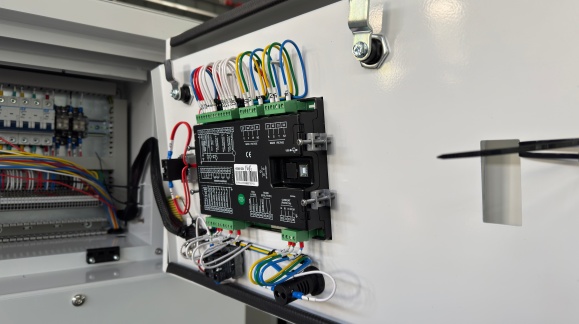

| Control Panel | Smart controller / ATS optional |
| Enclosure Type | Soundproof & Weatherproof |
The advantages of 1000kva silent diesel generator:
Official authorized supporting matching, genuine brand engines and alternators, stable power output and long service life.
2mm thick galvanized steel silent enclosure, strong anti-corrosion performance, not easy to rust and fade, suitable for long outdoor use.
High-efficiency 5cm sound insulation cotton, excellent noise reduction effect, low noise 75dB measured 7 meters away, meeting environmental noise standards.
Built-in large capacity 8-hour fuel tank, supporting long-time continuous emergency power supply.
Flexible personalized customization, freely collocate brand configuration according to construction site, climate and budget.
Perfect shock absorption design, good heat dissipation performance, convenient installation and simple daily maintenance.
Factory direct sales, reliable quality, complete supporting after-sales service and stable long-term operation.

Large industrial plants, mining sites and manufacturing enterprises standby power supply
Data centers, communication base stations uninterrupted emergency power
Hospitals, schools, hotels and residential areas with strict noise requirements
Large commercial complexes, municipal engineering and infrastructure construction
Outdoor engineering construction, temporary power supply for large-scale projects
Remote power shortage areas, island power supply and disaster emergency power support
High-rise buildings, airports, railways and other important public facilities backup power
Why Choose Dingbo Power 1000kVA diesel generator set?
We are professional original diesel generator manufacturer with complete authorized matching qualifications for famous engine and alternator brands. Flexible customized power solution, reasonable configuration matching according to site environment and budget.High-quality thick galvanized silent canopy, superior noise reduction performance, durable corrosion-resistant structure and built-in long-working-hour fuel tank.Stable power supply, reliable product quality, simple maintenance and thoughtful after-sales service. We provide safe, energy-saving and long-lasting standby power for global customers.
