Dingbo 400kW 500kVA Silent Diesel Generator

Dingbo 400kW 500kVA Silent Diesel Generator

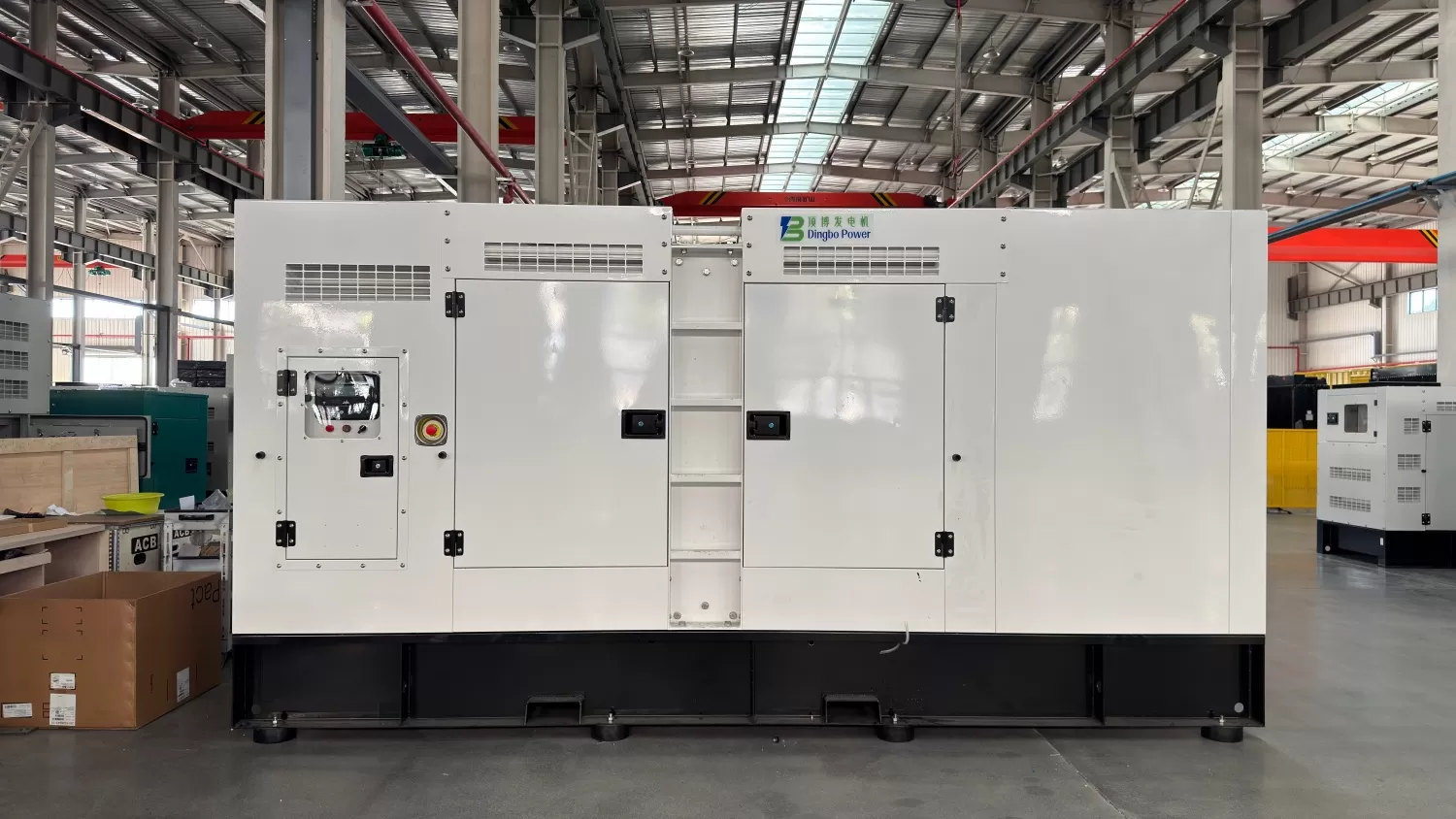

The soundproof canopy of the 400kW silent diesel generator set is made of 2mm galvanized steel plate, featuring excellent corrosion resistance, which is not easy to rust or fade, making it suitable for long-term outdoor use in various harsh environments. The interior of the canopy is filled with 5cm thick high-density sound-absorbing cotton, which can effectively isolate and absorb the noise generated during unit operation, reducing the noise level to 75 decibels at 7 meters, perfectly meeting the noise requirements of most indoor and outdoor scenarios.


The advantages of 500kVA diesel generator:


1. Ultra-Quiet Operation — The 400kw 500kva silent genset features a fully enclosed soundproof canopy lined with 5cm high-density sound-absorbing foam, effectively reducing noise to ≤75 dB at 7 meters. This makes it ideal for residential neighborhoods, hospitals, hotels, schools, and other noise-sensitive environments.



2. Durable Galvanized Steel Enclosure — Constructed from 2mm galvanized steel, the enclosure offers superior resistance to corrosion, rust, and fading. The heavy-duty design ensures long service life even in harsh outdoor conditions, including high humidity, dust, and rain exposure.



3. Extended Runtime with 8-Hour Fuel Tank — The integrated base fuel tank provides up to 8 hours of continuous operation at full load, minimizing downtime and reducing the need for frequent refueling during extended power outages or remote operations.



4. Multiple Engine & Alternator Options — As an authorized OEM partner for well-known engines and alternators such as Cummins, Perkins, Deutz, Weichai, Shanghai, Yuchai, Stamford, and Leroy-Somer, Dingbo offers flexible configuration options to suit different performance requirements and budgets-.



5. User-Friendly Maintenance — The canopy features wide-opening access doors for easy inspection, servicing, and parts replacement. All service points are conveniently located for routine maintenance access.


Dingbo 400kW 500kVA Silent Diesel Generator


Technical Parameters
ItemSpecification
Rated Power400 kW / 500 kVA
Voltage220V / 380V / 400V / 415V (customizable)
Frequency50Hz / 60Hz
Engine BrandCummins / Perkins / Weichai / Yuchai
AlternatorStamford / Leroy-Somer / OEM
Phase3 Phase
Cooling SystemWater-cooled
Noise Level≤ 75 dB(A) at 7 meters
Fuel Tank8–12 hours running
Control PanelSmart controller / ATS optional
Enclosure TypeSoundproof & Weatherproof


The 400kW silent diesel generator is widely used in:


Diesel Generator

400kW Silent Diesel Generator – Reliable Power for Your Needs

Looking for a powerful, silent, and efficient diesel generator? Our Dingbo Power 400KW Silent Diesel Generator is the ideal choice for both commercial and industrial applications, offering:


Prime Power: 400KW / 500KVA, providing reliable power to keep your operations running smoothly.

Rated Current: 720A, designed to meet your heavy-duty electrical needs.

Versatile Frequency: 50Hz/60Hz, adaptable to different requirements across regions.

Power Factor: 0.8 lag, ensuring consistent and reliable performance.

Rated Voltage: 380~480V, perfect for a variety of power setups.

Transport Package: Securely packed in plastic film and plywood case for safe delivery.

Why Choose the Dingbo Power 400kW Silent Diesel Generator?

Silent Operation: Ideal for noise-sensitive environments, ensuring minimal disruption to surrounding areas.

Durability: Built for long-lasting performance, this generator will be your reliable partner for years.

Energy Efficiency: The DB-400GF provides excellent fuel economy, reducing long-term operational costs.

Easy Maintenance: Simple setup and low maintenance requirements, making it a hassle-free solution.


Whether for backup power or off-grid applications, the 400kW Silent Diesel Generator is your ultimate solution. Order now to secure this high-performance generator and keep your business running smoothly even during power outages!


Dingbo 400kW 500kVA Silent Diesel Generator

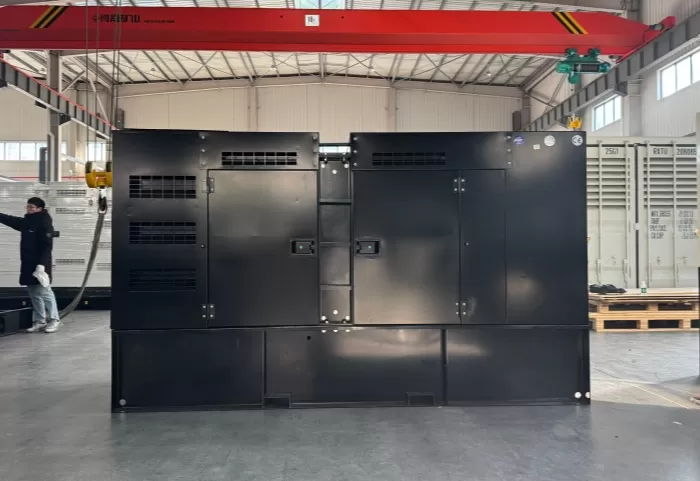

Dingbo 450kW 563kVA Silent Diesel Generator
