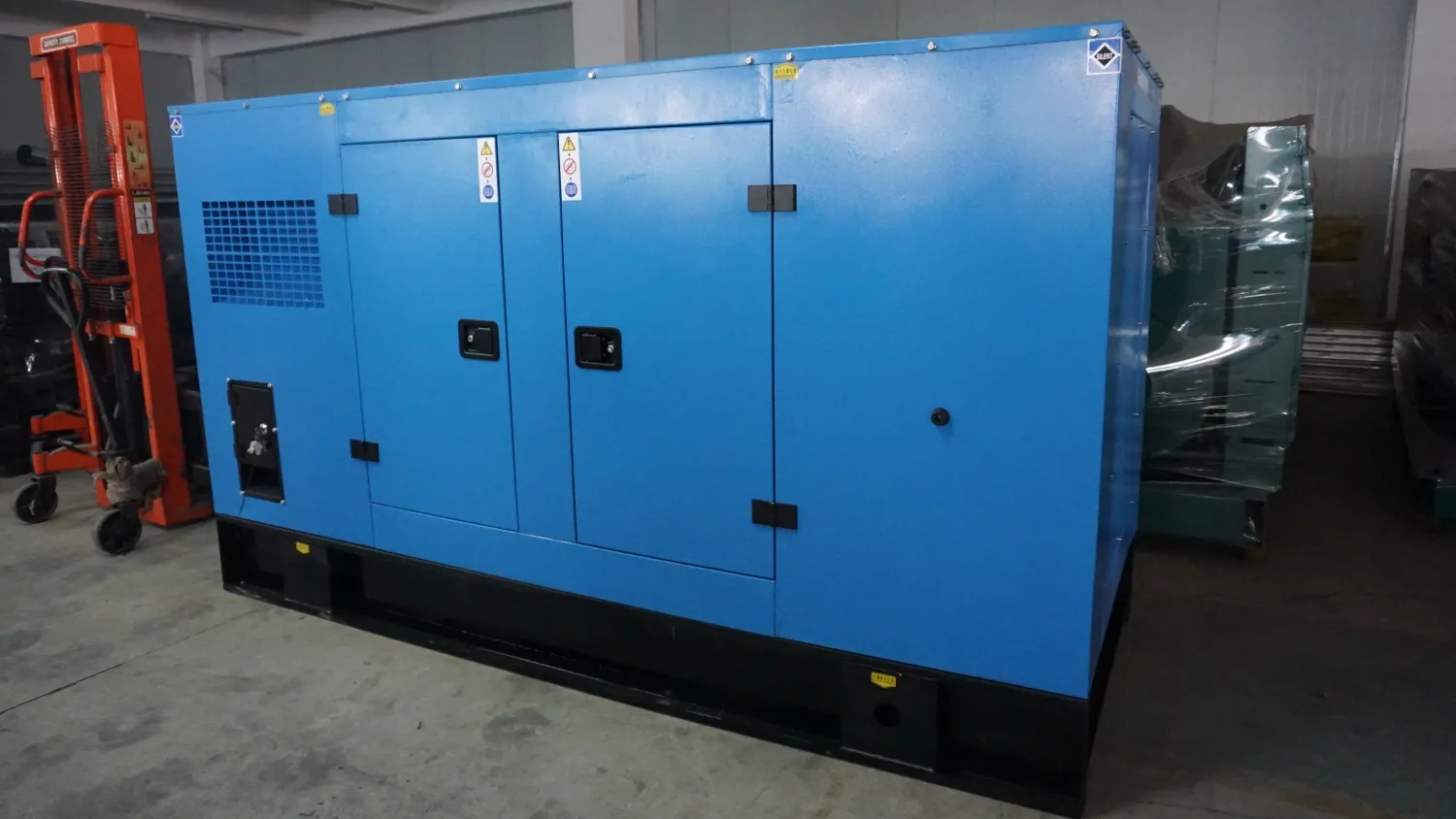

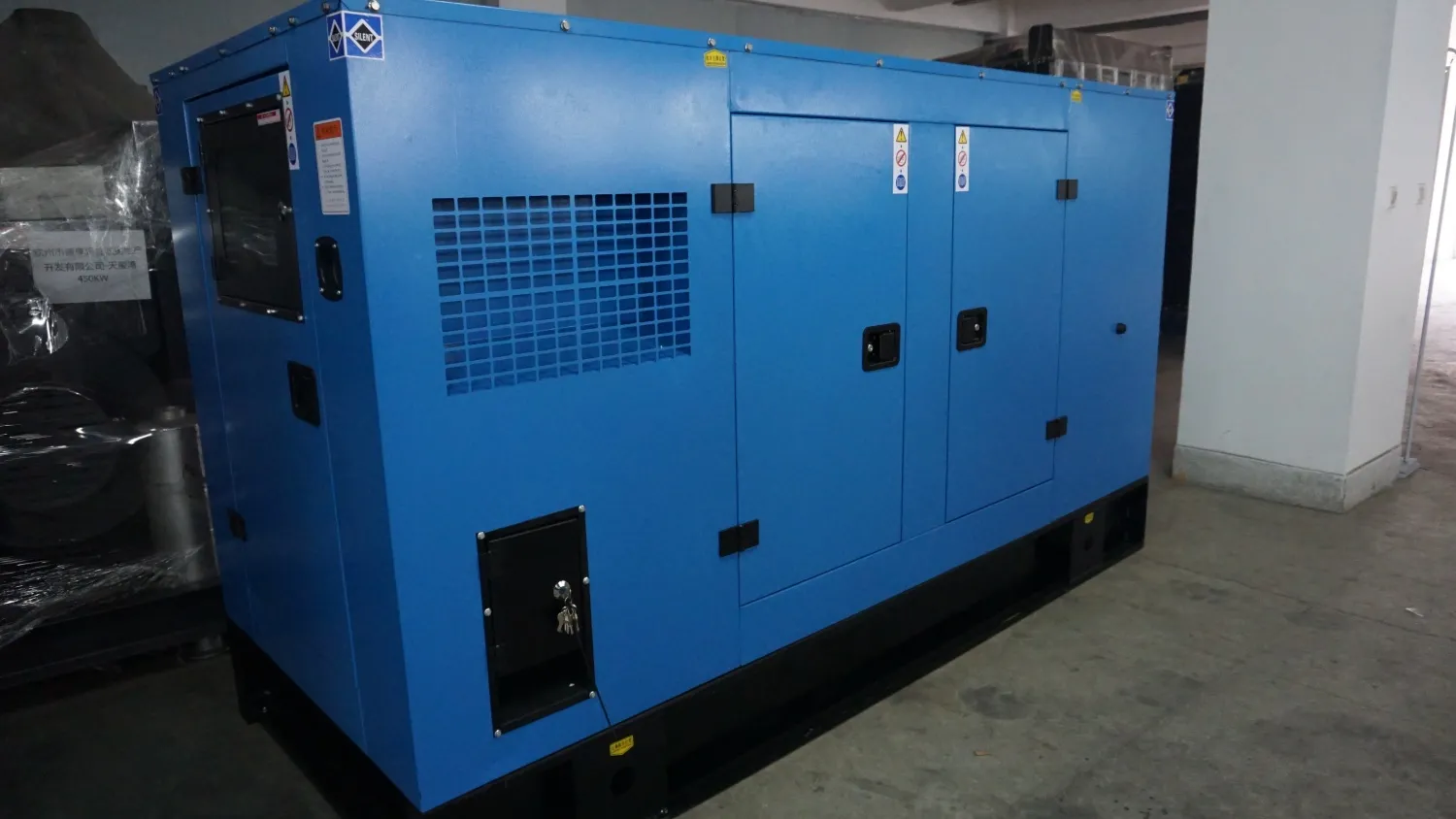

120kw Silent Diesel Generator
Model: DB-120GF
Prime power: 120KW/150KVA
Rated current: 216A
Rated frequency: 50Hz/60Hz
Power factor: 0.8lag
Rated voltage: 380~480V
For more types, please contact us
Introduction:
As a professional diesel generator set manufacturer, Dingbo Power is committed to providing high-quality, reliable and customized power solutions for global customers. Our 120KW silent diesel generator set is meticulously designed to meet the diverse power needs of various scenarios, combining powerful performance with ultra-low noise operation. We are an authorized supporting manufacturer of world-renowned engine brands such as Cummins, Perkins, Deutz, Weichai, Shangchai and Yuchai, as well as well-known generator brands including Stamford and Leroy-Somer. This ensures that every core component of our generator set has passed strict quality inspections and enjoys excellent performance and durability. Whether you have special requirements for power output, noise control, operating environment or budget, we can tailor the most suitable configuration plan for you, bringing stable and efficient power support to your work and life.
Advantages:
Authorized Core Components, Stable and Reliable: As an authorized supporting manufacturer of internationally renowned engine and generator brands, we select original genuine components to assemble each 120KW silent diesel generator set. The engines (Cummins, Perkins, Deutz, etc.) are famous for their strong power, high fuel efficiency and long service life, with excellent reliability and durability even in harsh working conditions. The generators (Stamford, Leroy-Somer, etc.) feature low voltage fluctuation, strong anti-harmonic ability and stable power output, which can effectively protect precision equipment from voltage impact. All components are perfectly matched to ensure the long-term stable operation of the unit with low failure rate.

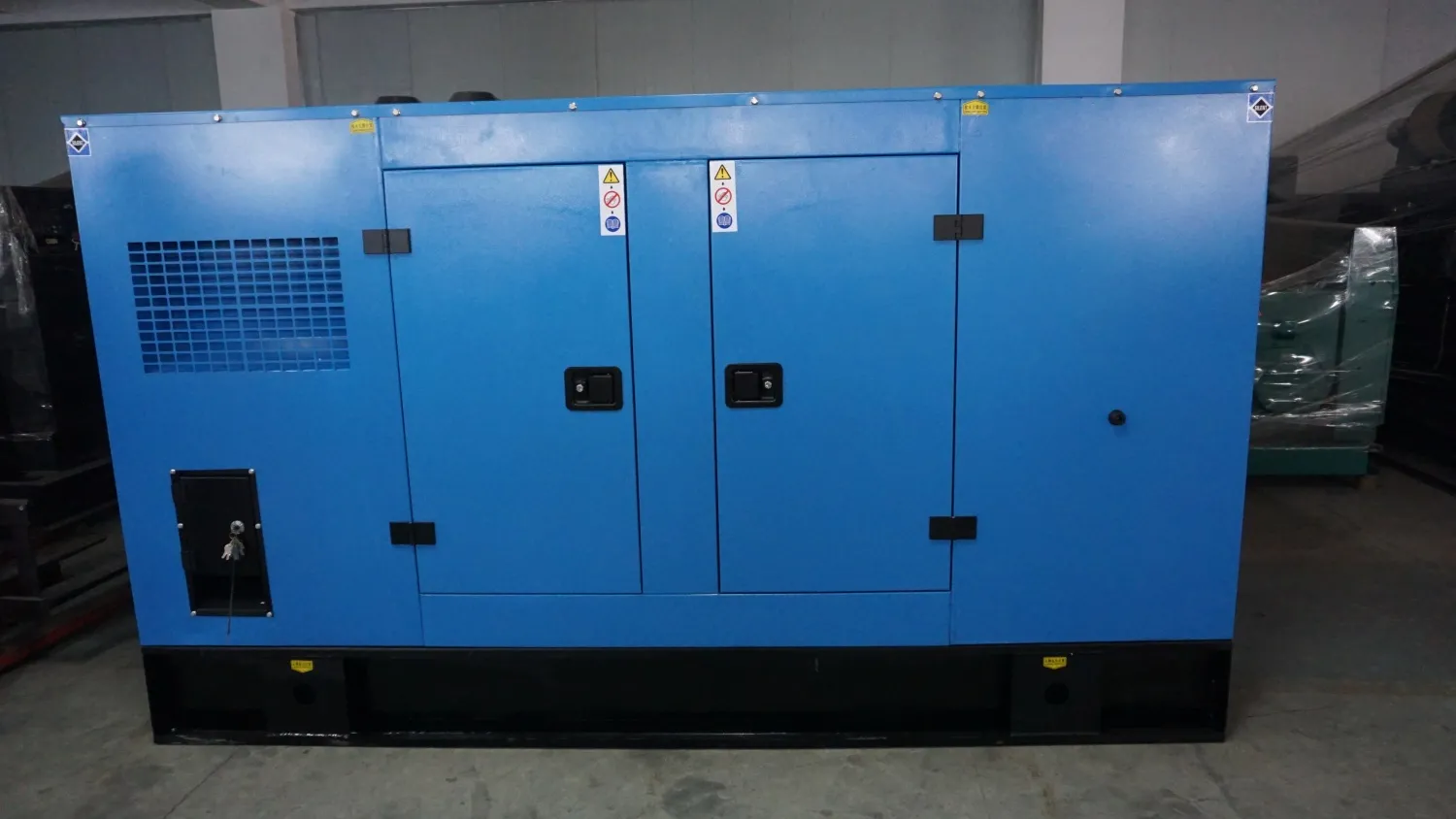

Professional Silent Design, Comfortable and Environmentally Friendly: The silent box of the generator set is made of 2mm galvanized steel, which has excellent corrosion resistance, is not easy to rust and fade, and can adapt to various harsh outdoor and indoor environments, extending the service life of the unit significantly. The interior of the silent box is filled with 5cm high-density sound-absorbing cotton, which is in the "golden thickness range" for medium and high-frequency noise absorption, with a noise reduction coefficient (NRC) of 0.75-0.85, effectively reducing the noise of the unit to 75 decibels at 7 meters. Combined with professional shock absorption devices and impedance composite mufflers, the unit achieves triple protection of sound insulation, sound absorption and shock absorption, avoiding noise pollution and creating a quiet operating environment.
Humanized Configuration, Convenient to Use: The bottom of the generator set is equipped with an 8-hour fuel tank, which meets the industry standard of daily fuel tank capacity, allowing the unit to run continuously for 8 hours at rated power without frequent refueling, greatly improving work efficiency and reducing operation trouble. The integrated design of the fuel tank and the base makes the overall structure compact, saving installation space and facilitating transportation and placement. In addition, the silent box is designed with detachable panels and inspection doors, which is convenient for daily maintenance and repair of the unit.
Customizable Configuration, Flexible and Adaptable: We deeply understand that different customers have different needs for generator sets. According to your specific use scenarios (such as indoor/outdoor, high temperature/high altitude, emergency backup/long-term operation), budget and other requirements, we can flexibly recommend and adjust the configuration of the 150kVA silent diesel generator set, including engine brand, generator model, fuel tank capacity, control system and other aspects, to achieve the best cost performance and meet your personalized power needs.
Technical Parameters:
| Item | Specification |
| Rated Power | 120 kW /150 kVA |
| Voltage | 220V / 380V / 400V / 415V (customizable) |
| Frequency | 50Hz / 60Hz |
| Engine Brand | Cummins / Perkins / Weichai / Yuchai |
| Alternator | Stamford / Leroy-Somer / OEM |
| Phase | 3 Phase |
| Cooling System | Water-cooled |
| Noise Level | ≤ 70 dB(A) at 7 meters |
| Fuel Tank | 8–12 hours running |
| Control Panel | Smart controller / ATS optional |
| Enclosure Type | Soundproof & Weatherproof |
Applications:
The 120KW 150kVA silent diesel generator set of Dingbo Power, with its ultra-low noise, stable performance and flexible configuration, is widely used in various fields that have strict requirements on noise and high requirements on power stability, including but not limited to:
Commercial and Residential Fields: Shopping malls, hotels, office buildings, residential communities, etc. It is used as an emergency backup power source to ensure the normal operation of lighting, air conditioning, elevators, electronic equipment and other facilities in case of sudden power failure, avoiding economic losses and inconvenience caused by power outage.
Medical and Educational Fields: Hospitals, clinics, schools, universities, etc. It provides stable and reliable emergency power for medical equipment (such as operating room equipment, monitoring instruments), teaching equipment and daily life facilities, ensuring that medical treatment and teaching work can be carried out normally without being affected by power outage.
Industrial and Mining Fields: Factories, workshops, mines, construction sites, etc. It is suitable for places where the power grid is unstable or there is no power supply. It provides continuous power support for production equipment, construction machinery and other equipment, ensuring the smooth progress of production and construction. The silent design also reduces the impact of noise on on-site workers.
Public Infrastructure: Communications base stations, railway stations, airports, water supply and drainage systems, etc. It serves as a backup power source to ensure the normal operation of public facilities, maintain the smoothness of communication and transportation, and ensure the basic needs of people's life.
Outdoor and Emergency Scenarios: Outdoor activities, temporary construction sites, emergency rescue sites, etc. The compact structure and convenient transportation of the unit, combined with the 8-hour continuous operation capacity, can quickly provide power support in emergency situations, solving the problem of temporary power shortage.
Choose us:
Looking for a powerful, silent, and efficient diesel generator? Our Dingbo Power 120kW Silent Diesel Generator is the ideal choice for both commercial and industrial applications, offering:
Prime Power: 120KW / 150KVA, providing reliable power to keep your operations running smoothly.
Rated Current: 216A, designed to meet your heavy-duty electrical needs.
Versatile Frequency: 50Hz/60Hz, adaptable to different requirements across regions.
Power Factor: 0.8 lag, ensuring consistent and reliable performance.
Rated Voltage: 380~480V, perfect for a variety of power setups.
Transport Package: Securely packed in plastic film and plywood case for safe delivery.
Silent Operation: Ideal for noise-sensitive environments, ensuring minimal disruption to surrounding areas.
Durability: Built for long-lasting performance, this generator will be your reliable partner for years.
Energy Efficiency: The DB-120GF genset provides excellent fuel economy, reducing long-term operational costs.
Easy Maintenance: Simple setup and low maintenance requirements, making it a hassle-free solution.
Whether for backup power or off-grid applications, the 150kVA Silent Diesel Generator is your ultimate solution. Order now to secure this high-performance generator and keep your business running smoothly even during power outages!
