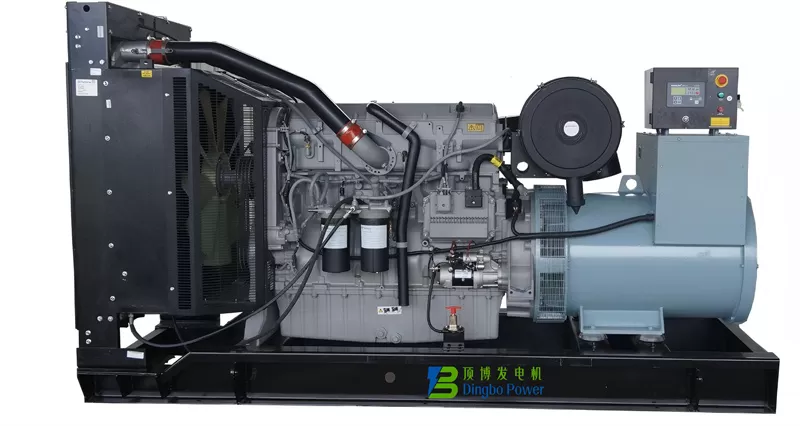

30kVA/24kW Perkins Diesel Generator Set

This 24kW/30kVA Perkins Diesel Generator is powered by a Perkins 1103A-33G engine, delivering reliability and excellent performance. Ideal for diverse residential/commercial applications. This generator set ensures dependable performance and efficiency for your power needs.

Standard Features

1. Engine: Perkins 1103A-33G

2. Radiator 50℃ max

3. Fans are driven by belt, with safety guard

4. 24V charge alternator

5. Dry type air filter, fuel filter, oil filter

6. Alternator: single bearing alternator

7. IP23, insulation class H/H

8. Main line circuit breaker

9. Standard control panel

10. Absorber

11. Muffler

12. User manual

Diesel Engine Data
Manufacturer:	Perkins
Model:	1103A-33G
Prime Power:	28KW
Standby Power:	30KW
Rated Speed:	1500（r/min）
Cycle:	4 stroke
Cylinder Arrangement:	3, vertical in-line
Displacement:	3.3L
Bore and Stroke:	105*127（mm）
Compression Ratio:	19.25:1
Governor Type:	Mechanical/Electronic
Start battery voltage:	12V DC
Air Intake System
Air Intake System:	Naturally Aspriated
Fuel System
Fuel System:	Direct injection
100%( Prime Power) Load:	7.2L/h
50%( Prime Power) Load:	4.06L/h
Oil System
Total lubricating capacity:	8.3L
Cooling System
Cooling Way:	Water-cooled
Total Coolant Capacity(with radiator):	10.2L
Alternator Data
Manufacturer:	LEROY SOMER/ STAMFORD/ SIEMENS/ MARATHON/ ENGGA/ Shanghai Stamford
Excitation Mode:	Time harmonic wave excitation
Number of phase and Access Act:	3-phase 4-wire
Connecting Type:	"Y" type connecting
Alternator Capacity:	30KVA
Alternator Efficiencies:	95％
Overload:	（PRP）110% load can run 1h
Protection Level:	IP22-IP23
Insulation Class, Temperature Rise:	H/H
Telephone Influence Factor (TIF):	＜50
THF:	＜2%
Voltage Regulation, Steady State:	≤±1%
Altitude:	≤1000m
Genset Electrical Performance
Voltage Regulation:	≥±5%
Voltage Regulation, Stead State:	≤±1%
Sudden Voltage Warp (100% Sudden Reduce):	≤+25%
Sudden Voltage Warp (Sudden Increase):	≤-20%
Voltage Stable Time (100% Sudden Reduce):	≤6S
Voltage Stable Time (Sudden Increase):	≤6S
Frequency Regulation, Stead State:	≤5%
Frequency Waving:	≤1.5%
Sudden Frequency Warp (100% SuddenReduce):	≤+12%
Sudden Frequency Warp (Sudden Increase):	≤-10%
FrequencyRecoveryTime(100%SuddenReduce):	≤5S
FrequencyRecoveryTime(Sudden Increase):	≤5S
Options
Engine	Alternator
Heater 2KW & 4KW	Anti Condensation Heater
Battery Charger 3.5A & 7A	Permanent Magnet Generator（PMG）
Water Separator	Drop CT（For Paralleling）
Daily Fuel Tank
Fuel Level Sensor
Control System	Others
Remote Control Panel	Rainproof Type
Auto Transfer Switch (ATS)	Soundproof Type
Paralleling System	Trailer Type
Open Type
Overall Size	Weight
1500(mm)*730(mm)*1150(mm)	800(kg)
Soundproof Type
Overall Size	Weight
2200(mm)*940(mm)*1530(mm)	1150(kg)

Standard Control Panel

DINGBO Standard Control Panel uses micro processing technique integrating digital, intelligent and network techniques which can carry out functions including auto start/stop, data measure, alarming. The controller uses LCD display, optional Chinese and English display interface with operation easy and reliable. It can be widely used in all types of generator automatic control system for compact structure, advanced circuits, simple connections and high reliability

Auto Module Control Panel
	Auto Module Control Panel is the configuration for nobody on duty controlling generators. This kind of panel adopts auto module control system, with large LCD display to show the menu. Features: 6110 can receive remote output signal from ATS and realize auto start and stop of generators. 6310 can realize all functions of 6110, add RS232 interface which can communicate with PC to realize remote operation. 6410 Auto Mains Failure controller, can realize all functions of 6310, furthermore can detect  ATS and control directly.
Auto Parallel Control Panel
	This new automatic parallel system adopts intelligent modules, inserted and folded installed, no need the peripheral relay and logic circuit. The main switch adopts electronic breaker or frame breaker, combined together with the generator, which is very reliable. One generator, one panel. The panel can be used both for singly and parallel. It is only need to parallel generator with such panel when the capability needs to be enlarged in the future.
