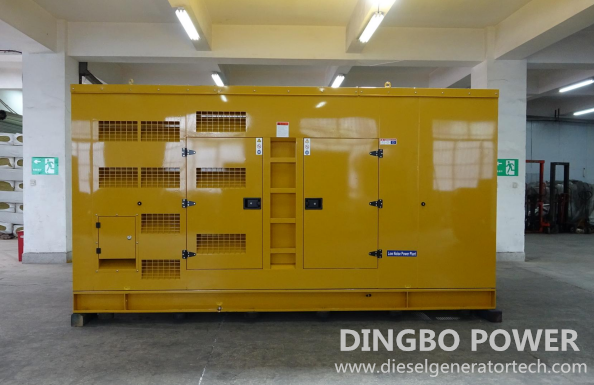

Recently, Dingbo Power factory has just finished two sets of 500kVA diesel generator sets. Both of the generator sets are powered by a Shangchai diesel engine and paired with a Dingbo alternator. This powerful combination ensures stable and consistent power output, making it ideal for prime or standby power applications in demanding environments. They will be delivered to a valued client in Algeria later.
Manufacturer: Guangxi Dingbo Power Equipment Manufacturing Co.,Ltd
Genset model: DB-400GF
Type : Silent type
Prime Rating Power: 500KVA/ 400KW
Standby Rating Power: 550KVA/ 440KW
Rated current: 720A
Rated voltage: 400/230V
Rated speed/frequency: 1500rpm/50Hz
Power factor: 0.8lag
Phase: 3 phase 4 wire
Diesel engine: Shangchai 6ETAA12.8-G310
Alternator: Dingbo DB-400
Controller: SmartGen HGM6120CAN-4G-G
| Manufacturer: | Shangchai |
| Engine model | 6ETAA12.8-G310 |
| Prime power: | 450KW |
| Standby power: | 495KW |
| Frequency/Speed: | 50Hz/1500RPM |
| Number of Cylinders: | 6, in-line |
| Engine Type | 4 stroke, diesel engine, water-cooled |
| Aspiration: | Turbocharged & air-to-air intercooled |
| Displacement: | 12.8L |
| Compression ratio | 16:1 |
| Governor | Electronic speed control |
| Bore x Stroke(mm): | 130 x 161 |
| Start mode: | Electric start |
| Starter motor: | 24V DC |
| Combustion type: | Direct infection |
| Fuel consumption at standby power | 100%:119.5 L/H |
| Fuel consumption at prime power | 100%:107.5 L/H 75%:78.7 L/H 50%:54.3 L/H 25%:30.7 L/H |
| Oil pan capacity-High/ Low level | 36L/31L |
| Coolant Capacity (Engine Only): | 23.2L |
The advanced controller SmartGen HGM6120CAN-4G-G model enables comprehensive monitoring and control of the generator set. Crucially, it is configured to receive a three-phase, four-wire mains power detection signal, allowing for seamless automatic start-up and transfer during a utility power failure. This ensures minimal disruption to the client's operations.
To maximize operational convenience and runtime, each diesel generator set is equipped with a substantial 750-liter base fuel tank. This integrated design reduces the need for frequent refueling and simplifies the overall installation process. Furthermore, an 800A Automatic Transfer Switch (ATS) is mounted directly onto the silent canopy, creating a compact and fully integrated power solution.
Understanding the importance of environmental compatibility, especially in noise-sensitive areas, Dingbo Power is manufacturing these units within its signature silent canopies. Constructed from robust 2mm thick galvanized steel sheet, the enclosures are built for longevity and corrosion resistance. Most impressively, the acoustic engineering ensures remarkably low noise levels, with the gensets operating at just 75 dB(A) measured from 7 meters away. This silent characteristic makes them suitable for installation near residential areas, hospitals, hotels, or office buildings without causing noise pollution.
Dingbo Power is a professional manufacturer of generator sets in China with almost 20 years’ production experience. We are the OEM partner for many well-known engine and alternator companies, such as Cummins, Weichai, Yuchai, etc. We are able to deliver robust and reliable power generation solutions tailored to specific customer needs with a competitive price. If you are looking for a diesel generator for your project, contact us today.
