Technical Parameters of Boduan 500KW Weichai Generator Set 6M33D572E200

May. 07, 2025

The 6M33D633E200 diesel engine is a special-purpose diesel engine for land-based power generation in the M33 series. It is a new-structure power generation diesel engine with a centrally - located turbocharger developed by Weichai Power Co., Ltd. in 2016.

Continuous Power (COP): The maximum power at which the diesel engine can run continuously under a constant load with no limit on the annual operating hours. It is the ISO standard power.

Prime Power (PRP): The maximum power at which the diesel engine can run continuously under variable loads with no limit on the annual operating hours. It is an ISO standard power that allows a 10% overload.

Standby Power (ESP): The maximum power in a certain variable - power series that the diesel engine can operate for up to 200 hours per year. It is an ISO standard power with limited fuel consumption.

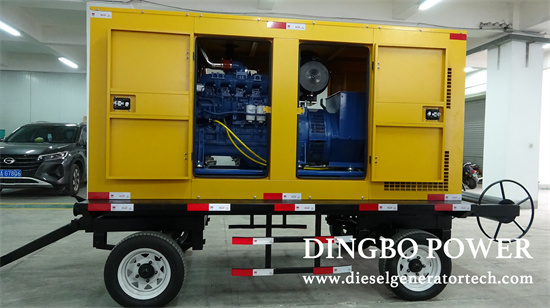

Weichai generator


Operating Conditions and Applications of Baudouin 500KW Weichai Generator Set Diesel Engine

Power ClassificationOperating ConditionsApplications
Continuous Power
COP
460kW
1. There is no limit on the annual operating hours.
2. It operates under a constant 100% load and can operate under high - temperature and high - altitude conditions.
3. It has no overload capacity.
It can operate under high - temperature and high - altitude conditions.
Prime Power
PRP
572kW
1. There is no limit on the annual operating hours.
2. The average load factor cannot exceed 70% within each 250 - hour period.
3. The operation at 100% load cannot exceed 500 hours per year.
4. It can operate at a 10% overload for 1 hour within every 12 hours, and the cumulative overload operation per year cannot exceed 25 hours.
It is used when the power output is pre - agreed, such as in the case of public power reduction. The generator set can be connected to the public utility grid.
Standby Power
ESP
633kW
1. The annual operating hours do not exceed 200 hours, including no more than 25 hours of operation at 100% load per year.
2. The average load factor cannot exceed 80% within each 24 - hour operating cycle. It provides emergency power supply during power outages.
3. It has no overload capacity.
4. The diesel engine has no warm - up process during startup. It needs to accelerate from startup to the rated speed within 10 seconds. For naturally aspirated diesel engines, when the ambient temperature is below 5°C, pre - heating facilities are required to ensure that the diesel engine's outlet water temperature is above 30°C; when the ambient temperature is above 5°C, no pre - heating facilities are needed. For turbocharged diesel engines, when the ambient temperature is below 10°C, pre - heating facilities are required to ensure that the diesel engine's outlet water temperature is above 30°C; when the ambient temperature is above 10°C, no pre - heating facilities are needed.
It provides emergency power supply during power outages.


Note: It is strictly prohibited to use the engine beyond the above - mentioned operating conditions.


Technical Parameters of Baudouin 500KW Weichai Generator Set

Diesel Engine Model: 6M33D633E200

Diesel Engine Type: V - type, 4 - stroke, water - cooled, turbocharged and intercooled

Number of Cylinders/Number of Valves: 6/24

Bore/Stroke: 150mm/185mm

Compression Ratio: 15:1

Displacement: 19.6L

Continuous Power: 460 kW

Rated Power: 575kW

Overload Power: 633kW

Rated Speed: 1500r/min

Idle Speed: [The value is not given in the original text]

Firing Order: 1 - 5 - 3 - 6 - 2 - 4

Crankshaft Rotation Direction: Counter - clockwise (viewed from the flywheel end)

Starting Method: DC24V electric start

Starter Power/Voltage: 8.5kW/24V

Speed Regulation Method: Electronic speed regulation

Cooling Method: Water - cooled

Minimum Allowable Coolant Temperature for Engine Body Operation: 50°C

Coolant Capacity of the Engine Itself: 41.63L

Oil Pan Capacity: 60.5L (subject to the oil dipstick)

Net Weight of the Engine (kg): 2090

Overall Dimensions (Length × Width × Height) (mm): 2254 x 1138 x 1528 (see the outline drawing)



Main Performance Parameters of Baudouin Weifang Diesel Engine

Steady - state Speed Regulation Rate: Electronic: ≤3%;

Rated Speed Fluctuation Rate: ≤0.5%

Idle Speed Fluctuation Rate: ≤4.5%

Fuel Consumption at Rated Conditions: ≤210g/kW·h

Ratio of Oil to Fuel Consumption: ≤0.5%
