Dingbo Signed Contract for 1800KW MTU Silent Diesel Generator Set

Aug. 07, 2023


Recently, Dingbo Power signed a contract with an engineering construction company for 1800kw MTU silent diesel generator set. Thanks for the customer's support in this cooperation.


The engineering construction company was founded in 1993, business scope includes construction engineering, municipal engineering, mechanical and electrical equipment installation, decoration engineering contracting, etc. Over the past 43 years, Dingbo Power company has always provided good product and technical support and good after-sales service for our customers.



The 1800KW MTU silent genset has reasonable structure design, modular structure design, convenient maintenance, excellent engine load response characteristics, and meets the national emission standard. There is no need to do additional purification and dust removal treatment. The noise level is 80dB @7m, which meets the National noise index. Our technicians will be responsible for installation, commissioning and technical operation training.

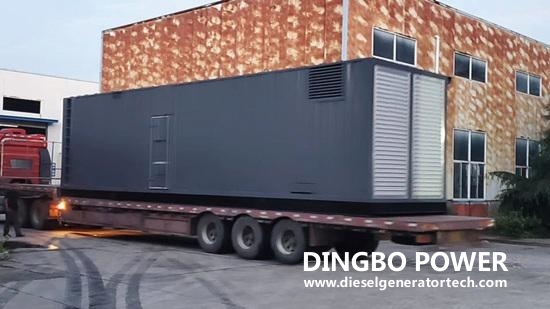

  box diesel generator


The supply list of 1800KW MTU silent diesel generator set includes 1800kw genset, MTU engine, Marathon alternator, Deep Sea controller, rubber shock absorber, water tank( 50℃), 200AH battery(4 pcs), 220V battery charger, silencer, bellows, Oil water separator, water jacket heating equipment(2KW), silent case, fuel tank 2000L, output cabinet switch, ABB circuit breaker, accessories: instrument, transformer, etc.



Technical specifications for silent type 1800KW MTU diesel generator set

Manufacturer: Guangxi Dingbo Generator Set Manufacturing Co.,Ltd.

Genset model: DB-1800GF

Type: silent type ( weather & soundproof)

Prime power: 1800KW

Rated voltage: 230/400V

Rated frequency: 50Hz

Rated current: 3240A

Overall size: 9x2.6x2.78m

Net weight: 15000kg



The special treatment technology of MTU/DDC on cylinder block can completely avoid the influence of high sulphur content of domestic diesel oil on diesel engine. It also ensures that in a large number of practical use in China, the MTU continuous operation failure time record is more than 10 times higher than that of other international advanced EFI diesel engines.



MTU/DDC's unique electronic management system can detect the hidden trouble of diesel engine all the time. It can show 385 fault codes.The type of fault diagnosis is several times higher than that of other international advanced EFI diesel engines.



Max. availability, minimum downtime and max. efficiency in 24/7 continuous use. Compared with the EU stage III A / EPA Tier 3, the series 1600, 2000 and 4000 save 5% fuel and the engine's life is up to 20%.



Technical specifications for MTU diesel engine

Manufacturer: MTU

Engine model: 16V4000G23

Engine power: prime/standby: 1980KW/2475KW

Number of cylinder: 16

Capacity of oil: 300L

Fuel consumption: 192g/KW.h



Technical specifications for Marathon alternator

Manufacturer: Marathon

Model: MX-1800-4

Rated speed: 1500rpm

Type: Brushless self excitation

Bearing: single bearing

Alternator efficiency: above 95%

Protection level: IP23

Insulation class:H



Technical data for Deep Sea controller

Manufacturer: Deep Sea    make: UK

Model: DSE7320



Dingbo power generator set power range is from 20KW to 2750KW, if you interested in diesel generator set, welcome to contact us by email sales@dieselgeneratortech.com.
