In May 2024, a valued Ecuadorian client placed an order for a 120kW silent-type diesel generator set with Dongbo Power. The generator set mainly consists of a Cummins diesel engine, a genuine Stamford alternator and a SmartGen controller. It is capable of operating in environments requiring low noise levels and uninterrupted power supply.
Manufacturer: Guangxi Dingbo Power Equipment Manufacturing Co.,Ltd
Genset model: DB-120GF
Type : Silent type
Prime Rating Power: 150KVA/ 120KW
Standby Power: 165KVA/ 132KW
Rated current: 394A
Rated voltage: 220V
Rated speed/frequency: 1800rpm/60Hz
Power factor: 0.8lag
Phase: 3 phase 4 wire
MCB breaker: 630A
Base bottom fuel tank: 280Liters
Noise level: 75dBA at 7 meters
Canopy material: Made of 2mm thick Galvanized steel, no rust, not easily discolored.
| Manufacturer: | Dongfeng Cummins Engine Co.,Ltd |
| Engine model | 6BTAA5.9-G2 |
| Prime power: | 132KW |
| Standby power: | 145KW |
| Frequency/Speed: | 60Hz/1800RPM |
| Cylinders no. & Type: | 6, In line, 4 stroke, diesel engine, water-cooled with radiator with fan |
| Aspiration: | Turbocharged |
| Displacement: | 5.9L |
| Compression ratio | 17.3:1 |
| Governor | Electronic speed control |
| Bore x Stroke(mm): | 102 x 120 |
| Start mode: | Electric start |
| Starter motor: | 24V DC, negative ground |
| Battery Charging Alternator | 40Amps |
| Type Injection System: | Direct injection |
| Fuel Filter | Spin-on fuel filters |
| Lube Oil Filter Type(s) | Spin-on full flow filter |
| Fuel consumption at standby power | 100%: 34L/h |
| Fuel consumption at prime power | 100%: 30L/h 75%: 23L/h 50%: 16L/h 25%: 9L/h |
| Total Lubrication System Capacity | 16.4L |
| Engine Coolant Capacity | 9.9L |
Manufacturer : Cummins Generator Technologies Co.,Ltd
Alternator model: Stamford UCI274E14
Prime power: 150KVA/ 120KW
Rated Voltage: 220V
Frequency/Speed: 60Hz/1800RPM
Wire connecting method: Y type, 3 phase 4 wire
Power Factor: 0.8lag
Efficiency: 94.7%
Regulator: AVR
Rotor: Single/double bearing
Exciter type: Brushless self excited
Winding Pitch: 2/3
Voltage regulation: ±1.0 %
Protection: IP23
Insulation class: H
Temperature rise grade: H

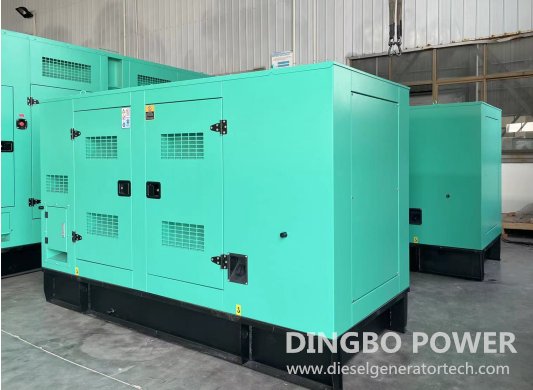

This 120kW diesel engine generator is housed in a specially engineered soundproof canopy, ensuring noise levels of 75dB(A) at 7 meters—a critical feature for urban installations or noise-sensitive areas.
Key specifications of the unit include:
Built-in ATS: Ensures seamless transition between grid and generator power, minimizing downtime during outages.
280L base fuel tank: Provides extended runtime, reducing the need for frequent refueling.
Durable silent canopy design: Combines noise-dampening materials with weather-resistant construction for outdoor reliability.
The diesel generating set adheres to strict international performance and safety certifications, making it ideal for Ecuador's diverse climate and operational demands. The integrated ATS system enhances automation, allowing the generator to activate within seconds of a power failure—a vital capability for commercial and industrial facilities prioritizing operational continuity.
Dingbo Power can customize solutions for specific regional needs. The generator’s corrosion-resistant coating and tropicalized cooling system ensure optimal generator performance in humid or coastal environments, common in Ecuador.
With over 18 years of industry experience, Dingbo Power specializes in designing and manufacturing diesel generators ranging from 20kW to 3000kW. Our product portfolio includes open-type, silent, containerized, and trailer-mounted generators, etc., serving clients across 80+ countries. Dingbo Power generator sets have been widely used in telecommunications, construction, healthcare, manufacturing and other sectors.
For inquiries about customized generator solutions, contact our sales team at [email protected].
