In late December 2024, a valued client from Mexico placed an order for a 100kW diesel generator with Dingbo Power. The generator set is engineered for critical backup or prime power applications requiring quiet operation and robust performance. It’s mainly powered by a Cummins engine and paired with a Stamford alternator.
Manufacturer: Guangxi Dingbo Power Equipment Manufacturing Co.,Ltd
Genset model: DB-100GF
Type : Silent type
Prime Rating Power: 125KVA/ 100KW
Standby Rating Power: 138KVA/ 110KW
Rated current: 150A
Rated voltage: 480/277V
Rated speed/frequency: 1800rpm/60Hz
Power factor: 0.8lag
Phase: 3 phase 4 wire
Diesel engine: Cummins 6BT5.9-G2
Alternator: Original Stamford UCI274C14
Controller: SmartGen HGM6110N
Noise level: 75dBA at 7 meters
| Manufacturer: | Dongfeng Cummins Engine Co.,Ltd |
| Engine model | 6BT5.9-G2 |
| Prime power: | 115KW |
| Standby power: | 127KW |
| Frequency/Speed: | 60Hz/1800RPM |
| Cylinders no. & Type: | 6 cylinders, In line, 4 stroke, diesel engine, water-cooled with radiator with fan |
| Aspiration: | Turbocharger |
| Displacement: | 5.9L |
| Compression ratio | 17.3:1 |
| Governor | Electronic speed control |
| Bore x Stroke(mm): | 102 x 120 |
| Start mode: | Electric start |
| Starter motor: | 12V/24V DC, negative ground |
| Type Injection System: | BYC PB Direct Injection |
| Fuel Consumption standby power @100% | 33.6L/h |
| Fuel consumption at Prime power@25%/ 50% / 75% / 100%: | 9.4L/h / 15.6L/h / 22.2L/h / 29.7L/h |
| Minimum Required Lube System Capacity - Sump plus Filters | 16.4L |
| Maximum oil temperature | 121℃ |
| Cooling way | Water-cooled |
| Coolant capacity- Engine only | 7.9L |
| Standard thermostat (modulating) range | 82~95℃ |
| Maximum top tank temperature for standby / prime power | 104/100℃ |
Manufacturer:Cummins Generator Technologies(China) Co.,Ltd
Model: Original Stamford UCI274C14
Voltage regulator: AVR
Excitation mode: Brushless, self-excited
Rated power factor:0.8
IP class: IP 23
Insulation class: H
Temperature rise class: H
Efficiency: 91.2%
Waveform: TIF<50
Waveform: THF<2%
Winding Pitch: 2/3
The combination of Cummins reliability, Stamford alternator excellence, and our effective soundproofing technology provides an ideal power solution for the Mexican customer’s needs. Designed specifically for the North American market (including Mexico), the unit operates at 60Hz and 1800 RPM, delivering a 3-phase, 4-wire output of 480/277V. This configuration meets the standard voltage requirements for commercial and industrial facilities across the region.

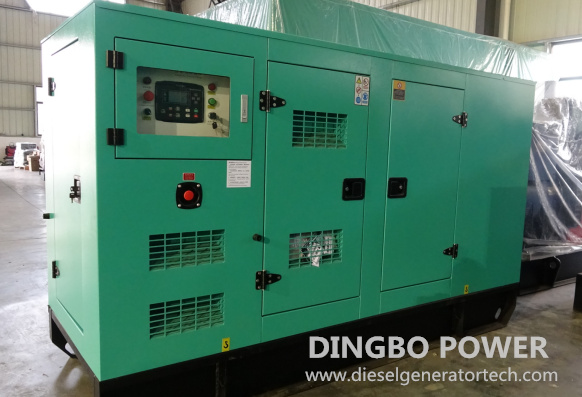

Dingbo Power’s silent enclosure is made of 2mm thick galvanized steel, no rust, not easily discolored. Our noise reduction technology effectively reduces operational noise of the generator set to an impressive 75 dB(A) measured at 7 meters distance. This low noise footprint makes the generator suitable for installations where noise pollution is a significant concern, such as urban environments, hospitals, data centers, or residential complexes.
The unit comes equipped with a substantial built-in base fuel tank providing 8 hours of continuous runtime at full load. The inclusion of a fuel level sensor allows for convenient remote monitoring of fuel status, enhancing operational management and preparedness.
Dingbo Power is a leading manufacturer of diesel and gas generator sets in China. Specializing in generators from 5kW to 3000kW, Dingbo Power offers a comprehensive range of standard and highly customized solutions, including open, silent, trailer-mounted, and containerized units. If you are looking for a high quality and cost-effective power generator, contact us today.
