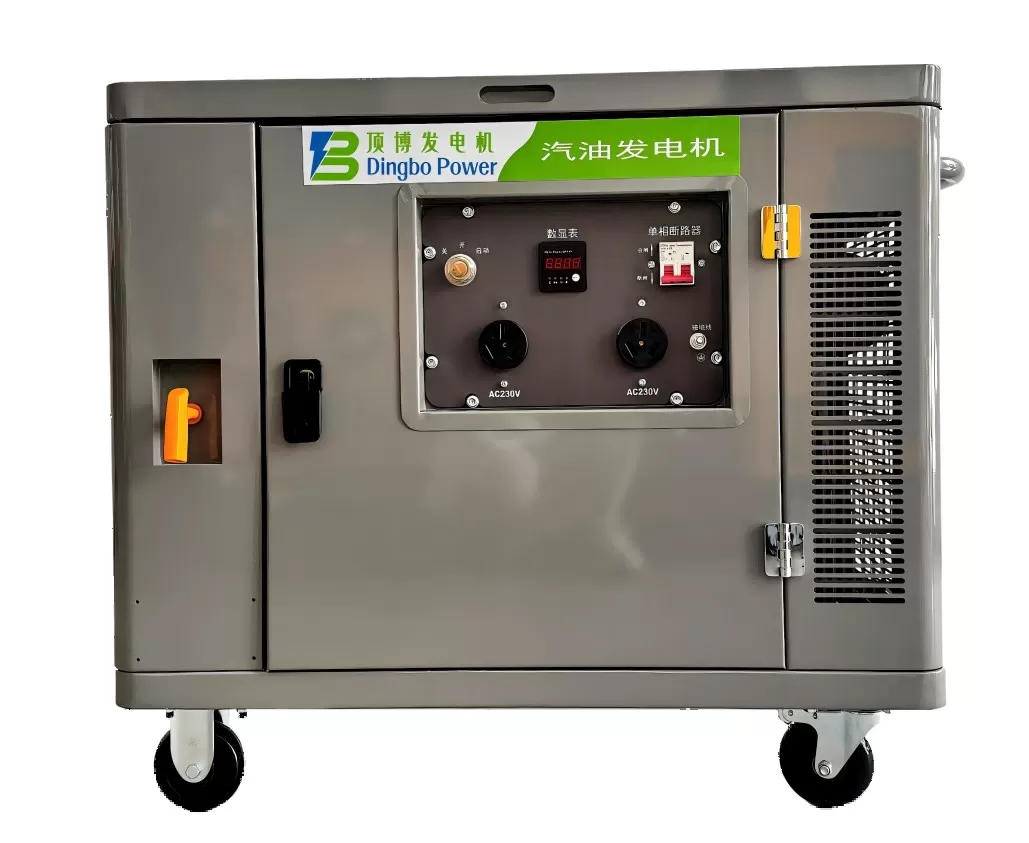

Model: DB6600ES
Type: Silent type
Rated Power Output: 5KW
Rated Voltage: 230V
Phase:Single Phase
Rated Frequency: 50Hz
Nosie Level: 75 dBA/7m
Starting Type: Electric Start
For more types, please contact us.
1. Four-stroke single-cylinder forced air cooled engine delivers low emissions and stable performance.
2. The 100% copper alternator windings equipped with AVR (automatic voltage regulation) ensures strong power, reliable excitation and convenient maintenance.
3.The heavy-duty steel frame design makes the generator sturdy and durable and the casters equipped with as standard significantly enhance the generator’s mobility.
4. The generator set has overload circuit breaker protection and low-oil shutdown protection.
5 Acoustic-optimized muffler can reduce the noise effectively.
Technical specifications:
| Genset Model | DB6600ES | |
| Alternator | Exciting Type | AVR |
| Rated Power | 5.0KW | |
| Max. Power | 5.50KW | |
| Rated Voltage | 230V | |
| Rated Current | 21.7A | |
| Max. Current | 23.9A | |
| Rated Frequency | 50HZ | |
| Phase | Single Phase | |
| Power Factor(COSφ) | 1.0 | |
| Insulation Class | F | |
| Engine | Engine Model | DH190 |
| Bore*Stroke | 90x66mm | |
| Displacement | 420cc | |
| Fuel Consumption | ≤374g/kw.h | |
| Ignition Type | Electromagnetic ignition | |
| Engine Type | 1 Cylinder,4-stroke,air-cooled | |
| Fuel Type | Gasoline (90# or higher) | |
| Oil Capacity | 1.1L | |
| Starting Type | Electric Start | |
| Other | Fuel Tank Capacity | 25L |
| Battery Capacity | 12V-14AH Maintenance-free Battery | |
| Noise Level | 75dBA/7m | |
| Dimensions (exclude handles) | 875x560x785mm | |
| Weight | 145kg | |
