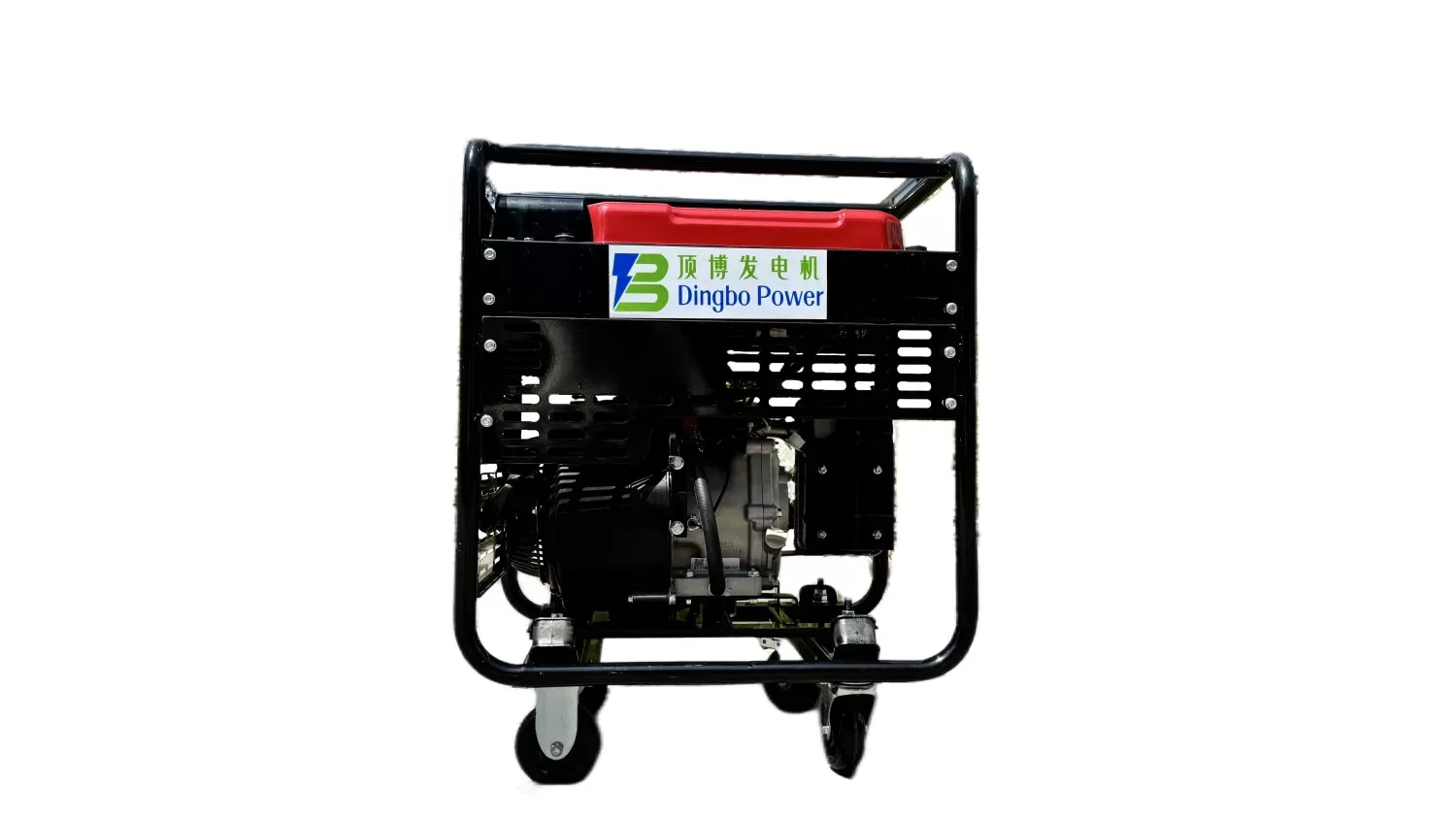

Model:DB6500iE
Rated Power Output:5KW
Rated Voltage: 220V
Rated Frequency: 50Hz
Phase:Single Phase
Nosie Level (7m) dB(A): 75
Engine Type: 1 Cylinder,air-cooled,OHV
Starting Type: Manual Recoil/Electric Start
For more types, please contact us.
Technical specifications:
| Genset Model | DB6500iE | |
| Alternator | Excitation Type | PMG Inverter Type |
| Rated Power (KW) | 5 | |
| Max Power (KW) | 5.5 | |
| Rated Voltage(V) | 220 | |
| Rated Frequency (Hz) | 50 | |
| Phase | Single Phase | |
| Power Factor(COSφ) | 1.0 | |
| Insulation Class | F | |
| Engine | Engine Model | DH275 |
| Bore*Stroke (MM) | 75*62 | |
| Displacement(CC) | 275 | |
| Engine Type | 1 Cylinder,air-cooled,OHV | |
| Fuel Type | Gasoline | |
| Oil Capacity (L) | 0.7 | |
| Starting Type | Manual Recoil/Electric Start | |
| Genset | Fuel Tank Capacity(L) | 20 |
| Noise Level(dBa/7M) | 75 | |
| Dimensions(MM) | 600x430x620mm | |
| Weight (KG) | 50kg | |
Product Features:
1. Inverter Technology –stable & efficient
Advanced inverter technology delivers clean power output (THD <3%) with minimal voltage fluctuation, making it ideal for sensitive electronics and precision equipment.
2. Lightweight & portable design
Open-frame construction reduces weight and size for easy move and transport, perfect for outdoor work, camping, or emergency backup power.
3. Fuel-efficient & eco-friendly
Smart throttle control adjusts gasoline engine speed under low loads, reducing fuel consumption and operating costs while meeting energy-saving demands.
4. Quick start, instant power
One-touch electric start (with manual recoil backup on some models) ensures rapid response, quickly restoring power during outages for uninterrupted operation.
5. Durable & easy maintenance
High-performance engine paired with an efficient inverter generator offers excellent heat dissipation and overload protection. The open-frame design simplifies servicing and reduces maintenance complexity.
6. Parallel operation capability
Supports multi-unit connection for expanded power output, meeting higher load demands when needed.
