Model No.: DB6600ZM
Rated Output: 5KW
Rated Voltage: 230V
Frequency: 50HZ
Lamp Protection Class: IP65
Lighting Power: 4x1000W
Max Height :4.5m
Starting Mode: Manual Recoil/Electric Start
For more types, please contact us.

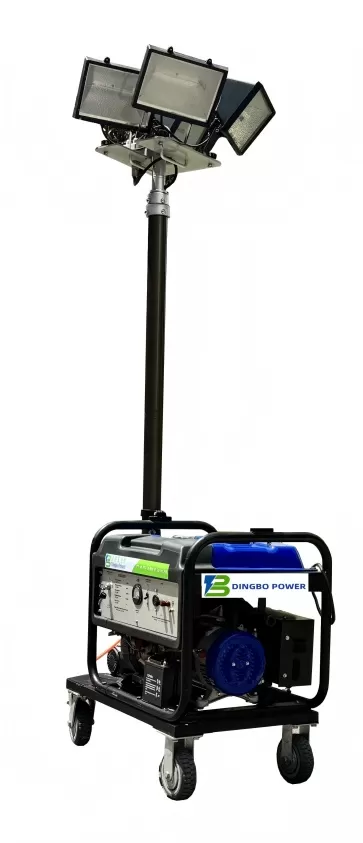

Product features of 5kW LED mobile lighting tower with gasoline generator:
1. Features four high-efficiency independent 1000W Philips lamp heads. Each lamp can be rotated with wide-angle vertical/horizontal adjustment for 360° omnidirectional illumination according to on-site requirements.
2. Extends to 4.5m max height via 3-section telescopic pneumatic mast. The light beam angle can be adjusted by rotating the lamp head up and down, and the light coverage radius can reach 45-65 meters.
3. The generator set can be used to provide power directly and it can work continuously for up to 13 hours when the fuel tank is filled up with gasoline. Additionally, it also supports direct 220V AC mains connection.
4. The wireless remote control can control the power on and off of each lamp within 50 meters, and the electric and manual air pumps can be used for rapid mast deployment and retraction.
5. The bottom of the generator is equipped with universal wheels or flange wheels, allowing it to operate on rugged terrain and railway tracks.
5kW mobile gasoline lighting tower technical specifications:
Model No. | DB6600ZM | |
Alternator | Rated Voltage | 230V |
Frequency | 50HZ | |
Max. Output | 5.5KW | |
Rated Output | 5KW | |
Power Factor | 1.0 | |
Insulation Class | F | |
Engine | Engine Model | 190F |
Bore*Stroke | 90×66mm | |
Displacement | 420cc | |
Fuel Consumption | 374g/kw.h | |
Ignition Type | electromagnetic ignition | |
Engine Type | 1 Cylinder,4-stroke,air-cooled,OHV | |
Fuel Type | Gasoline (90# or higher) | |
Oil Capacity | 0.6L | |
Starting Mode | Manual Recoil/Electric Start | |
Accessory Configuration | Fuel Capacity | 25L |
Battery capacity | 12V-9AH | |
Oil Alarm | √ | |
Fuel Indicator | √ | |
Control Panel | √ | |
Wheels | √ | |
Other Configuration | Noise Level | 75dBA/7m |
Lamp Protection Class | IP65 | |
Lighting Power | 4x1000W | |
Max Height | 4.5m | |
Lifting Rod Size | 1350x500x800mm | |
Lamp Size | 600x530x450mm | |
Weight | 120kg |
