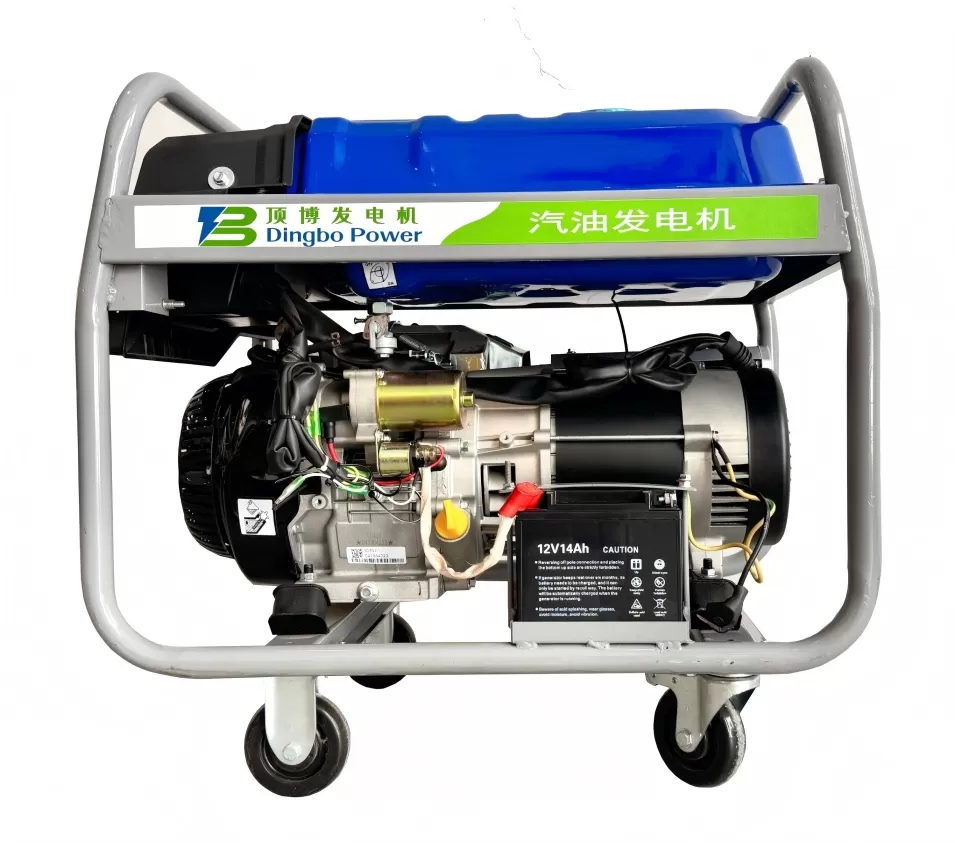

Model:DB6600E
Type: Open type
Rated Power Output:5KW
Phase:Single Phase
Rated Voltage: 230V
Rated Frequency: 50Hz
Nosie Level: 75 dBA/7m
Starting Type: Electric Start
For more types, please contact us.
1. Four-stroke single-cylinder forced air cooled engine delivers low emissions and stable performance.
2. The 100% copper alternator is equipped with AVR automatic voltage regulation, featuring strong power, reliable excitation and convenient maintenance.
3.The heavy-gauge steel frame design makes the generator sturdy and durable and the heavy-duty casters equipped with as standard significantly enhance the generator’s mobility.
4. The generator has overload circuit breaker protection and low-oil shutdown protection.
5 Acoustic-optimized muffler can reduce the noise effectively.
Technical specifications:
| Genset Model | DB6600E | |
| Alternator | Exciting Type | AVR |
| Rated Power | 5.0KW | |
| Max. Power | 5.5KW | |
| Rated Voltage | 230V | |
| Rated Current | 21.7A | |
| Max. Current | 26.0A | |
| Rated Frequency | 50HZ | |
| Phase | Single Phase | |
| Power Factor(COSφ) | 1.0 | |
| Insulation Class | F | |
| Engine | Engine Model | DH190FD |
| Bore*Stroke | 90x66mm | |
| Displacement | 420cc | |
| Fuel Consumption | ≤374g/kw.h | |
| Ignition Type | Electromagnetic ignition | |
| Engine Type | 1 Cylinder,4-stroke,air-cooled | |
| Fuel Type | Gasoline (90# or higher ) | |
| Oil Capacity | 1.1L | |
| Starting Type | Electric Start | |
| Genset | Fuel Tank Capacity | 25L |
| Battery Capacity | 12V-14AH Maintenance-free Battery | |
| Noise Level | 75dBA/7m | |
| Dimensions | 716x531x570mm | |
| Weight | 80kg | |
