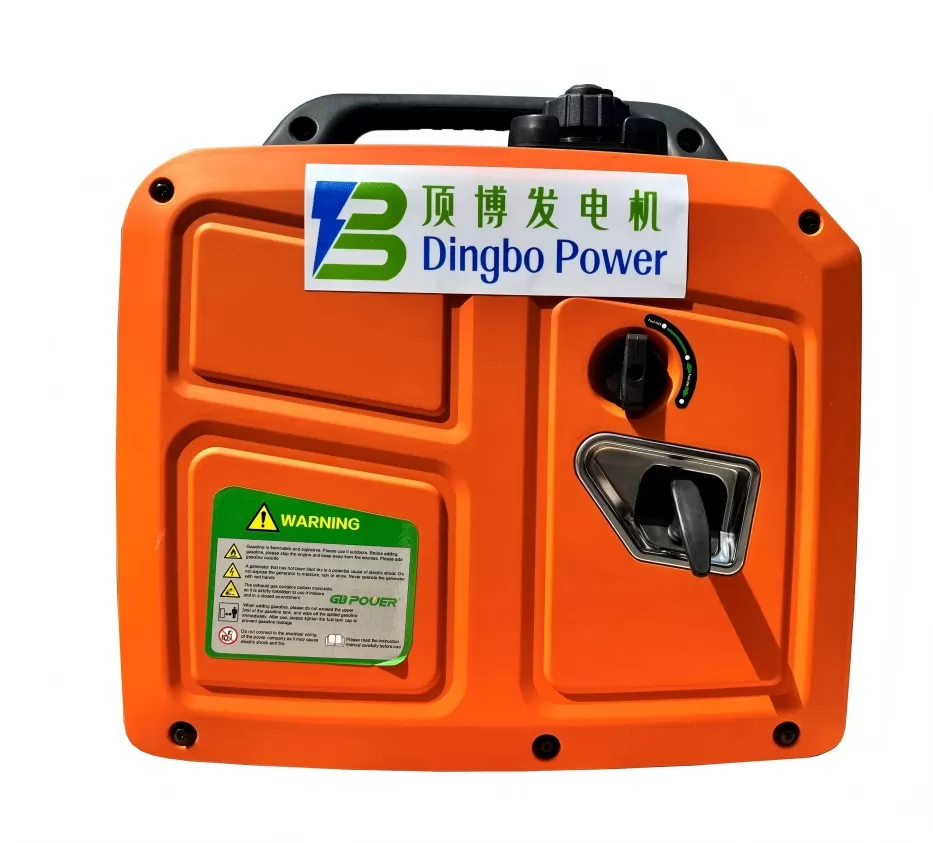

Model:DB4000iSE
Rated Power Output:3KW
Rated Voltage: 230V
Rated Frequency (Hz):50
Phase:Single Phase
Nosie Level (7m) dB(A): 68
Engine Type:1 Cylinder,Air-cooled, 4-stroke
Starting Method: Manua Recoil/Electric Start
For more types, please contact us.
Technical specifications:
| Genset Model | DB4000iSE | |
| Alternator | Excitation Type | PMG Inverter Type |
| Rated Power (KW) | 3 | |
| Max Power (KW) | 3.2 | |
| Rated Voltage(V) | 230 | |
| Rated Frequency (Hz) | 50 | |
| Phase | Single Phase | |
| Power Factor(COSφ) | 1.0 | |
| Insulation Class | F | |
| Engine | Engine Model | DH141 |
| Bore*Stroke (MM) | 58*55 | |
| Displacement(CC) | 141 | |
| Engine Model | 1 Cylinder,air-cooled, 4-stroke | |
| Fuel Type | Gasoline | |
| Oil Capacity (L) | 0.6 | |
| Starting Method | Manual Recoil/Electric Start | |
| Genset | Fuel Tank Capacity(L) | 5 |
| Noise Level(dBA/7m) | 68 | |
| Parallel Function | √ | |
| Dimensions(MM) | 587*373*516 | |
| Weight (KG) | 25 | |
Features:
1. Inverter technology, stable & efficient
It utilizes advanced inverter technology to deliver pure sine wave output (THD<3%) with less voltage fluctuation, making it ideal for sensitive electronics and precision equipment.
2. Ultra-low noise, quiet operation
It adopts high-efficiency noise reduction technology and sound insulation design, reducing the noise significantly. This type of generators are suitable for scenarios with high requirements for quietness.
3. Lightweight design, portable flexibility
It is light in weight and compact in size, easy to move and transport, and suitable for outdoor operations, camping emergency backup, or temporary power supply scenarios.
4. Fuel efficiency, eco-friendly
The gasoline engine paired with an efficient inverter generator can automatically reduce the speed under low load. In this way, it can reduce fuel consumption and operating costs, meeting energy-saving needs.
5. Instant start, ready-to-use
One-touch electric start (some models support manual recoil backup) ensures quick response. The generators can quickly restore power during power outages, ensuring uninterrupted operation.
6. Durable & easy maintenance
A high-quality engine coupled with a high-efficiency variable frequency drive ensures good heat dissipation and strong overload resistance. The open frame design facilitates daily inspection and reduces maintenance difficulty.
7. Parallel operation capability
It supports parallel function, allowing multiple generators to be linked to expand power and meet higher load demands.
