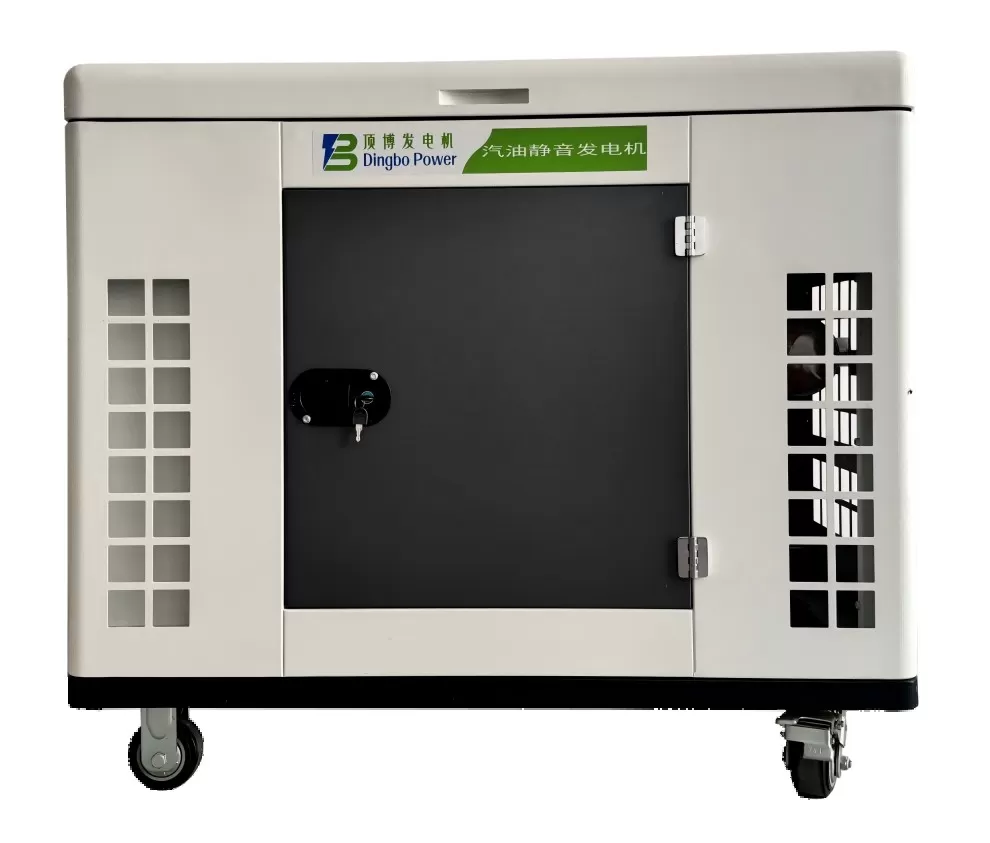

Model: DB20000ES
Type: Silent type
Rated Power Output: 20KW
Rated Voltage: 220/380V
Phase:Single Phase/Three Phase
Rated Frequency: 50Hz
Nosie Level: 75 dBA/7m
For more types, please contact us.
1. V-type twin-cylinder forced air cooled engine delivers low emissions and stable performance.
2. The 100% copper alternator is equipped with AVR (automatic voltage regulation), featuring strong power, reliable excitation and convenient maintenance.
3.The heavy-duty steel frame design makes the generator sturdy and durable and the casters equipped with as standard significantly enhance the generator’s mobility.
4. The generator set has overload circuit breaker protection and low-oil shutdown protection.
5 Acoustic-optimized muffler can reduce the noise effectively.
Technical specifications:
| Genset Model | DB20000ES | |
| Alternator | Excitation Type | AVR, Brush-type Self-excitation |
| Prime Power (KW) | 18 | |
| Standby Power (KW) | 20 | |
| Rated Voltage(V) | 220/380 | |
| Frequency (Hz) | 50 | |
| Phase | Single Phase/Three Phase | |
| Power Factor (COSφ) | 1/0.8 | |
| Insulation Class | F | |
| Engine | Engine Model | DH999 |
| Bore*Stroke (MM) | 90*78.5 | |
| Displacement (CC) | 999 | |
| Engine Type | 2 Cylinder, Air-cooled, OHV | |
| Fuel Type | Gasoline | |
| Oil Capacity (L) | 2.4 | |
| Starting Type | Electric Start | |
| Genset | Fuel Tank (L) | 30 |
| Noise Level (dBA/7m) | 75 | |
| Dimensions(MM) | 1300*800*930 | |
| Weight (KG) | 320 | |
