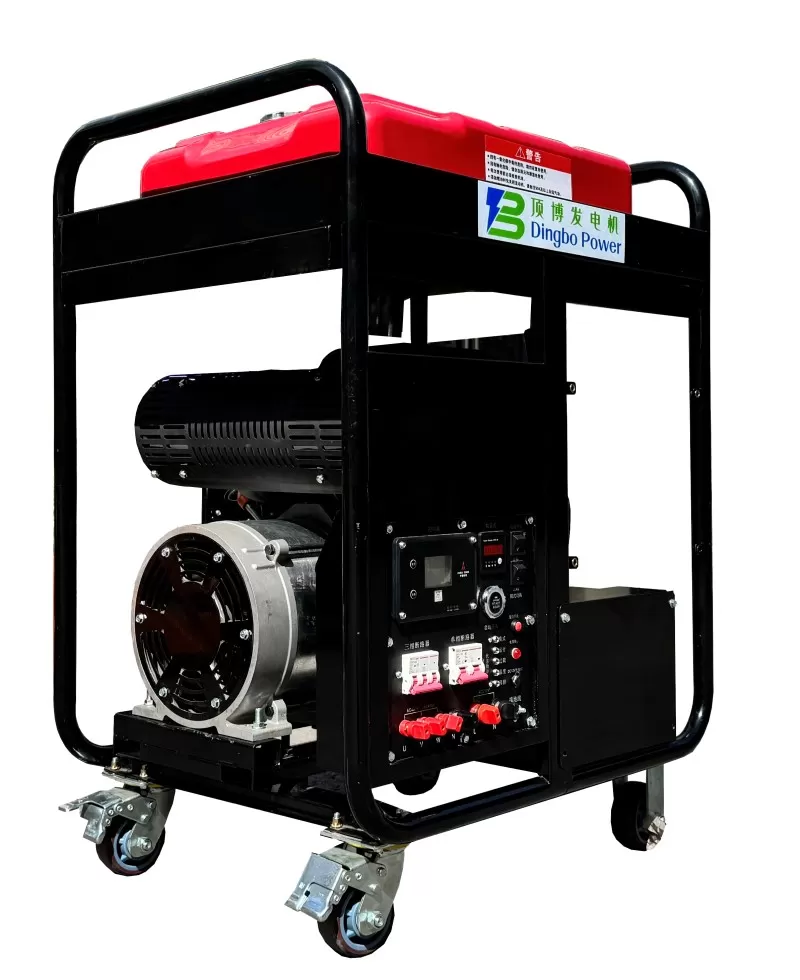

Model:DB25000iE
Type: Open type
Rated Power Output:20KW
Rated Voltage: 220&380(Dual Voltage with Constant Power Output)
Phase:Single&Three Phase
Rated Frequency: 50Hz
Nosie Level: 85 dBA/7m
Engine Type: 2 Cylinder,air-cooled,OHV
Start Type: Electric Start
For more types, please contact us today.
Technical specifications:
| Genset Model | DB25000iE | |
| Alternator | Excitation Type | PMG Inverter Type |
| Rated Power (KW) | 20 | |
| Max. Power (KW) | 21 | |
| Rated Voltage(V) | 220&380(Dual Voltage with Constant Power Output) | |
| Rated Frequency (Hz) | 50 | |
| Phase | Single&Three Phase(Dual Voltage with Constant Power Output) | |
| Power Factor(COSφ) | 1.0&0.8 | |
| Insulation Class | F | |
| Engine | Engine Model | DH999 |
| Bore*Stroke (MM) | 90*78.5 | |
| Displacement(CC) | 999 | |
| Engine Type | 2 Cylinders,air-cooled, OHV | |
| Fuel Type | Gasoline | |
| Oil Capacity (L) | 2.4 | |
| Starting Type | Electric Start | |
| Genset | Fuel Tank (L) | 35 |
| Noise(dBA/7M) | 85 | |
| Dimensions(MM) | 815*625*937 | |
| Weight (KG) | 155 | |
Product Features:
1. Inverter Technology –stable & efficient
Advanced inverter technology delivers clean power output (THD <3%) with minimal voltage fluctuation, making it ideal for sensitive electronics and precision equipment.
2. Lightweight & portable design
Open-frame construction reduces weight and size for easy move and transport, perfect for outdoor work, camping, or emergency backup power.
3. Fuel-efficient & eco-friendly
Smart throttle control adjusts gasoline engine speed under low loads, reducing fuel consumption and operating costs while meeting energy-saving demands.
4. Quick start, instant power
One-touch electric start (with manual recoil backup on some models) ensures rapid response, quickly restoring power during outages for uninterrupted operation.
5. Durable & easy maintenance
High-performance engine paired with an efficient inverter generator offers excellent heat dissipation and overload protection. The open-frame design simplifies servicing and reduces maintenance complexity.
6. Parallel operation capability
Supports multi-unit connection for expanded power output, meeting higher load demands when needed.
