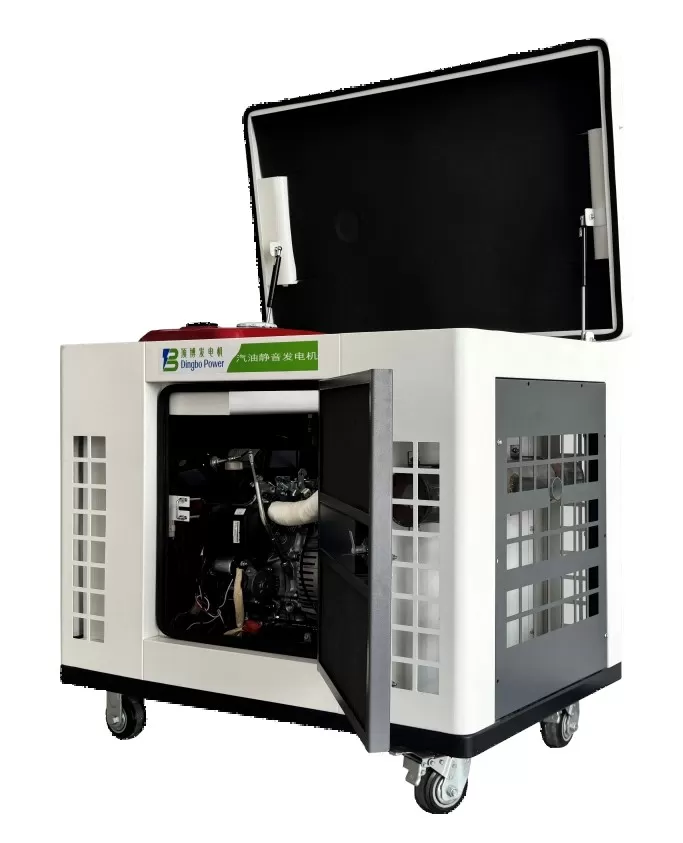

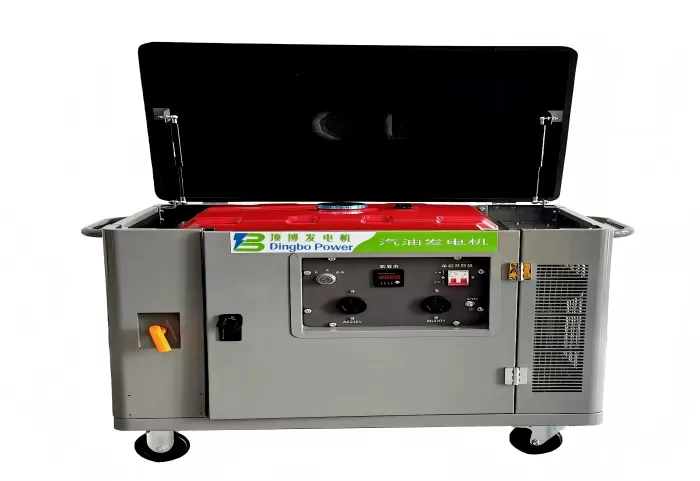

Model: DB18000ES
Type: Silent type
Rated Power Output: 15KW
Rated Voltage: 220/380V
Phase:Single Phase/Three Phase
Rated Frequency: 50Hz
Nosie Level: 75 dBA/7m
Starting Type: Electric Start
For more types, please contact us.
1. V-type twin-cylinder forced air cooled engine delivers low emissions and stable performance.
2. The 100% copper alternator is equipped with AVR (automatic voltage regulation), featuring strong power, reliable excitation and convenient maintenance.
3.The heavy-duty steel frame design makes the generator sturdy and durable and the casters equipped with as standard significantly enhance the generator’s mobility.
4. The gasoline-powered generator has overload circuit breaker protection and low-oil shutdown protection.
5 Acoustic-optimized muffler can reduce the noise effectively.
Technical specifications:
| Genset Model | DB18000ES | |
| Alternator | Excitation Type | AVR, Brush-type Self-excitation |
| Prime Power (KW) | 15 | |
| Standby Power (KW) | 16 | |
| Rated Voltage(V) | 220/380 | |
| Frequency (Hz) | 50 | |
| Phase | Single Phase Three Phase | |
| Power Factor (COSφ) | 1/0.8 | |
| Insulation Class | F | |
| Engine | Engine Model | DH999 |
| Bore*Stroke (MM) | 90*78.5 | |
| Displacement (CC) | 999 | |
| Engine Type | 2 Cylinder, Air-cooled, OHV | |
| Fuel | Gasoline | |
| Oil Capacity (L) | 2.4 | |
| Starting Type | Electric Start | |
| Genset | Fuel Tank (L) | 30 |
| Noise Level (dBA/7m) | 75 | |
| Dimensions (MM) | 1300*800*930 | |
| Weight (KG) | 310 | |
