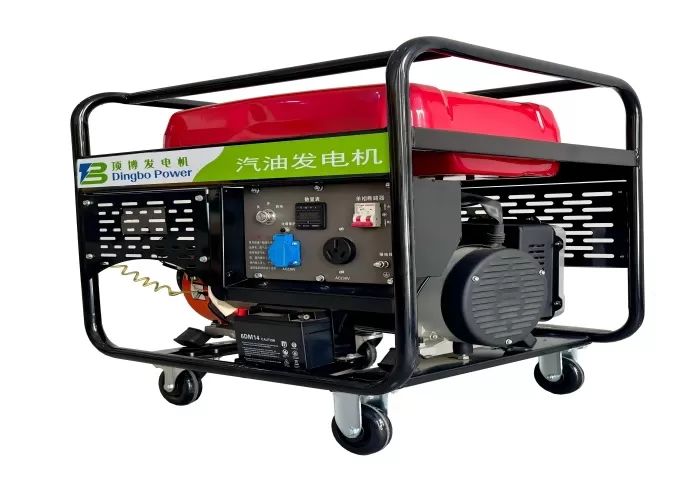

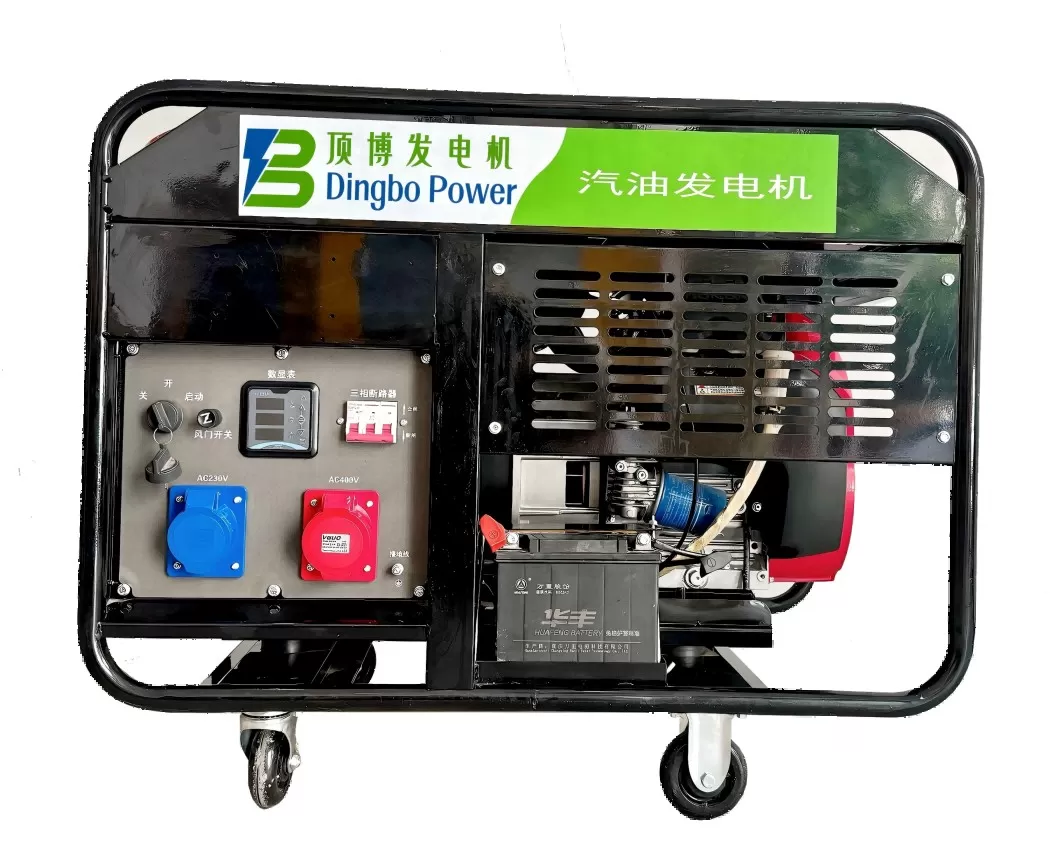

Model: DB18000E
Type: Open type
Rated Power Output: 15KW
Rated Voltage: 230V
Phase:Single Phase
Rated Frequency: 50Hz
Nosie Level: 85 dBA/7m
Starting Type: Electric Start
For more types, please contact us.
1. V-type twin-cylinder forced air cooled engine delivers low emissions and stable performance.
2. The 100% copper alternator is equipped with AVR automatic voltage regulation, featuring strong power, reliable excitation and convenient maintenance.
3.The heavy-gauge steel frame design makes the generator sturdy and durable and the heavy-duty casters equipped with as standard significantly enhance the generator’s mobility.
4. The gasoline-powered generator has overload circuit breaker protection and low-oil shutdown protection.
5 Acoustic-optimized muffler can reduce the noise effectively.
Technical specifications:
| Genset Model | DB18000E | |
| Alternator | Excitation Type | AVR |
| Rated Power | 15KW | |
| Max. Power | 16KW | |
| Rated Voltage | 230V | |
| Rated Current | 65.2A | |
| Max. Current | 59.5A | |
| Rated Frequency | 50HZ | |
| Phase | Single Phase | |
| Power Factor(COSφ) | 1.0 | |
| Insulation Class | F | |
| Engine | Engine Model | DH999 |
| Bore*Stroke | 90x78.5mm | |
| Displacement | 999cc | |
| Fuel Consumption | ≤374g/kw.h | |
| Ignition Type | Electromagnetic ignition | |
| Engine Type | V type, 2 Cylinders, 4-stroke, air-cooled | |
| Fuel Type | 90# or higher Gasoline | |
| Oil Capacity | 2.4L | |
| Starting Type | Electric Start | |
| Generator Set | Fuel Tank Capacity | 30L |
| Battery Capacity | 12V-45AH Maintenance-free Battery | |
| Noise Level | 85dBA/7m | |
| Dimensions | 1050x680x720mm | |
| Weight | 200kg | |
