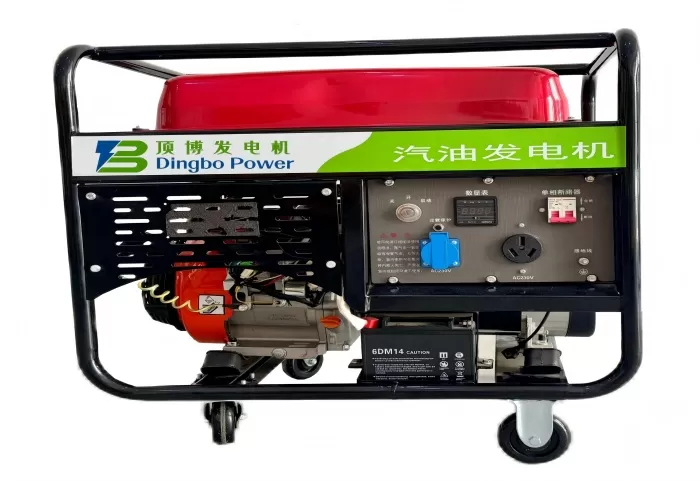

Model:DB15000E
Type: Open type
Rated Power Output: 12KW
Rated Voltage: 230V
Phase:Single Phase
Rated Frequency: 50Hz
Nosie Level: 83 dBA/7m
Starting Type: Electric Start
For more types, please contact us.
1. V-type twin-cylinder forced air cooled engine delivers low emissions and stable performance.
2. The 100% copper alternator is equipped with AVR automatic voltage regulation, featuring strong power, reliable excitation and convenient maintenance.
3.The heavy-gauge steel frame design makes the generator sturdy and durable. The heavy-duty casters equipped with as standard significantly enhance the generator’s mobility.
4. The generator has overload circuit breaker protection and low-oil shutdown protection.
5 Acoustic-optimized muffler can reduce the noise effectively.
Technical specifications:
| Genset Model | DB15000E | |
| Alternator | Excitation Type | AVR |
| Rated Power | 12KW | |
| Max. Power | 13KW | |
| Rated Voltage | 230V | |
| Rated Current | 52.2A | |
| Max Current | 56.5A | |
| Rated Frequency | 50HZ | |
| Phase | Single Phase | |
| Power Factor(COSφ) | 1.0 | |
| Insulation Class | F | |
| Engine | Engine Model | DH760 |
| Bore*Stroke | 82x76mm | |
| Displacement | 760cc | |
| Fuel Consumption | ≤374g/kw.h | |
| Ignition Type | Electromagnetic ignition | |
| Engine Type | 2 Cylinders, 4-stroke, air-cooled | |
| Fuel Type | Gasoline (90# or higher) | |
| Oil Capacity | 1.5L | |
| Starting Type | Electric Start | |
| Genset | Fuel Tank Capacity | 30L |
| Battery Capacity | 12V-32AH Maintenance-free Battery | |
| Noise Level | 83dBA/7m | |
| Dimensions | 960x620x650mm | |
| Weight | 174kg | |
