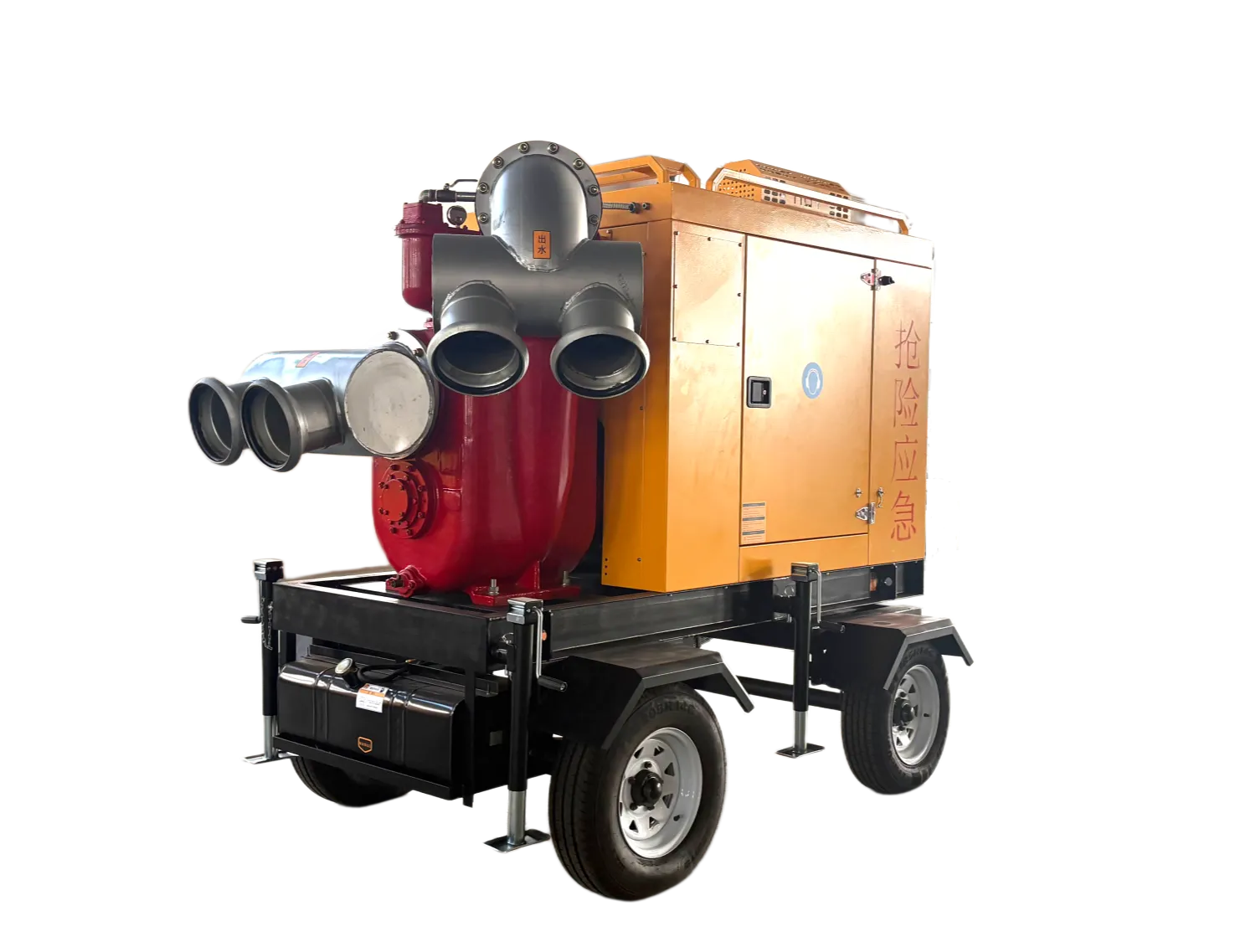

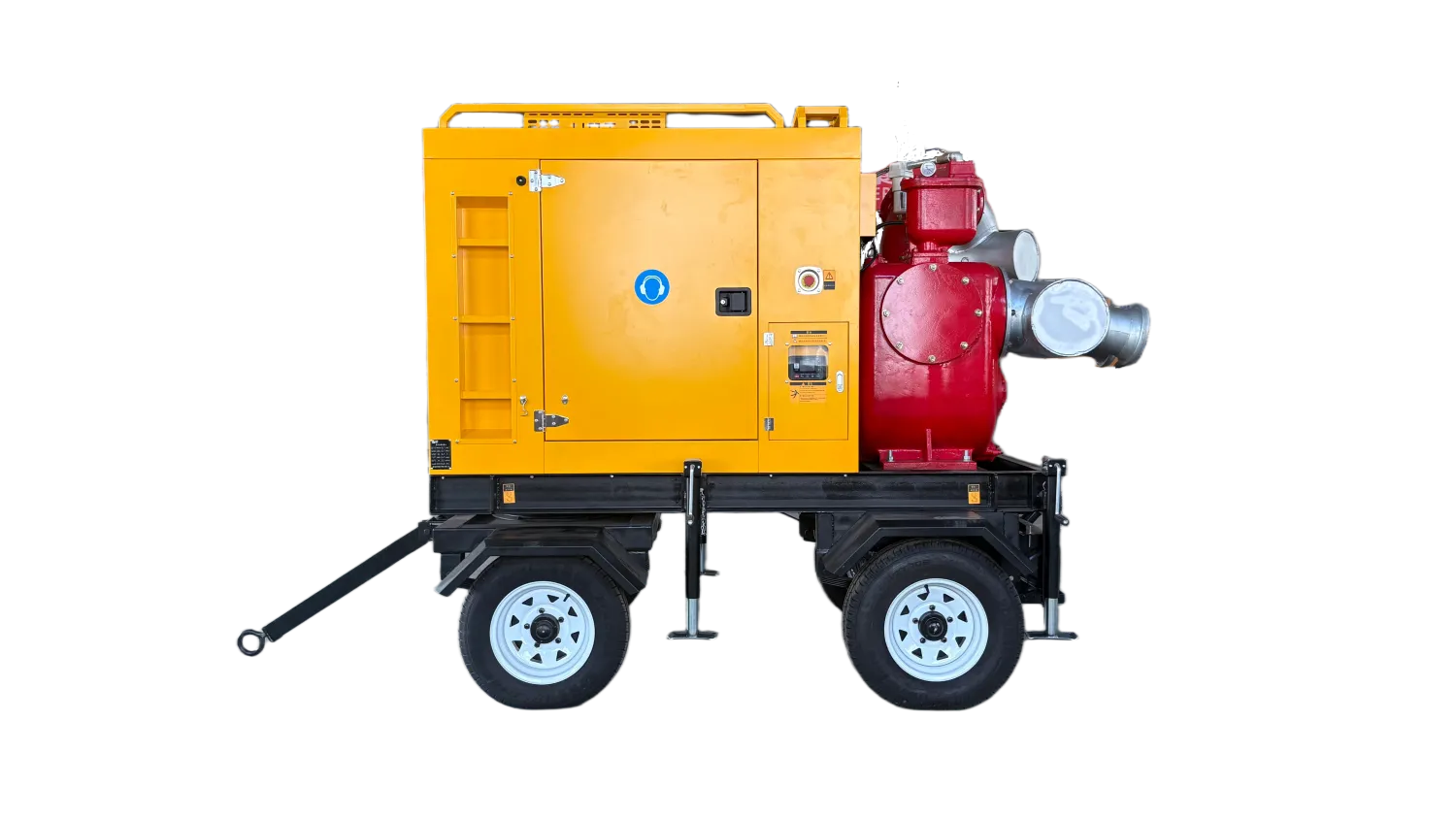

YH1000QZ-25T is a trailer-mounted diesel self-priming water pump unit with 1000m³/h flow, 25m head and 8m suction lift. It is powered by a 120kW diesel engine, equipped with a rainproof canopy and 4-wheel mobile trailer. This pump is widely used for flood control, emergency drainage, agricultural irrigation and engineering water supply.
Model:DB1000QZ-25T
Pump type: self-priming pump
Flow rate: 1000 m³/h
Head of delivery :25 meters
Self priming height: 8m
Diesel engine:SDEC Power SC4H180D2 (prime power 120kW)
Speed: 1500r/min
Controller: Intelligent LCD display
For more types, please contact us.
Introduction:
The YH1000QZ-25T mobile trailer diesel water pump unit is a high-efficiency mobile pumping solution built for heavy-duty, high-volume water transfer tasks. It features a powerful 120kW diesel engine paired with a large-capacity pump, delivering a maximum flow rate of 1000m³/h, a 25-meter head, and an 8-meter self-priming lift to meet demanding drainage and irrigation needs. Mounted on a rugged 4-wheel trailer with a fully enclosed rainproof canopy, the unit ensures easy mobility to remote or emergency sites and reliable operation even in harsh weather conditions. Its dual DN200 inlets enable fast water intake, supporting up to 8 hours of continuous stable operation without frequent stops. Compared to fixed pumps, this model offers unmatched flexibility, quick setup, and low maintenance requirements, making it ideal for flood control, urban drainage, farm irrigation, construction dewatering, and temporary water supply projects.
Advantages:
Superior Pumping Performance:
Delivers a high flow rate of 1000m³/h, a 25m head, and an 8m self-priming lift, ensuring efficient and fast water transfer even in deep or remote water sources.
Reliable Diesel Power:
Equipped with a 120kW diesel engine, offering strong power output, stable operation, and long continuous working hours for demanding projects.
Mobile & Flexible Design:
Mounted on a rugged 4-wheel trailer with a rainproof canopy, it can be quickly deployed to flood zones, construction sites, or farmlands without complex installation.
Dual Inlet Efficiency:
The DN200 dual inlet design allows for faster water intake, reducing the risk of clogging and improving overall pumping efficiency.
All-Weather Durability:
The enclosed rainproof canopy protects the engine and pump from rain, dust, and harsh environments, ensuring reliable operation in outdoor conditions.
Low Maintenance Cost:
Built with high-quality components and a simple structure, it requires minimal upkeep, reducing long-term operational costs and downtime.
Versatile Applications:
Ideal for flood control, emergency drainage, agricultural irrigation, construction dewatering, and temporary water supply in remote areas.
Technical Parameters:
Model | DB1000QZ-25T | ||
Product Usage | 1. Collecting pits or well points for water discharge. 2. Urban drainage. 3. Emergency rescue and flood discharge. 4. Farm irrigation. 5. Remote water supply for firefighting. 6. Fire emergency rescue. 7. Mine drainage, etc | ||
Diesel engine water pump set | Water Inlet diameter {mm} | DN200（8"）x2 | |
Water outlet diameter {mm} | DN200（8"）x2 | ||
Flow rate {cubic meter/hour} | 1000 | ||
Lift {meters} | 25 | ||
Self suction height {meters} | 8 | ||
Diesel engine power {kW} | 120kw | ||
Diesel engine speed | 1500r/min | ||
Fuel capacity {liters} | 250（Can work continuously for 8 hours） | ||
Mobile trailer | tire type | Car tires/inflatable tires | |
Number of tires {only} | 4 | ||
Weather resistant shell material | 2mm high-quality steel plate+outdoor spray painted paint | ||
movement speed | 30km/h | ||
Length x Width x Height {millimeters} | 3250×1840×1950 | ||
Packing size: length x width x height {millimeters} | 3450×2040×2550 | ||
Weight {kg} | 2850 | ||
Applications:
Flood Control & Emergency Drainage:
Ideal for urban and rural flood relief, fast dewatering of flooded areas, and rapid water removal from low-lying zones.
Agricultural Irrigation & Water Supply:
Supports large-scale farm irrigation, pond water transfer, and water supply for remote farmlands.
Construction Site Dewatering:
Used for foundation pit dewatering, construction site drainage, and temporary water supply for engineering projects.
Municipal & Disaster Relief:
Deployed in municipal emergency works, disaster response operations, and temporary water transfer tasks.
Industrial & Mining Use:
Suitable for mine drainage, factory wastewater transfer, and water supply for remote industrial sites.
Why choose DIngbo Power?
Why choose DIngbo Power 12kW 15kVA DB1000QZ-25T?
As a professional manufacturer of power equipment with years of industry experience, we are committed to providing reliable and high-quality diesel generators, water pumps and related solutions. Our products are built with high-quality components and undergo strict quality control to ensure stable performance and long service life even in harsh working environments. We also offer customized design services to meet your specific project needs, along with competitive pricing, short lead times and comprehensive after-sales support including global technical assistance and maintenance guidance. By choosing Dingbo Power, you gain a trusted partner dedicated to delivering durable, efficient and cost-effective power solutions that support the success of your projects.
