Product Model:DB800QZ-26T
Rated flow(m³/h):800
Rated head (m):26
Self suction height(m):8
Inlet diameter (mm/in):DN200×2
Outlet diameter (mm/in):DN200×2
Engine model:Shangchai4HTAA4.3-G22
Engine power (kW):20
Rotational speed (rpm):1800
Fuel tank capacity (L):250
For more types, please contact us.

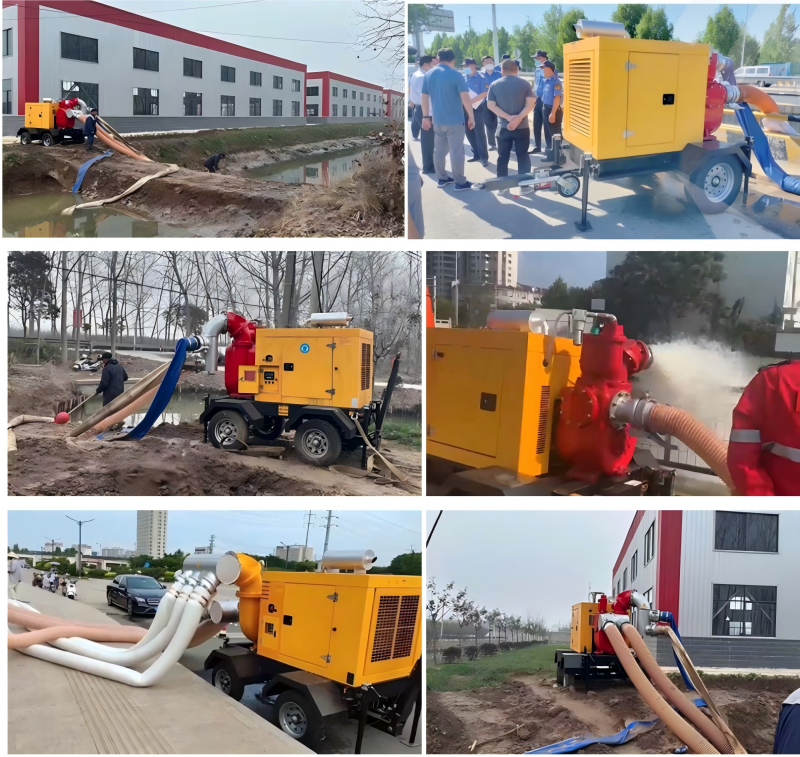

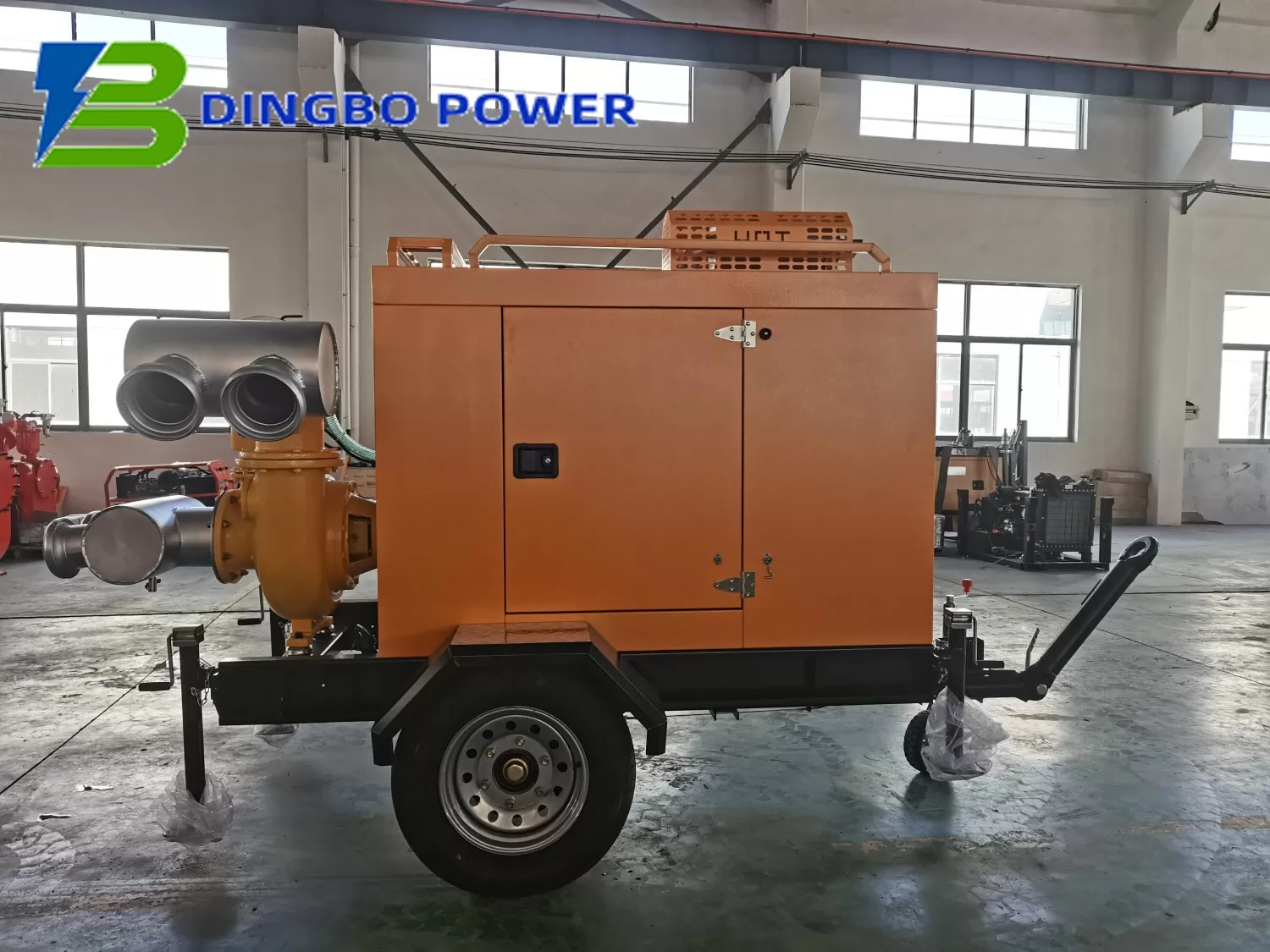

Dingbo Power Strong Self-Priming Pump DB800QZ-26T model delivers a rated flow of 800m³/h and a rated head of 26m. It can be used in a wide range of scenarios, such as drainage from collection pits or well points, urban drainage, emergency rescue and flood discharge, farm irrigation, remote fire water supply, fire emergency rescue, and mine drainage, etc.
| Product Model | DB800QZ-26T |
| Rated flow（m³/h） | 800 |
| Rated head (m) | 26 |
| Self suction height (m) | 8 |
| Inlet diameter (mm/in) | DN200×2 |
| Outlet diameter (mm/in) | DN200×2 |
| Engine brand | Shangchai |
| Engine model | 4HTAA4.3-G22 |
| Emission standard | China Stage II |
| Engine power (kW) | 120 |
| Rotational speed (rpm) | 1800 |
| Number of cylinders | 4 |
| Engine structure | Inline 4 cylinders, turbocharged inter-cooled |
| Fuel tank capacity (L) | 250 |
| Dimensions (length * width * height mm) | 2800*1800*2500 (only for reference) |
| Weight (kg) | 3000 (only for reference) |
| Standard Configuration | |
| control system | Fuchuang Integrated Controller |
| pump body | Strong self-priming pump+vacuum assisted system |
| Vacuum assisted | Electronic low-pressure fuel-free maintenance free system |
| Trailer type | 4-wheel leaf spring trailer,the tow bar is adjustable up and down and comes with a handbrake and brake light, with a speed limit of 50 kilometers per hour |
| Canopy type | 2mm galvanized steel plate+outdoor spray painted paint |
| Inlet pipe/outlet hose | DN200 inlet pipe 8 meters/piece, 2 pieces in total, DN200 outlet belt 20 meters/roll, 2 rolls in total |
| Interface method | Paul Quick Interface |
| Battery | Maintenance free battery+connecting cable |
DINGB POWER diesel pumps are widely used in the following scenarios because of its powerful power and ability to adapt to complex environments:
-Used for farmland irrigation, water diversion, and drainage, especially in remote rural areas lacking electricity.
- Can be integrated with modern irrigation systems such as sprinkler and drip irrigation.
- Plays a crucial role in urban drainage, flood prevention, and drought relief.
- Used for rapid water removal in cities after heavy rainfall, typhoons, and other natural disasters.
- Applied in urban water supply, wastewater treatment plants, and industrial park water systems.
- Suitable for industries such as steel, chemical, and power plants that require large-volume water supply.
- Used for underground drainage and foundation dewatering to prevent water accumulation at construction sites.
- Essential for mine drainage to ensure safe mining operations.
- Serves as a backup water source for firefighting in cities, high-rise buildings, large factories, and oil fields.
- Suitable for areas with unstable electricity supply or no fixed fire water source.
- Used for ship ballast water discharge, seawater desalination systems, and offshore drilling platform water supply.
- Provides emergency drainage and firefighting support at docks and ports.
- Ideal for areas with complex terrain and distant water sources, ensuring a stable water supply for residents and livestock.
- Capable of handling long-distance and high-lift water transfer challenges.
Diesel engine pumps do not need to rely on the power grid and they have strong power and strong adaptability, that’s why they are widely used in all kinds of water supply and drainage needs occasions. They are important equipment for emergency rescue and industrial production. If you have specific industry requirements, DINGBO POWER can recommend the best models and solutions for you.
