Yuchai Diesel Generator Circuit Connection

Jun. 12, 2023

The powerful appearance of Yuchai Diesel generator often reminds people of the energetic superman, but it is also an arrogant "little princess", not only with a "delicate heart", but also extremely "sensitive" to the external environment. Therefore, in order to keep Yuchai Diesel generator in good working condition, we should not relax from storage to maintenance. If the resistance of Yuchai diesel generator does not meet the standard value, please refer to the instructions in the drying motor maintenance manual. The connection between Yuchai diesel generator circuit connector and the power grid is direct.

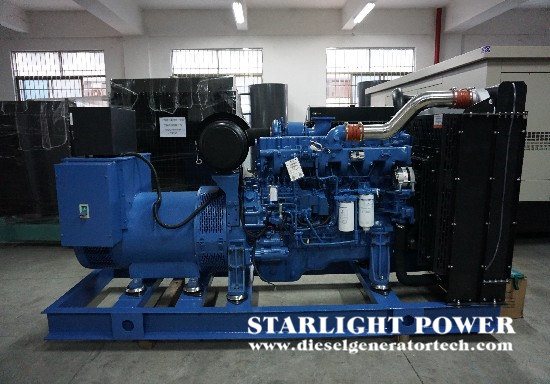

Yuchai generator


The connection and connection of the circuit must be in accordance with the circuit diagram in the maintenance manual, and the connection of the grounding wire should be in accordance with the standards of the country where it is located. During the mechanical installation, Yuchai Diesel generator should be placed in the environment and position that meets the requirements of the order. During the lifting process, if it is a single bearing Yuchai Diesel generator, lifting rings should be used to avoid damaging the junction box. The machine must be kept level to prevent the rotor of Yuchai Diesel generator from falling off.


Before connecting Yuchai Diesel generator to the motor, the shafting torsion analysis and installation dimension inspection shall be carried out to ensure the compatibility between Yuchai Diesel generator and the motor. The size of fixing screws shall be suitable for the size of fixing holes and ensure that the screw torque of Yuchai Diesel generator meets the requirements. In order to ensure that the alignment of the mechanical shaft of Yuchai Diesel generator meets the requirements, the installation of the coupling and transmission wheel must be completed according to the instructions. Check whether the actual load of Yuchai Diesel generator is consistent with the maximum value specified in the maintenance manual. The position of air inlet and outlet shall ensure smooth air flow to ensure the cooling effect of Yuchai Diesel generator.


Avoid placing the environmental Yuchai Diesel generator in a dry and clean place to avoid vibration and collision. The ambient humidity should be less than 90%. If it is a single bearing Yuchai Diesel generator, the transport parts of the generator cannot be removed before use. If you want to test the insulation of Yuchai Diesel generator, you must first cut off the regulated power supply and various outgoing connections.


Jiangsu Starlight Power Generation Equipment Co., Ltd. was founded in 1974 and is one of the earliest manufacturers of generators and diesel generator sets in China. The company has a registered capital of 218.88 million yuan. The company covers an area of 86,000 square meters and a building area of 55,000 square meters. There are more than 660 employees, including 456 professional technicians and 106 senior technicians. It has 46 sales and service outlets nationwide. The main products are diesel engines, generator sets, and diesel generators, providing users with a one-stop service of design, supply, debugging and maintenance at any time. Starlight has always insisted on using first-class talents, building first-class enterprises, manufacturing first-class products, creating first-class services, and making every effort to build a first-class domestic enterprise. If any question please feel free to visit our website https://www.dieselgeneratortech.com/ or send email to sales@dieselgeneratortech.com.
