Inspection of AC diesel generator rotor: Inspection of rotor short circuit to ground. Using an ohmmeter 1 × The resistance between the slip ring 3 of rotor 1 and the shaft head of rotor 1 should be ∞ when checking the K Ω gear, otherwise it indicates a short circuit in the rotor coil and should be replaced.
Inspection of rotor coil open circuit and short circuit. Using 1 of ohmmeter 2 × Ω gear, check the resistance value between the two slip rings 3 of rotor 1, which should be between 2.8-3.0 Ω. If the resistance value is within the k Ω range, it indicates an open circuit in rotor 1. If the resistance value is lower than the above value, it indicates a short circuit in rotor 1.
Inspection of rotor slip ring wear. Check if there are any scratches on the surface of slip ring 3 and measure with caliper 2. If the depth of wear scars exceeds 0.22mm, rotor 1 or slip ring 3 should be replaced.
Inspection of stator: Inspection of stator coil short circuit to ground. Taking the Jetta sedan as an example, using the 1 ohmmeter × Check the resistance between the iron core 1 of the stator coil and the stator coil taps 2, 3, and 4 one by one at the K Ω gear, all of which should be infinite. If there is a smaller resistance value, it indicates that the stator coil is short circuited to ground and should be replaced.
Check for open circuit in the stator coil using an ohmmeter of 1 × Check the stator coil taps 1 and 2, 1 and 3, 2 and 3 one by one at the Ω gear, and the displayed value must be 0. If the measured value is at the K Ω level, it indicates an open circuit and the stator should be replaced.
Inspection of diode board: Taking Jetta as an example, use a multi-purpose tester 5 and simultaneously press the resistance and voltage measurement buttons 8 and 9.
Detect positive diode: black terminal 6 is connected to positive heat sink 1 (equivalent to B+) (positive diode negative), and red terminal 7 is connected to node 2 (positive diode positive) one by one.
Detect negative diodes: Red terminal 7 is connected to negative heat sink 3 (negative diode positive), and black terminal 6 is connected to node 2 (negative diode negative) one by one.
Detection of excitation diode: black terminal 6 is connected to excitation terminal 4 (i.e. D+) (negative pole of excitation diode), and red terminal 7 is connected to node 2 (positive pole of excitation diode) one by one.
All tests need to be conducted three times and their values should be between 50-80 Ω, otherwise replace the diode board.

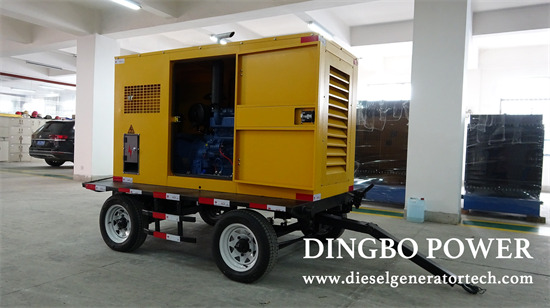

Dingbo Power has advanced testing equipment, modern production technology, professional manufacturing technology, perfect quality management system, and strong technical research and development capabilities. It can provide 3KW～2500KW various specifications of ordinary, automatic, four protection, automatic switching, low noise and mobile generator sets, high quality and low energy consumption to meet the diverse power needs of customers, and can also meet users with different voltages and different frequencies. It is required to create a parallel power supply system for multiple units. If you are interested in our product or any question on generator, welcome to send email to email@example.com.
