How to Repair The Damage of Diesel Generator Body?

Aug. 11, 2021

Diesel generators can cause damage to the province in many cases, especially under extreme conditions, including environmental factors and the machine itself. After the diesel generator body is damaged, the body must be repaired. The following starlight power generation equipment will introduce you to the repair methods after the diesel generator body is damaged:

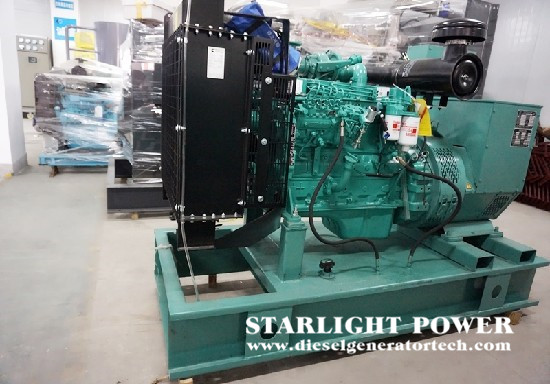

power generation.jpg

Freeze cracking is the most prone damage to diesel generators in winter. The cracks in the body can only be repaired by cold welding at the unstressed parts. Firstly, stop the crack holes at both ends of the crack, then plant several iron nails along the crack, and then patch several pieces perpendicular to the crack direction, and weld them firmly along the crack and patch plate with a low-carbon steel electrode. Pay attention to tap the weld with a small hammer while welding, and use flame correction after all welding is completed.


The bolt holes of the diesel generator cylinder head are slippery or damaged. This situation is caused by excessive force when tightening the cylinder head nut or ramming the cylinder. If it is a single thread hole, you can change the thread again and process a cylinder head bolt that matches the thread hole. If the wire hole is damaged or multiple wire holes are slippery, it cannot be repaired. The hole can be reamed with a steel wire cone first, then plugged with aluminum wire, or blocked with spot welding.


The bearing hole of the diesel generator is worn out. This situation must be repaired immediately. When the bearing hole is lightly worn, it can be repaired by enlarging the outer circle of the bearing. Use oxygen welding on the outer ring of the bearing to place the symmetrical point of the steel wire at a small point, correct it with a file, and then press it into the bearing hole to use. Another method is to use a 2 mm thick iron plate to make a large flat pad with an inner hole of 50 mm, make three wire holes on the flat pad and the body, and fix it with flat-head screws. When the bearing hole wears severely, a large original hole insert can be bored, and three small wire holes can be made at the joint between the inserted bush and the body and fixed with screws.
