Cummins Diesel Generator Spray Inspection

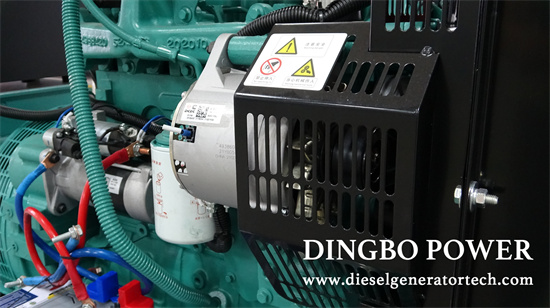

Cummins diesel generators are equipped with Zhongzhi control panels, providing four levels of protection for the unit. Various alarm and protection prompts effectively extend the service life of the unit. The generator features stable shock resistance for long-term durability, with a baking paint finish that is both aesthetically pleasing and corrosion-resistant. The advanced combustion process significantly reduces fuel consumption, ensuring higher reliability with a major overhaul-free period exceeding 15,000 hours.

Why does a diesel engine spray atomized diesel? Atomized diesel fuel mixes more fully with air, enabling better combustion and maximizing engine power. The spray characteristics of diesel engines play a decisive role in the formation of combustible mixtures and the entire combustion process.

How to check the spray quality of Cummins diesel generator? Install the diesel generator injector on the tester and shake the control lever at 60-70 times per minute. The spray quality is judged based on the injector's injection status.

Specific requirements for Cummins diesel generator injector spray:

① The sprayed fuel should be atomized, finely and uniformly distributed, without significant splashing droplets, persistent oil beads, or local uneven concentration.

② The start and end of injection should be distinct with a crisp sound; there should be no oil dripping before or after injection; after multiple injections, the area near the injection port should remain dry or slightly moist.

③ Spray cone angle: Normally, it forms a approximately 40° cone shape centered on the nozzle's centerline. The spray cone angle indicates the diffusion degree of the fuel jet in the combustion chamber. Generally, a larger spray cone angle increases the volume of surrounding air and improves mixing. It should be based on matching requirements; a larger spray cone angle is not necessarily better for filling the combustion space and promoting combustion.

Inspection method: Place a piece of white paper 100-200mm directly below the injector. Shake the small diesel generator's control lever to make the injector perform one injection. Measure the diameter D of the oil stain on the white paper and the distance H from the injector nozzle. The spray cone angle is calculated as: a = 2arctan(D/2H). If it does not meet the requirements, clean the injector; if it still fails after cleaning, replace the injector.
