500KW Shangchai Diesel Electric Generator Set Technical Data

Mar. 21, 2019

Starlight Shangchai (SDEC) series diesel electric generator adopts Caterpillar technology. Power range is from 55KW to 800KW. Generating set type includes open type generator, silent generator, trailer generator (with wheels) and container soundproof genset, etc. In this article, we mainly share 500KW 625KVA Shangchai diesel generator technical data as well as its engine features.

Shangchai Engine SC27G830D2 Technical Data


POWER RATING


Engine Speed

Type of Operation

Engine Power

rpm

kW

Ps

1500

Prime Power

555

755

Standby Power

610

830


SPECIFICATIONS

FUEL CONSUMPTION

Engine Model

SC27G830D2

Power

lit/hr

Engine Type

V-type, 4 strokes, water-cooled, Turbo charged air-to-air intercooled

25%

34.7



50%

60.1

Combustion type

Direction injection

75%

87.5

Cylinder Type

Wet liner

100%

113.9

Number of cylinders

12

110%

126.4

Bore × stroke

135(5.32) × 155(6.1) mm(in.)



Displacement

25.8 (1574) lit.(in3)



Compression ratio

16 : 1



Firing order

1-12-5-8-3-10-6-7-2-11-4-9

FUEL SYSTEM


Injection timing

11.5°BTDC

Injection pump

Yijie in-line "P" type

Dry weight

Approx.2250kg (4960 1b)

Governor

Electric type

Dimension

1930×1686×1872mm

Feed pump

Mechanical type

  (L×W×H)

(76×66.4×75.8 in.)

Injection nozzle

Multi hole type

Rotation

Counter clockwise viewed from Flywheel

Opening pressure

240 kg/cm2 (3414 psi)

Fly wheel housing

SAE NO.0

Fuel filter

Full flow, cartridge type

Fly wheel

SAE NO. 18

Used fuel

Diesel fuel oil





MECHANISM

LUBRICATION SYSTEM

Type

Over head valve

Lub. Method

Fully forced pressure feed type

Number of valve

Intake 1, exhaust 1 per cylinder

Oil pump

Gear type driven by crankshaft

Valve lashes at cold

Intake 0.325mm (0.0128 in.)

Oil filter

Full flow, cartridge type


Exhaust 0.375mm (0.0148 in.)

Oil pan capacity

High level 65 liters ( 17.16 gal.)

Low level 55 liters (14.52 gal)



Angularity limit

Front down 25 deg.

Front up 35 deg.

Side to side 35 deg.

VALVE TIMING


Opening

Close

Intake valve

20°BTDC

48°ABDC



Exhaust valve

48°BBDC

20°ATDC

Lub. Oil

Refer to Operation Manual





COOLING SYSTEM

ENGINEERING DATA

Cooling method

Fresh water forced circulation

Water flow

740 liters/min @1,500 rpm

Water capacity (engine only)

48 liters ( 12.7 gal.)

Heat rejection to coolant

74 kcal/sec @1,500 rpm



Heat rejection to CAC35 m3/min @1,500 rpm

Pressure system

Max. 0.5 kg/cm2 ( 7.11 psi)

Air flow

39 m3/min @1,500 rpm

Water pump

Centrifugal type driven by belt

Exhaust gas flow

99.5 m3/min @1,500 rpm

Water pump Capacity

740 liters( 195.36 gal.)/min at 1, 500 rpm (engine)

Exhaust gas temp.

600 °C @1,500 rpm

Thermostat

Wax-pellet type

Opening temp. 77°C

Full open temp. 90°C

Max. permissible restrictions


Intake system

3 kPa initial

6 kPa final

Cooling fan

Blower type, iron

1220 mm diameter, 6 blades

Exhaust system

6 kPa max

Max. permissible altitude

2,000 m





ELECTRICAL SYSTEM

CONVERSION TABLE

Charging generator

28V×55A

in. = mm × 0.0394

lb/ft = N.m × 0.737

Voltage regulator

Built-in type IC regulator

PS = kW × 1.3596

U.S. gal = lit. × 0.264

Starting motor

24V×11kW

psi = kg/cm2 × 14.2233

kW = 0.2388 kcal/s

Battery Voltage

24V

in3 = lit. × 61.02

lb/PS.h = g/kW.h × 0.00162

Battery Capacity

200 AH

hp = PS × 0.98635

cfm = m3/min × 35.336



lb = kg × 2.20462



SDEC SC27G830D2 Engine structure

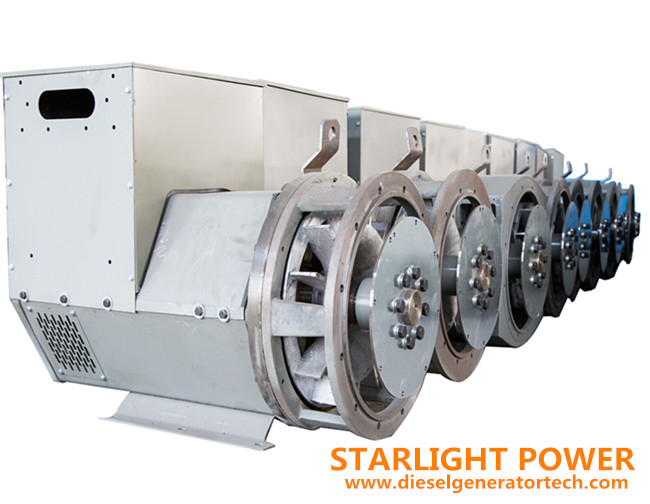

Starlight Alternator/AC Generator Technical Datasheet is given below:


Alternator Data

Output Power(KW)

500KW

Structure

One-piece

Excitation type

Brushless Self Excitation

Overload Capacity

10% overload for one hour

Insulation Class

H

Short-time Current

150%10S

Protection Class

IP22

Mode of Connection

3-phase, 4-line, neutral ground

Rated Voltage

380V/400V/415V

Power Factor

0.8Lag

Rated Frequency50 HzRated Speed1500rpm

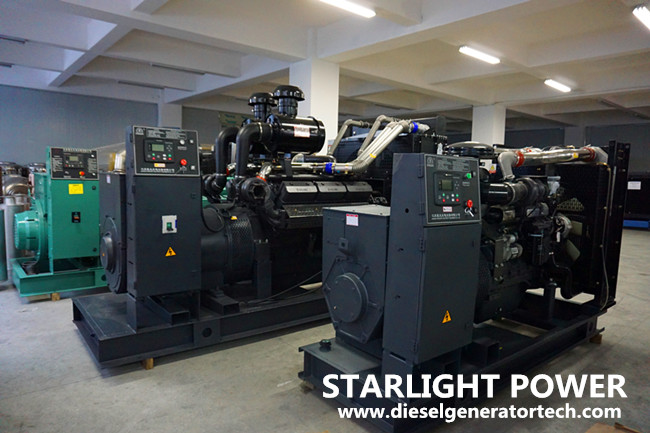

Starlight generator


SDEC Generator G Series Diesel Engine Power Output 405 -662KW


The SC25/27G series engine designed and improved by SDEC on the basis of the 12V135 diesel engine special for generator sets. The SC25/27G series engine is characterized by a major upgrade in product quality, reliability, economy, vibration, noise and appearance, especially, the SC27G’s stroke has been lengthened to 155 mm. Most parts of the SC25/27G series engine are interchangeable with those of the original model. Made in accordance with the SAIC MOTOR manufacturing standard, the SC25/27G series is a preferred power for common-used generating sets.

Product Features

1. Engine reliability is improved by adopting one-piece cranshaft made of non-quenched and tempered steel and improved gaskets for all connections.

2. Symmetrical-design of two water pumps and two oil pumps improves cooling and lubrication capacities, reduces water tank volume, and adapts to applications in the regions with different ambient temperatures.

3. Two-section exhaust pipe and optimized leakproof structure reduce probability of leakage. The air intake manifold is changed into casting structure.

4. Redesigned fuel pipeline, improved other outside pipelines, air cleaner arrangement, and guard design, as well as reasonable layout make the engine appear more in sense of industrial design.

5. Fractured connecting-rod provides easy service and maintenance.


Shangchai diesel generator
