2000KW Yuchai Engine YC16VC3300-D31 Generator Set

Jun. 06, 2020


We are Starlight Power, a manufacturer of diesel generators in China, founded in 1974. We are not only authorized as diesel engine OEM partner of genset by Cummins, Volvo, Perkins, Deutz, Shangchai, Weichai, Ricardo, but also Yuchai. Starlight series Yuchai generators power range is from 20kw to 3000kw which is with stronger power and good performance. Today we mainly introduce 2000KW generator set powered by Yuchai diesel engine YC16VC3300-D31.


Feature of 2000KW diesel generator set powered by Yuchai engine

The genset has low noise.

High horsepower, low fuel consumption, large torque.

Easy maintenance and low price.

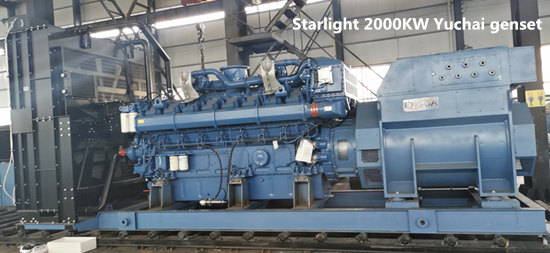

2000KW Yuchai Diesel Genset


2000KW diesel generator set technical specification

Genset Model:XG-2000GF

Manufacturer

Jiangsu Starlight Electricity Equipments Co.,Ltd.

Standards: meet the national JB / T10303-2001 "General Technical Conditions of Power Frequency Diesel Generator Sets" standards, CE and ISO.

Prime power

2000KW/2500KVA

Steady-state voltage regulation

≤±2.5%

Rated speed/

frequency

1500rpm/50Hz

Transient voltage regulation

-15%≤δυ≤+20%

Rated Voltage

400/230V

Voltage stabilization time

≤3s

Power factor

0.8lag

Voltage fluctuation rate

≤±0.5%

Rated current

3600A

Steady-state frequency adjustment rate

≤0.5%

Net weight

23800KG

Transient frequency adjustment rate

≤±5%

Dimension

L×W×H


7.4×2.8×3.2m

Frequency stabilization time

≤6S

Frequency fluctuation rate

≤1%


YC16VC series engine is a high-power V-type product independently developed by Yuchai.

Advantages:

1.Compact structure and excellent performance.

2.Energy conservation and environmental protection, reliability and durability.

3.The emission pollutants, power performance, economy and reliability indexes have reached the international advanced level.

Yuchai YC16VC series diesel engine

Type characteristics

1. The engine body is made of high-strength material, arc stiffener grid structure, four bolt main bearing structure, with high rigidity, small vibration and low noise.

2. The crankshaft is made of high-quality alloy steel with all fiber extrusion forging, shaft diameter and fillet quenching heat treatment, anti-wear and long service life.

3. It adopts electronic control single pump, four valve, high efficiency supercharging and intercooling, Yuchai combustion chamber technology, with low fuel consumption, less emissions, excellent speed regulation performance, fast and powerful loading.

4. One cylinder and one cover structure, the side of the engine body is equipped with maintenance window, which is convenient for maintenance.

5. Adopting world-class equipment and production technology, the quality is stable and reliable.

6. Meet the requirements of G3 level of generator set performance.


Diesel Engine Technical Data

Manufacturer

Guangxi Yuchai Machinery Co.,Ltd.

Model

YC16VC3300-D31

Rated speed (RPM)

1500

Prime/standby power(KW)

2205/2426

Starting mode

24VDC Electric start

No.of cylinder, Structural features

In-line 16, 4 stroke

Fuel consumption rate

≤193g/kw·h

Bore/stroke (mm)


200/210

Total capacity of lubricating oil system (L)

 430

Cooling way

Water-cooled

Compression ratio

13.5:1

Aspiration

Turbocharged, intercooled

Displacement (L)

05.56


Alternator Technical Data

Manufacturer

Shanghai Kepu Generator Equipment Co.,Ltd.

Model

TFW2-2000

Structure

One-piece

Output power(KW)

2000KW

Overload capacity

10% overload for one hour

Type

Brushless self-exciting

Short-time Current

150%10S

Insulation class

H

Phase

3 phase 4 wire, neutral grounding

Level of protection

IP22

Power factor

0.8 lagging


Genset Controller

Model: SmartGen HGM6120N

 SmartGen HGM6120N

HGM6120N series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and three “remote” (remote control, remote measure and remote communication). The controller uses LCD display, optional display interface including Chinese, English, Spanish, Russian, Portuguese, Turkey, Polish and French with easy and reliable operation.



Every electric generator of Starlight is strictly tested before delivery, we can provide factory test report. And you do not need to worry about the maintenance, we can provide operation manual, maintenance and repair manual and we can provide guidance. If you want to buy electric generators, welcome to call us +8613481024441.
