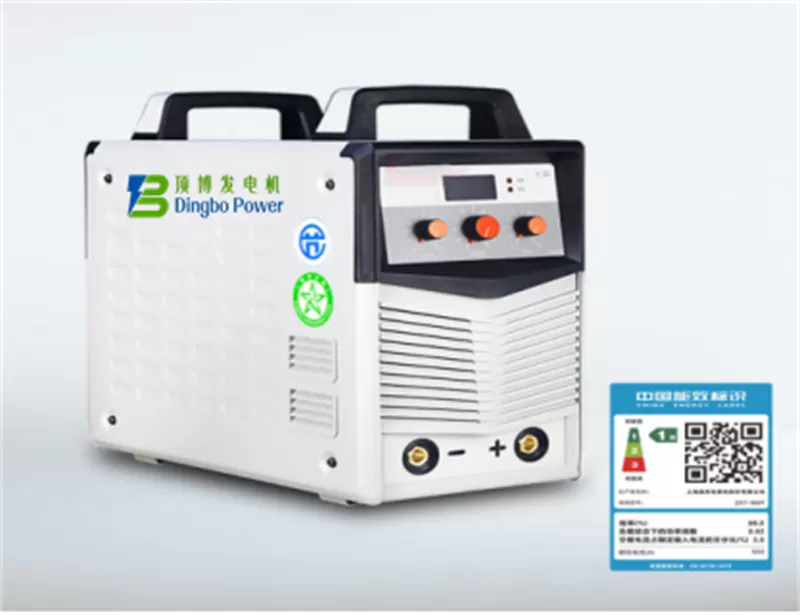

Machine Model:DB-500T
Welding type:Manual welding
Working voltage(V):3~AC380V+10%
Frequency(Hz):50/60HZ
Rated Input Capacity (KVA):32
No load voltage (V):70V
Rated output current (A):40-500A
For more types, please contact us.
Features：
1. Digital 32-bit chip processor with fast computing speed and agile arc dynamic response;
2. The core components adopt dual industrial grade IGBT modules, which have high reliability;
3. Strong output current, with a load duration of 80%, 6.0 welding rod can weld for a long time;
4. When the cable is extended to 200 meters, 5.0 welding rods can still be welded;
5. Simultaneously equipped with anti electric shock, anti sticking strip, thrust, and thermal arc initiation functions, it can easily achieve arc initiation and welding processes.
Technical Specifications:
| Machine Model | DB-500T | |
| Welding type | Manual welding | |
| Working voltage(V)/frequency(Hz) | 3~AC380V+10%/ 50/60HZ | |
| Rated Input Capacity (KVA) | 32 | |
| No load voltage (V) | 70V | |
| Rated output current (A) | 40-500A | |
| Rated output voltage (V) | 40V | |
| Load duration rate at 40 ℃ (%) | 60% | 80% |
| 500A | 460A | |
| Applicable tungsten needle/electrode diameter (mm) | 2-6.0mm | |
| Efficiency (%) | ≥92% | |
| Power factor (cos φ p) | 0.94 | |
| Insulation level | H | |
| degrees of protection provided by enclosure | IP21S | |
| Dimensions (mm) | 557X252X486mm | |
| Host weight (kg) | 23kg | |
