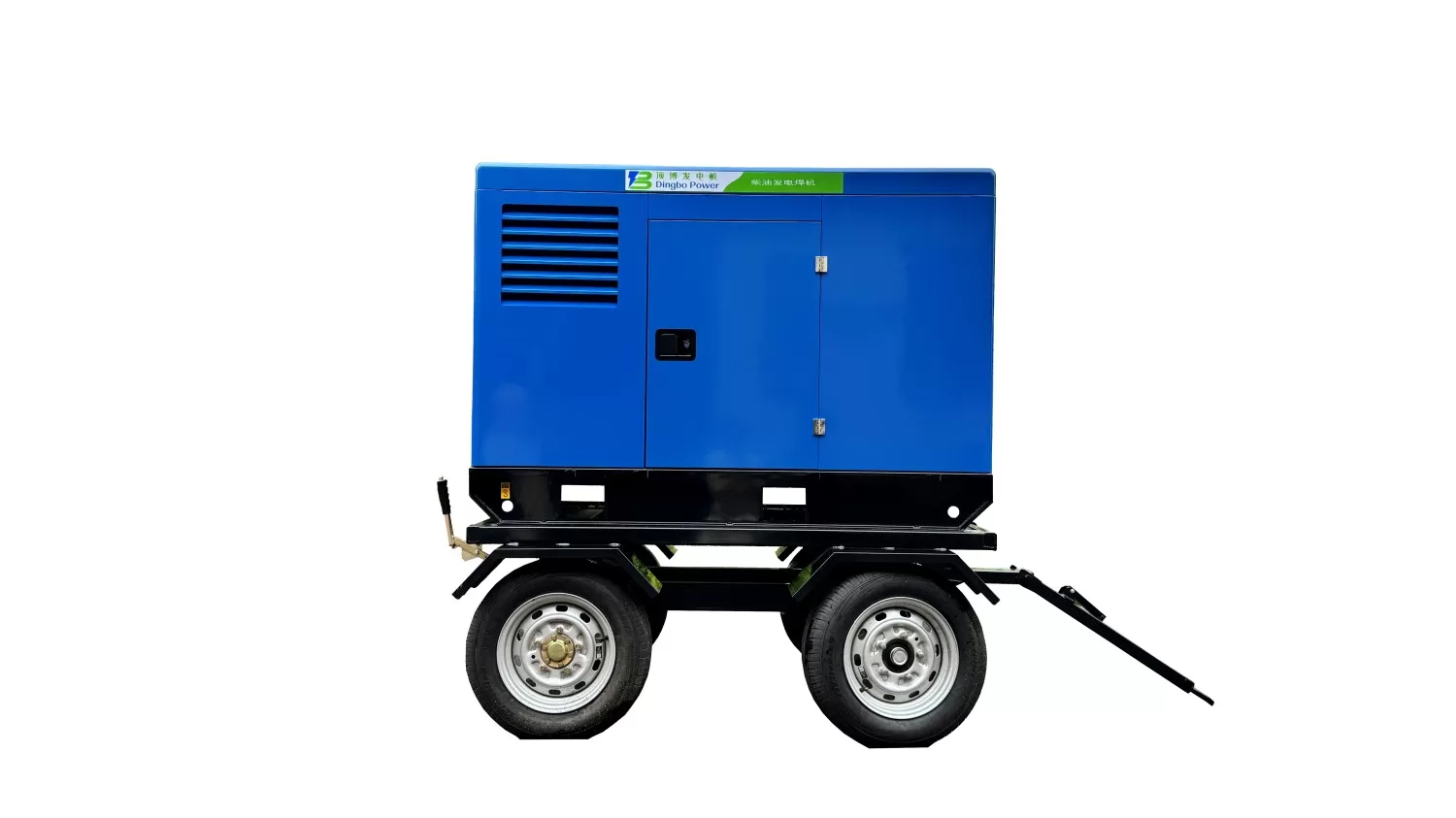

Model No.:DB-AXC-400A
Welding Type: TIG (GTAW),MIG (GMAW)
No Load Voltage: 60-70V
Welding Voltage: 22-28V
Welding Current: 30-400A
Auxiliary Power: AC380V/20KW
Engine Starting Type: Electric Start
Noise Level: 75 dBA/7m
For more types, please contact us.
Product Features:
1. High-performance all-in-one unit
Integrates power generation and welding capabilities to meet both electricity supply and welding demands. Standard TIG/MIG welding functions; customizable welding processes per client requirements.
2. Silent operation & vibration control
Engineered with noise-reduction design and specialized mufflers. Significant noise reduction with negligible vibration during operation.
3. Robust power & stability
Powered by a 4-cylinder water-cooled diesel engine for sustained output and features stable voltage regulation and smooth welding current. Optimized for heavy-duty operations and off-grid environments.
4. Enhanced portability (Optional)
Towable trailer configuration available for mobile outdoor operations.
Technical specifications:
| Model No. | DB-AXC-400A | |
| Welder | Welding Type | TIG (GTAW) MIG (GMAW) |
| NO. of Welding Torch | One&Two | |
| No Load Voltage (V) | 60-70 | |
| Welding Voltage (V) | 22-28 | |
| Welding Current (A) | 30-400 | |
| Load Continuous Rate | 60% | |
| Auxiliary Power | AC380V/20KW | |
| Engine | Engine Model | WP2.3D25E200 |
| Engine Type | 4-Cylinder, Water-cooled, Direct Injection | |
| Bore*Stroke (MM) | 89*92 | |
| Displacement (L) | 2.3 | |
| Starting Type | Electric Start | |
| Oil Capacity (L) | 8 | |
| Welding Generator | Fuel Tank Capacity (L) | 70 |
| Noise Level (dBA/7m) | 75 | |
| Dimensions (mm) (with Canopy/with Trailer) | 1800*900*1100 /2340*1210*1800 | |
| Weight (KG) (with Canopy/with Trailer) | 700/885 | |
