Model No.:DB-AXQ-300A
Welding Type: Manual Arc Welding & TIG Welding
No Load Voltage: 60-70V
Welding Voltage: 22-28V
Welding Current: 40-300A
Auxiliary Power: AC220V&AC380V/10KW
Engine Starting Type: Electric Start
Noise Level: 80dBA/7m
For more types, please contact us.
Product Features:
1. Dual-power output in one unit:
Combines single-phase or three-phase AC output at constant power in one machine.
AC output powers grinding, cutting, lighting, and other tools.
2. Advanced welding performance
Automatic voltage fluctuation compensation and arc force compensation.
Stable welding current with outstanding dynamic response.
Minimal spatter, deep penetration, and rapid arc ignition.
Continuously adjustable welding current with precision control.
3. Industrial-grade applications
Ideal for power utilities, municipal services, chemical plants, water supply systems and gas pipeline construction and so on.
Technical specifications:
| Model No. | DB-AXQ-300A | |
| Welder | Welding Type | Manual Arc Welding & TIG Welding |
| No Load Voltage (V) | 60-70 | |
| Welding Voltage (V) | 22-28 | |
| Welding Current (A) | 40-300 | |
| Load Continuous Rate | 60% | |
| Auxiliary Power | AC220V&AC380V/10KW | |
| Engine | Engine Model | DH720 |
| Engine Type | 2 Cylinders, Air-Cooled, OHV | |
| Bore*Stroke (MM) | 78x70 | |
| Displacement （CC) | 720 | |
| Starting Type | Electric Start | |
| Oil Capacity (L) | 1.6 | |
| Welding Generator | Fuel Tank Capacity (L) | 30 |
| Noise Level (dBA/7m) | 80 | |
| Dimensions (mm) | 1050*615*740 | |
| Weight (KG) | 192 | |

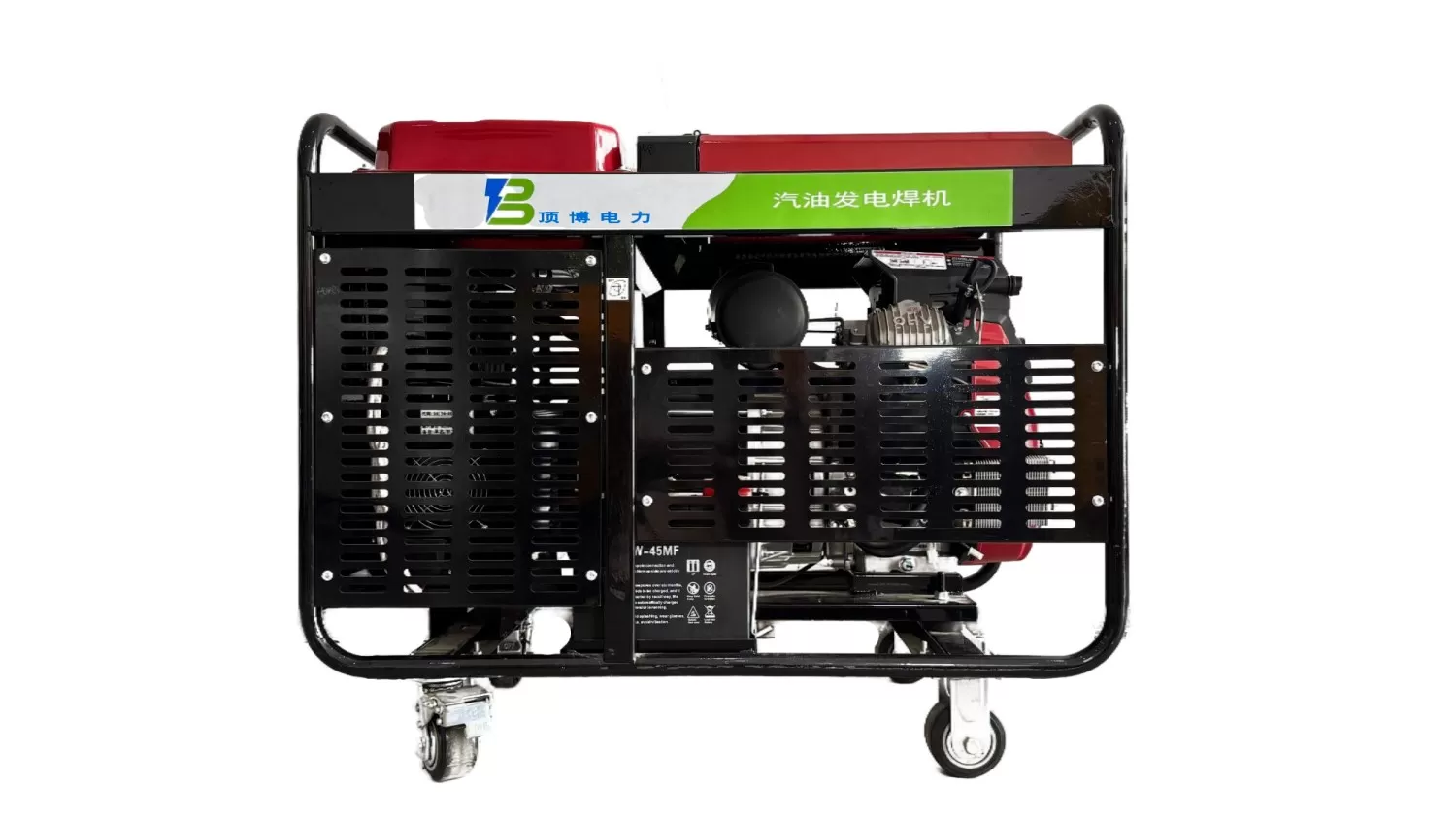

Dingbo Power DB-AXQ-300A is a versatile gasoline engine driven welding generator with up to 300 amps of welding output and 10kW of auxiliary power. It is designed to cater to all skill levels, suitable for a variety of jobsite applications.
