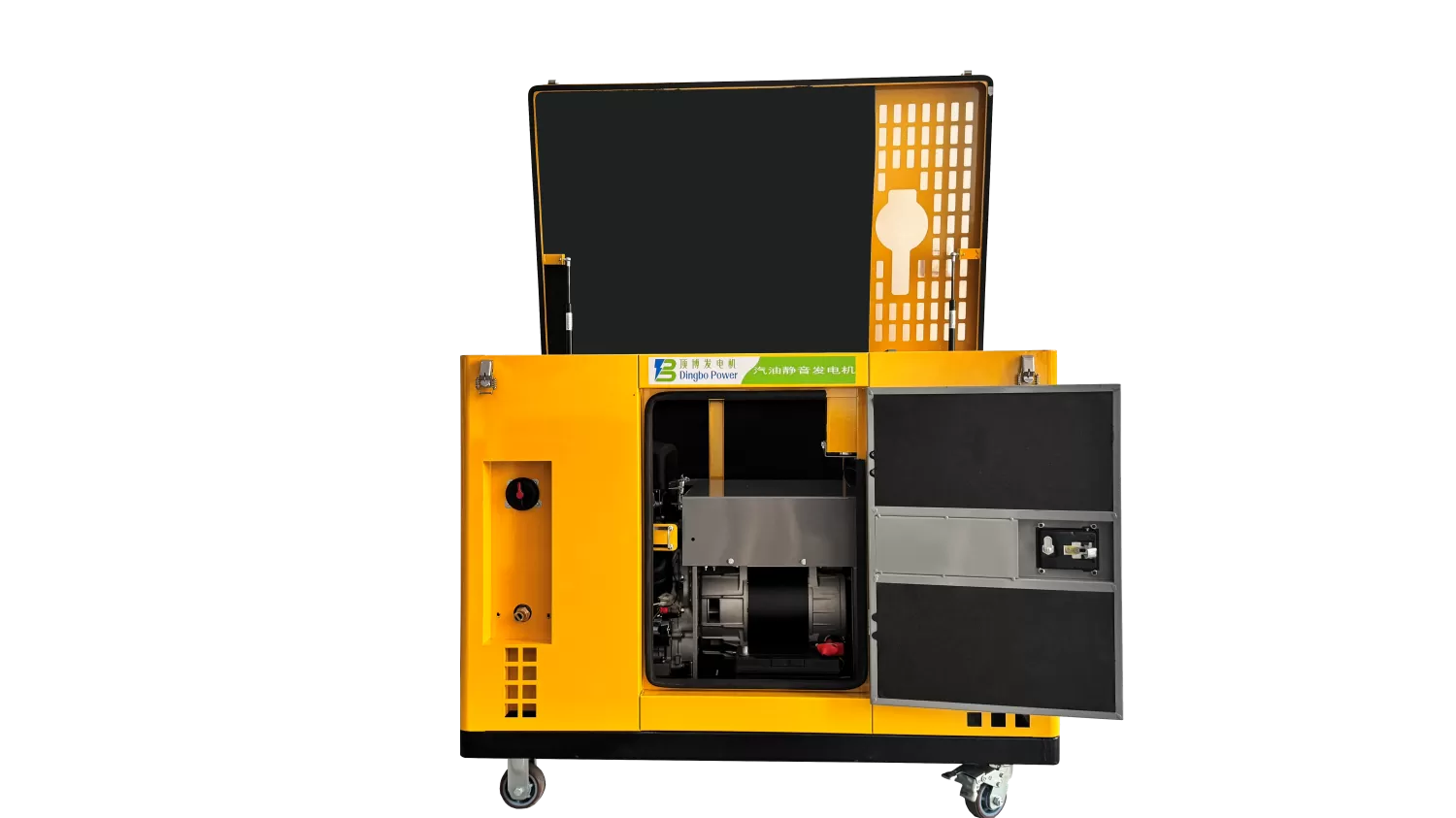

Model: DB15000ES
Type: Silent type
Rated Power Output: 12KW
Rated Voltage: 220/380V
Phase:Single Phase/Three Phase
Rated Frequency: 50Hz
Nosie Level: 75 dBA/7m
Starting Type: Electric Start
For more types, please contact us.
Features:
1. V-type twin-cylinder forced air-cooled engine delivers low emissions and stable performance.
2. Full-copper alternator with AVR automatic voltage regulation offers strong power, reliable excitation and easy maintenance.
3. The heavy-gauge steel frame design makes the generator sturdy and durable and the heavy-duty casters equipped with as standard significantly enhance the generator’s mobility.
4. Overload circuit breaker protection and low-oil shutdown protection.
5. Acoustic-optimized muffler can reduce the noise effectively.
6. Fuel flexibility: Dual-fuel capability (gasoline & natural gas)
Technical specifications:
| Genset Model | DB15000ES | |
| Alternator | Excitation Type | AVR, brush-type self-excitation |
| Prime Power (KW) | 12 | |
| Standby Power (KW) | 13 | |
| Rated Voltage(V) | 220/380 | |
| Frequency (Hz) | 50 | |
| Phase | Single PhaseThree Phase | |
| Power Factor (COSφ) | 1/0.8 | |
| Insulation Class | F | |
| Engine | Engine Model | DH760 |
| Bore*Stroke (MM) | 82*76 | |
| Displacement (CC) | 760 | |
| Engine Type | 2 Cylinder, Air-cooled, OHV | |
| Fuel Type | Gasoline & NG | |
| Oil Capacity (L) | 1.6 | |
| Starting Mode | Electric Start | |
| Genset | Fuel Tank (L) | 30 |
| Noise Level (dB(A)/7M) | 75 | |
| Dimensions (MM) | 1300*800*930 | |
| Weight (KG) | 275 | |
