The DB15000E 12KW Gasoline & Natural Gas Generator is a high-performance dual-fuel power solution designed for versatile applications. It delivers 12kW rated power and 13kW standby power, supporting both 220V single-phase and 380V three-phase outputs to meet different power demands. With a 40L fuel tank, electric start system, and compact design, it is ideal for home backup, construction sites, outdoor events, and emergency power supply scenarios.
Excitation type: AVR Brush-type Self-excited
Prime power(kW): 12
Standby power(kW): 13
Rated voltage (V): 220/380
Frequency(Hz): 50
Phase: single phase, three phase
Insulation Class: F
Power Factor(COSφ): 1/0.8
For more types, please contact us.
Introduction:

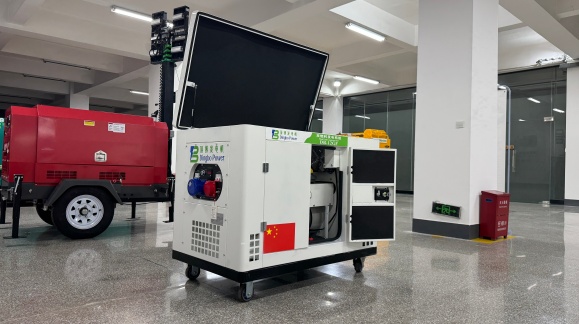

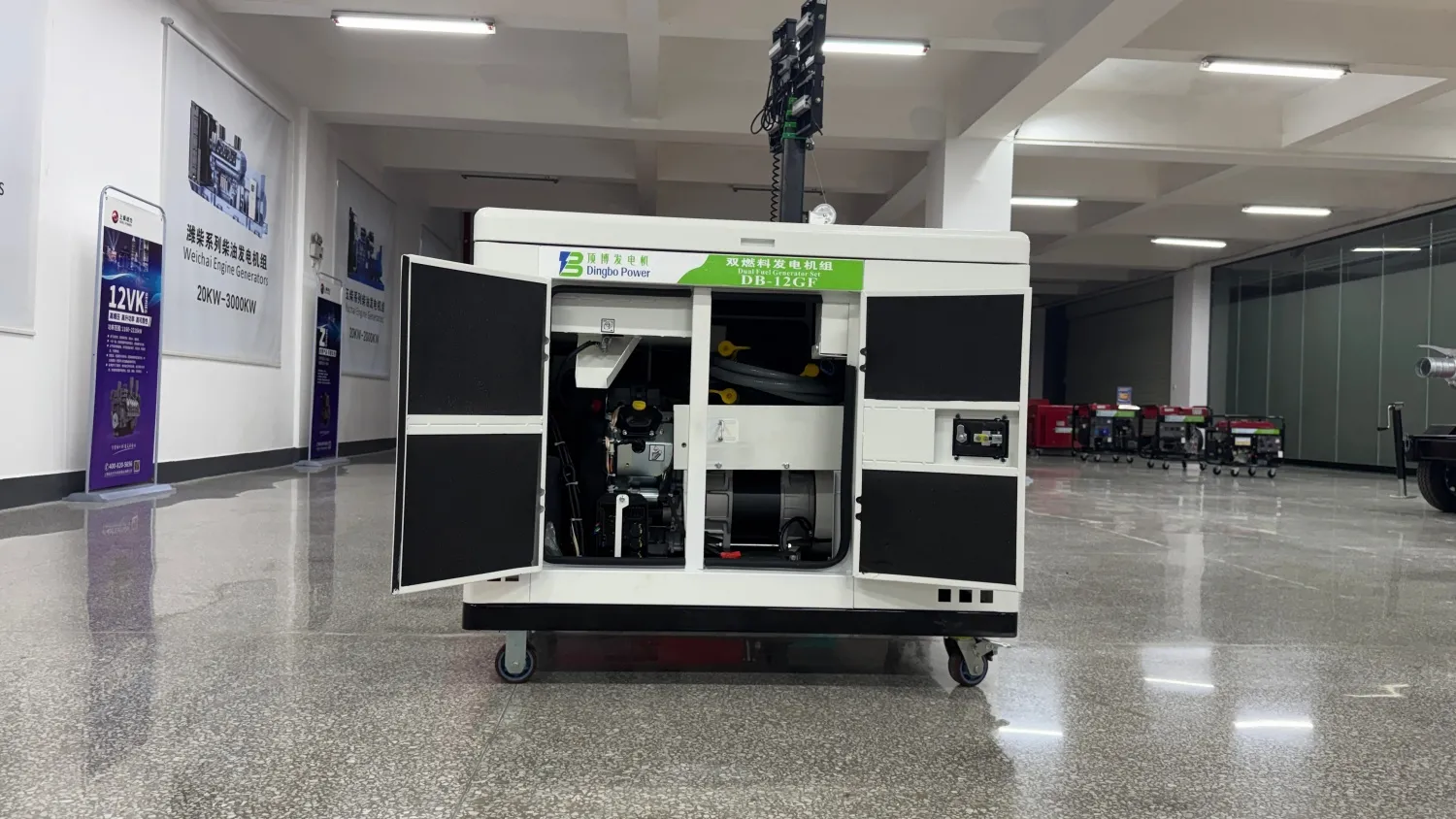

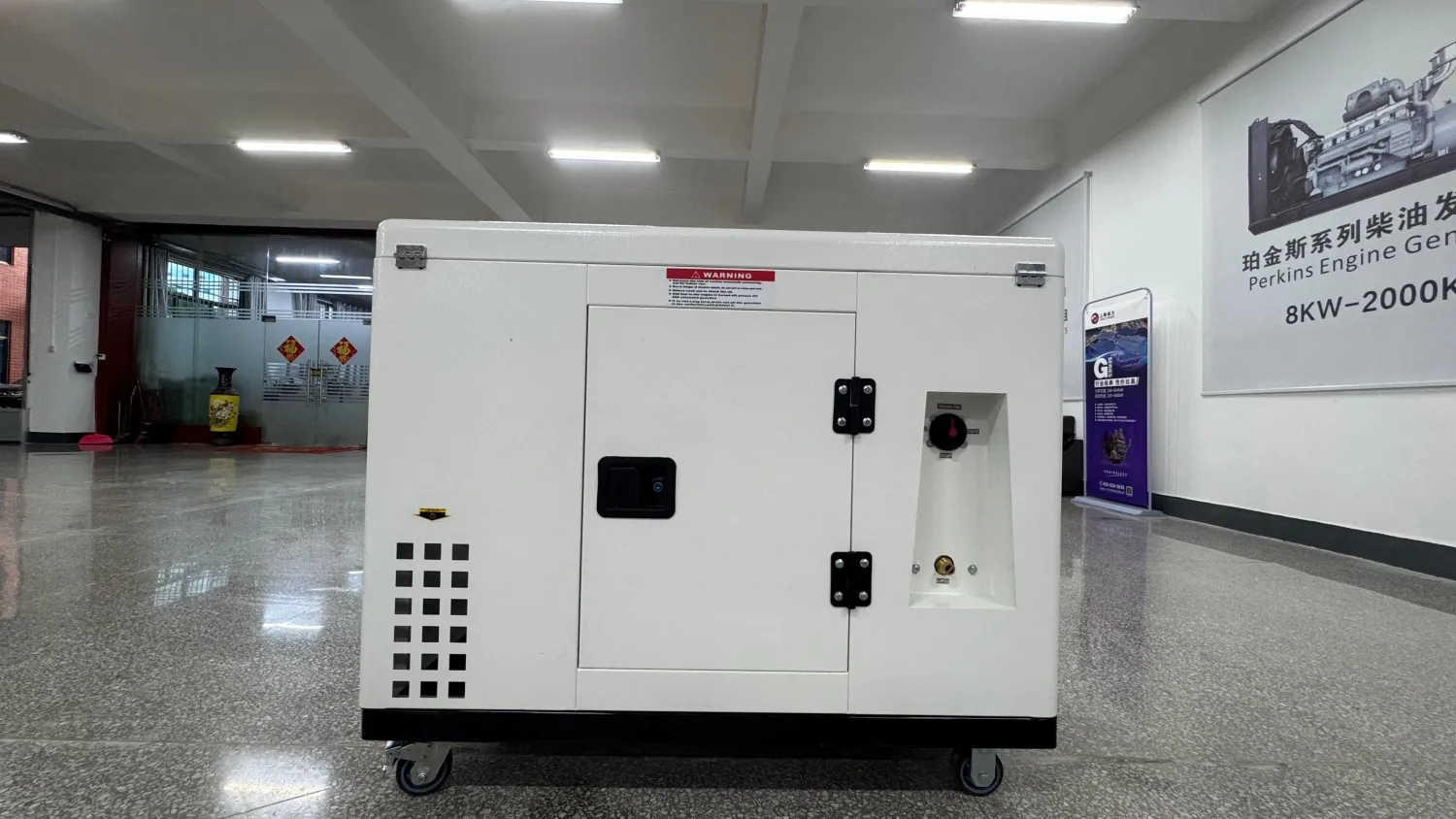

The DB15000E 15KVA Gasoline & Natural Gas Generator is a dual‑fuel, high‑power genset designed for reliable, flexible power supply in various scenarios. It features 12kW rated power and 13kW standby power, supporting both 220V single‑phase and 380V three‑phase outputs with 50Hz frequency, meeting different load requirements. The unit is equipped with an AVR brush‑type self‑excited alternator, ensuring stable voltage output for sensitive equipment.

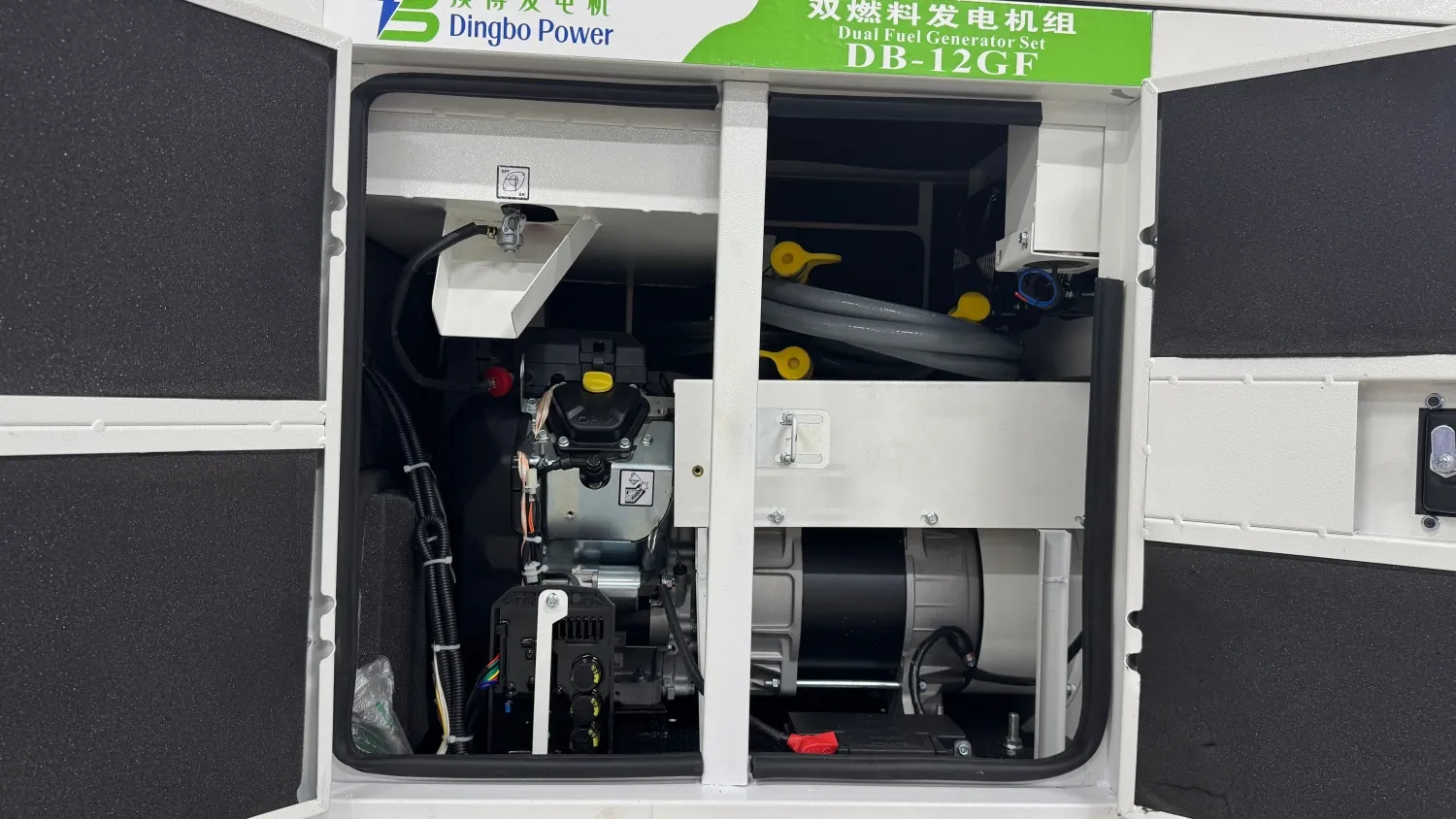

Powered by a 2‑cylinder air‑cooled OHV engine (model DHT760, 760cc displacement), this generator runs on both gasoline and natural gas for added flexibility. It includes a 40L large fuel tank, electric start system, and F‑class insulation for safety and durability. With a compact size of 960×620×650mm, 180kg weight, and 75~83dBA noise level at 7 meters, it is easy to transport and suitable for home backup power, construction sites, outdoor events, and emergency power needs.
Advantages:
The advantages of DB-12GF 12kW 15kVA Gasoline & Natural Gas Generator:
Dual-fuel Flexibility:
Runs on both gasoline and natural gas, offering flexible fuel options to suit different environments and costs.
Stable & Versatile Output:
Delivers 12kW rated / 13kW standby power, supporting 220V single-phase and 380V three-phase outputs for various equipment.
Reliable Power System:
Features AVR brush-type self-excitation and F-class insulation, ensuring stable voltage and safe operation.
Durable Engine Performance:
2-cylinder air-cooled OHV engine provides strong power with low fuel consumption and easy maintenance.
User-friendly Design:
Electric start, 40L large fuel tank, and compact size make it easy to use and transport for home backup, construction, and emergencies.
Technical Parameters:
| 12KW Gasoline&NG Generator | ||
| Genset Model | DB15000E | |
| Alternator | Excitation Type | AVR Brush-type Self-excited |
| Prime Power (KW) | 12 | |
| Standby Power (KW) | 13 | |
| Rated Voltage(V) | 220/380 | |
| Frequency (Hz) | 50 | |
| Phase | Single Phase, Three Phase | |
| Power Factor (COSφ) | 1/0.8 | |
| Insulation Class | F | |
| Engine | Engine Model | DHT760 |
| Bore*Stroke (MM) | 82*72 | |
| Displacement (CC) | 760 | |
| Engine Type | 2 Cylinder, air-cooled, OHV | |
| Fuel | Gasoline&NG | |
| Fuel Consumption（L/m³） | 7.8 | |
| Oil Capacity (L) | 1.5 | |
| Starting | Electric Start | |
| Genset | Fuel Tank (L) | 40 |
| Noise (Dba/7M) | 83 | |
| Size (MM) | 960*620*650 | |
| Weight (KG) | 180 | |
Appilcations:
The applications of this DB-12GF 12kW 15kVA Gasoline & Natural Gas Generator:
Home Backup Power:
Provides reliable electricity during blackouts for household appliances, lighting, and essential equipment.
Construction Sites:
Powers tools, lighting, and temporary equipment on job sites without grid access.
Outdoor Events & Activities:
Supports camping, outdoor gatherings, and mobile setups with stable dual-fuel power.
Emergency & Disaster Relief:
Delivers quick power for emergency response, rescue operations, and remote areas.
Small Business & Retail:
Ideal for small shops, offices, and remote operations needing backup or off-grid power.
Why choose Dingbo Power 15kVA Gasoline & Natural Gas Generator?
Dingbo Power is a professional manufacturer with rich experience in power equipment. We focus on stable performance, strict quality control, and reliable materials to ensure every generator runs safely and durably. We provide complete models, stable voltage output, easy operation, low noise, and long service life. With factory direct price, customized solutions, and professional after-sales support, we offer cost-effective power solutions for global customers.
