Distribution System of Silent Diesel Generator Set

Jan. 11, 2023

The power distribution output of the mute diesel generator set circuit is output through the molded case air switch matching the capacity of the mute diesel generator set at the side of the mute diesel generator set. The air switch is located in the air switch cover at the side of the mute diesel generator set and can be directly operated by hand to close and open. The purpose of the air switch is to protect the alternator of the silent diesel generator set from being damaged by overload current operation or other abnormal impacts. The air switch has high breaking capacity and fault automatic tripping capacity. When the user conducts power connection, he can directly lead the power cable from the lower end of the air switch to his own load.

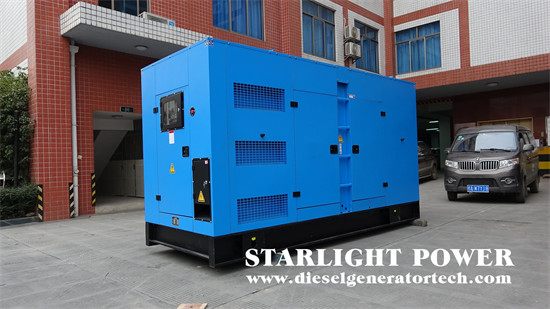

generator silent type


The distribution output of silent diesel generator set adopts three-phase five wire system, that is, three-phase live wire, one central wire and one safety ground wire, that is, the central wire and the big ground wire are not connected. Users can choose three-phase four wire system for power output according to their own power distribution requirements, that is, the central wire is connected with the earth to solve the false image that the central wire is sometimes electrified. When installing the power distribution output of the mute diesel generator set, the user shall configure the cable with safe current carrying capacity to generate the outgoing line panel or parallel panel, and ensure that the phase sequence of the power generation output is correct.


There is no molded case air switch in the air switch cover of the high-power silent diesel generator set or the parallel silent diesel generator set, which forms a set of power generation outgoing line panel or the parallel panel. The power generation output control protection is replaced by the main circuit breaker of the silent diesel generator set in the above panel.


It is precisely because of the existence of silent diesel generator sets that the stable development of industry and agriculture is guaranteed in any case of power shortage. The good adaptability of silent diesel generator sets makes the sales of silent diesel generator sets increase year by year. Many people are also very optimistic about the prospects of silent diesel generator sets.


Jiangsu Starlight Power Generation Equipment Co., Ltd. was founded in 1974 and is one of the earliest manufacturers of generators and diesel generator sets in China. The company has a registered capital of 218.88 million yuan. The company covers an area of 86,000 square meters and a building area of 55,000 square meters. There are more than 660 employees, including 456 professional technicians and 106 senior technicians. It has 46 sales and service outlets nationwide. The main products are diesel engines, generator sets, and diesel generators, providing users with a one-stop service of design, supply, debugging and maintenance at any time. Starlight has always insisted on using first-class talents, building first-class enterprises, manufacturing first-class products, creating first-class services, and making every effort to build a first-class domestic enterprise. If any question please feel free to visit our website https://www.dieselgeneratortech.com/ or send email to sales@dieselgeneratortech.com.
